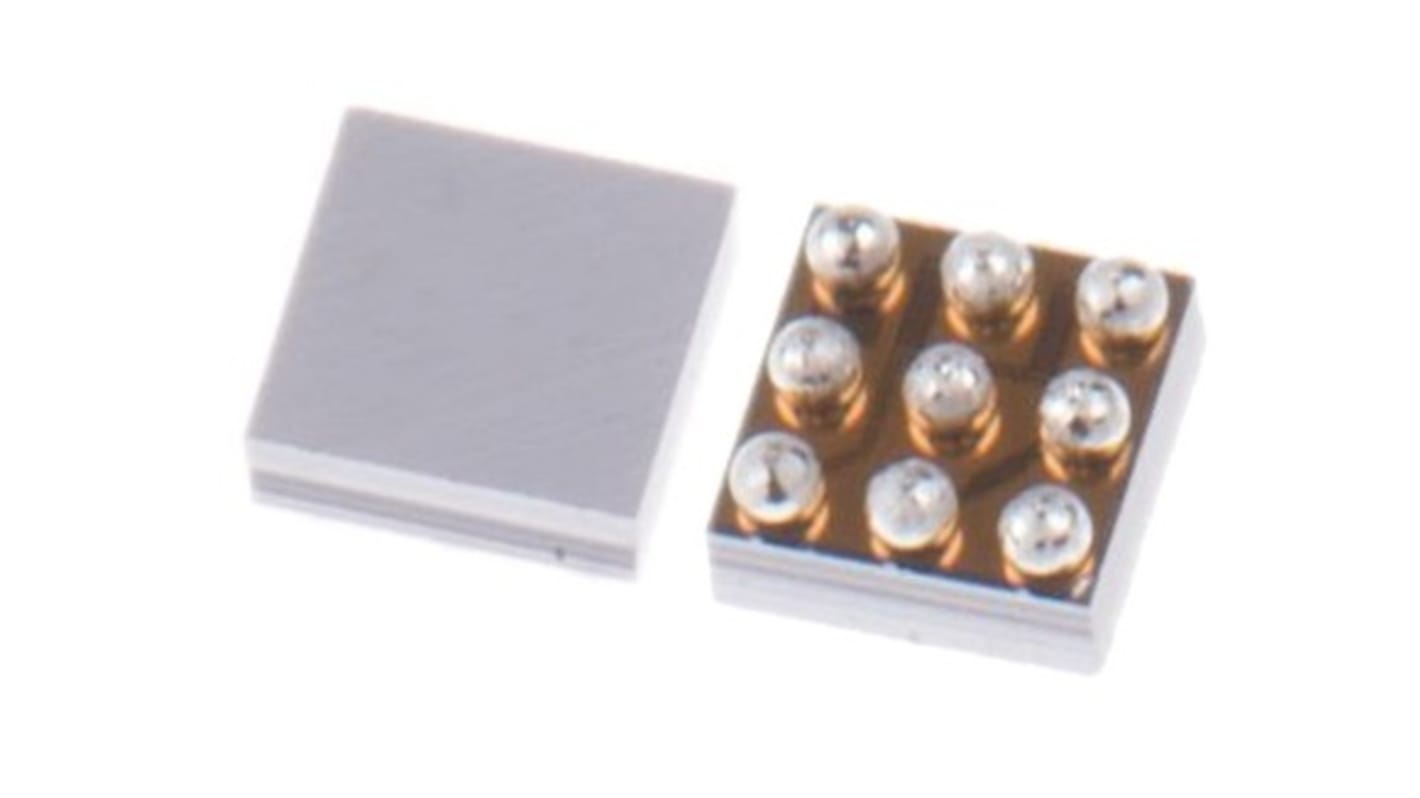

Renesas Electronics, 1-Channel Buck Boost, Voltage Regulator, 800 mA, 3.3 V, WLCSP 9-Pin
- RS Stock No.:
- 264-0673
- Mfr. Part No.:
- ISL9120IIAZ-T
- Brand:
- Renesas Electronics
Subtotal (1 reel of 3000 units)*
£1,872.00
(exc. VAT)
£2,247.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.624 | £1,872.00 |
*price indicative
- RS Stock No.:
- 264-0673
- Mfr. Part No.:
- ISL9120IIAZ-T
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Product Type | Voltage Regulator | |
| Regulator Type | Buck Boost | |
| Number of Outputs | 1 | |
| Output Voltage | 3.3 V | |
| Quiescent Current | 41μA | |
| Package Type | WLCSP | |
| Pin Count | 9 | |
| Output Current | 800mA | |
| Output Type | Fixed, Adjustable | |
| Switching Regulator | Yes | |
| Standards/Approvals | RoHS, IPC/JEDEC J STD-020 | |
| Series | ISL9120 | |
| Maximum Input Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Minimum Input Voltage | 1.8V | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Product Type Voltage Regulator | ||
Regulator Type Buck Boost | ||
Number of Outputs 1 | ||
Output Voltage 3.3 V | ||
Quiescent Current 41μA | ||
Package Type WLCSP | ||
Pin Count 9 | ||
Output Current 800mA | ||
Output Type Fixed, Adjustable | ||
Switching Regulator Yes | ||
Standards/Approvals RoHS, IPC/JEDEC J STD-020 | ||
Series ISL9120 | ||
Maximum Input Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Minimum Input Voltage 1.8V | ||
Automotive Standard No | ||
The Renesas Electronics voltage regulators is a highly integrated buck-boost switching regulator that accepts input voltages either above or below the regulated output voltage. This regulator automatically transitions between buck and boost modes without significant output disturbance.
Automatic bypass mode functionality
Automatic and seamless transitions
High efficiency
