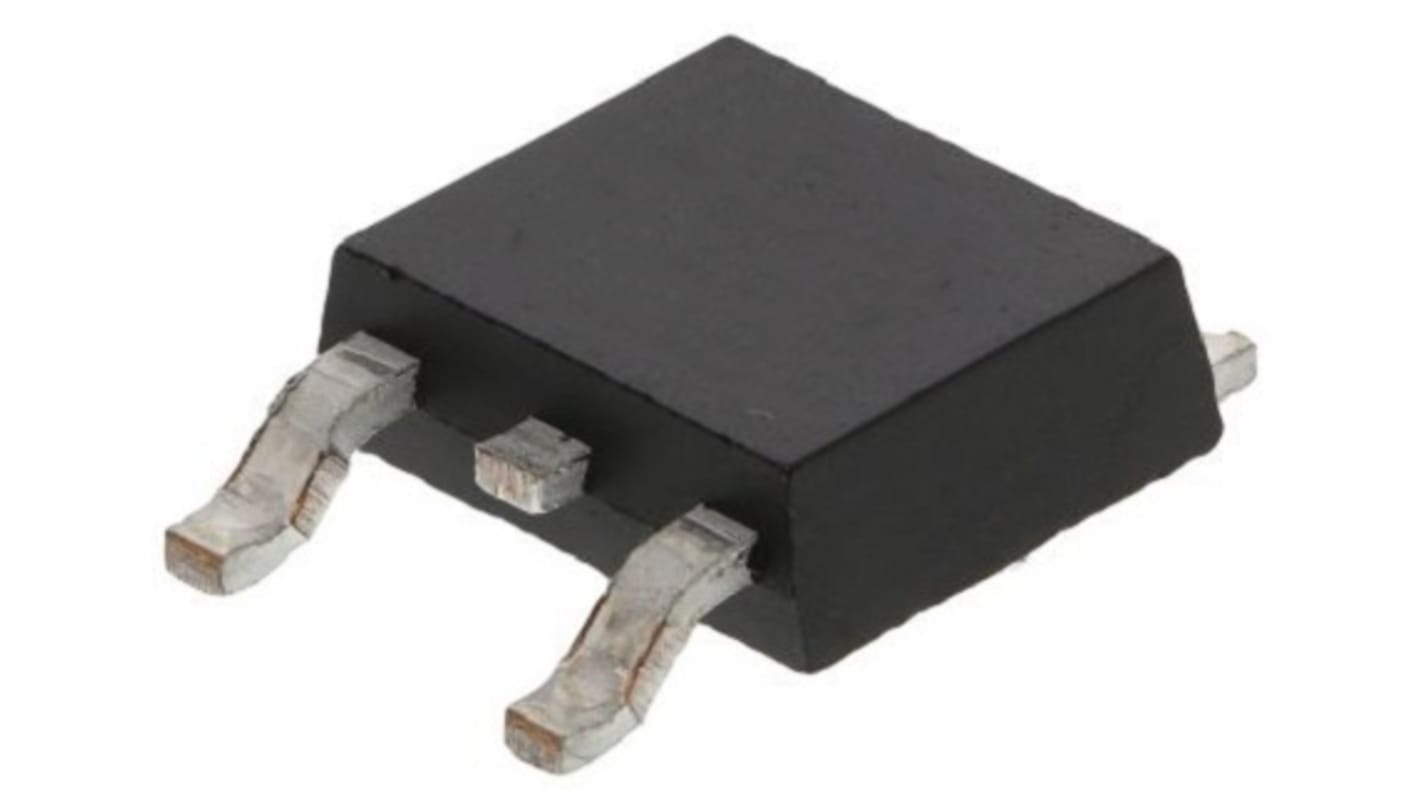

Nisshinbo Micro Devices NJM7812DL1A-TE1, 1-Channel Linear Voltage, Voltage Regulator, 1.5 A, 12 V, TO-252-3-L1 3-Pin

View all Voltage Regulators
Bulk discount available

Subtotal (1 pack of 5 units)*

£8.95

(exc. VAT)

£10.75

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 2,555 unit(s) shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 5£1.79£8.95
10 - 95£1.70£8.50
100 - 245£1.614£8.07
250 - 495£1.536£7.68
500 +£1.458£7.29

*price indicative

Packaging Options:
RS Stock No.:
244-4527
Mfr. Part No.:
NJM7812DL1A-TE1
Brand:
Nisshinbo Micro Devices
Find similar products by selecting one or more attributes.
Select all

Brand

Nisshinbo Micro Devices

Regulator Type

Linear Voltage

Product Type

Voltage Regulator

Number of Outputs

1

Output Voltage

12 V

Line Regulation

240 mV

Load Regulation

240 mV

Mount Type

Surface

Quiescent Current

6mA

Package Type

TO-252-3-L1

Pin Count

3

Output Current

1.5A

Standards/Approvals

RoHS

Series

NJM7800

Maximum Input Voltage

40V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Minimum Input Voltage

35V

Automotive Standard

No

The New Japan Radio NJM7800 series are 3 terminal positive voltage regulators constructed using the New JRC Planar epitaxial process. These regulators employs internal current limiting and thermal shut down, making it essentially indestructible. If adequate heat sinking is provided, it can deliver up to 1A output current. They are intended as fixed voltage regulators in a wide range of applications including local regulation for elimination of distribution problems associated with single point regulation. In addition to use as fixed voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents.

Internal Short Circuit Current Limit

Internal Thermal Overload Protection

Excellent Ripple Rejection

Guaranteed 1.5A Output Current
