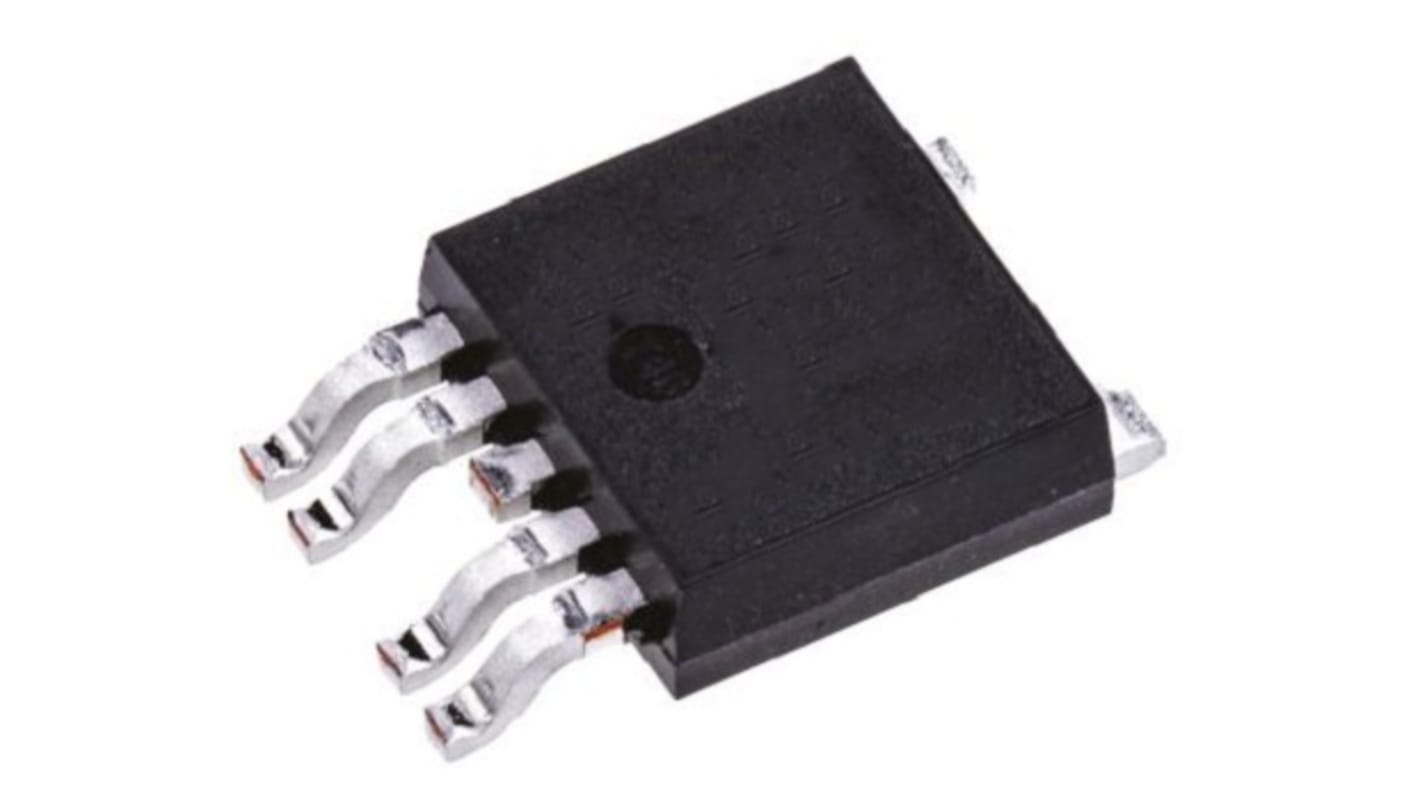

Nisshinbo Micro Devices, 1-Channel Low Dropout Voltage, LOD Voltage Regulator, 500 mA, 3.3 V, SOT-89-5 5-Pin
- RS Stock No.:
- 244-4502
- Mfr. Part No.:
- NJM2884ADL3-33-TE1
- Brand:
- Nisshinbo Micro Devices
Subtotal (1 reel of 3000 units)*
£1,095.00
(exc. VAT)
£1,314.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.365 | £1,095.00 |
*price indicative
- RS Stock No.:
- 244-4502
- Mfr. Part No.:
- NJM2884ADL3-33-TE1
- Brand:
- Nisshinbo Micro Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nisshinbo Micro Devices | |
| Product Type | LOD Voltage Regulator | |
| Regulator Type | Low Dropout Voltage | |
| Number of Outputs | 1 | |
| Output Voltage | 3.3 V | |
| Line Regulation | 0.1 %/V | |
| Mount Type | Surface | |
| Package Type | SOT-89-5 | |
| Quiescent Current | 300μA | |
| Pin Count | 5 | |
| Output Current | 500mA | |
| Series | NJM2884 | |
| Standards/Approvals | RoHS | |
| Minimum Input Voltage | 2.3V | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Maximum Input Voltage | 10V | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nisshinbo Micro Devices | ||
Product Type LOD Voltage Regulator | ||
Regulator Type Low Dropout Voltage | ||
Number of Outputs 1 | ||
Output Voltage 3.3 V | ||
Line Regulation 0.1 %/V | ||
Mount Type Surface | ||
Package Type SOT-89-5 | ||
Quiescent Current 300μA | ||
Pin Count 5 | ||
Output Current 500mA | ||
Series NJM2884 | ||
Standards/Approvals RoHS | ||
Minimum Input Voltage 2.3V | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
Maximum Input Voltage 10V | ||
Automotive Standard No | ||
The New Japan Radio NJM2884A is a low dropout voltage regulator with ON/OFF control. It has advanced bipolar technology which achieves low noise, high ripple rejection and low quiescent current. It is suitable for audio or video and PC related applications.
High Ripple Rejection 75dB typ
Low Output Noise Voltage
Output capacitor with 2.2μF ceramic capacitor
High Precision Output
Low Dropout Voltage 0.18V typ
ON/OFF Control Function
Internal Thermal Overload Protection
Internal Short Circuit Current Limit
Bipolar Technology
