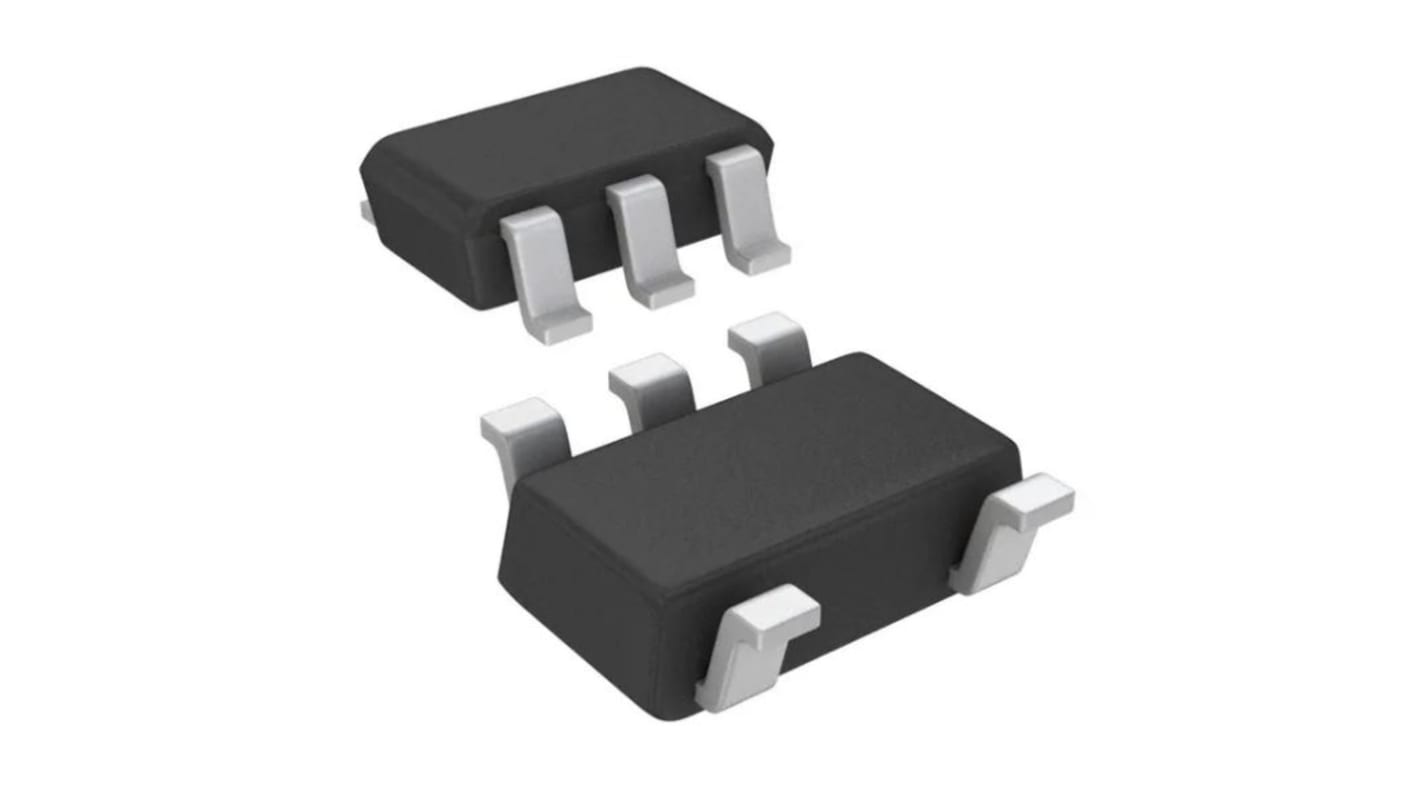

STMicroelectronics LDK320M-R Low Dropout Voltage, Voltage Regulator 200mA, 1.2 - 12 V

View all Voltage Regulators

Subtotal (1 reel of 3000 units)*

£1,065.00

(exc. VAT)

£1,278.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 +£0.355£1,065.00

*price indicative

RS Stock No.:
239-6293
Mfr. Part No.:
LDK320M-R
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Regulator Function

Current Limiting, SOA Control, Thermal Shut Down

Regulator Type

Low Dropout Voltage

Maximum Output Current

200mA

Output Voltage

1.2 - 12 V

Line Regulation

0.05 %/V

Accuracy

±3%

Load Regulation

0.001 %/mA

The STMicroelectronics Voltage regulator is a low drop voltage regulator, which provides a maximum output current of 200 mA from an input voltage in the range of 2.5 V to 18 V, with a typical dropout voltage of 100 mV. It is stabilized with a ceramic capacitor on the output.

Input voltage from 2.5 to 18 V
Very low-dropout voltage 100 mV typical at 100 mA load
Low quiescent current typical 60 μA, 1 μA in off mode
High PSRR of 88 dB at 120 Hz
Low noise
Output current up to 200 mA
Logic-controlled electronic shutdown
Compatible with ceramic capacitor COUT = 1 μF
Current, SOA and thermal protections
Temperature range between -40 °C to 125 °C
