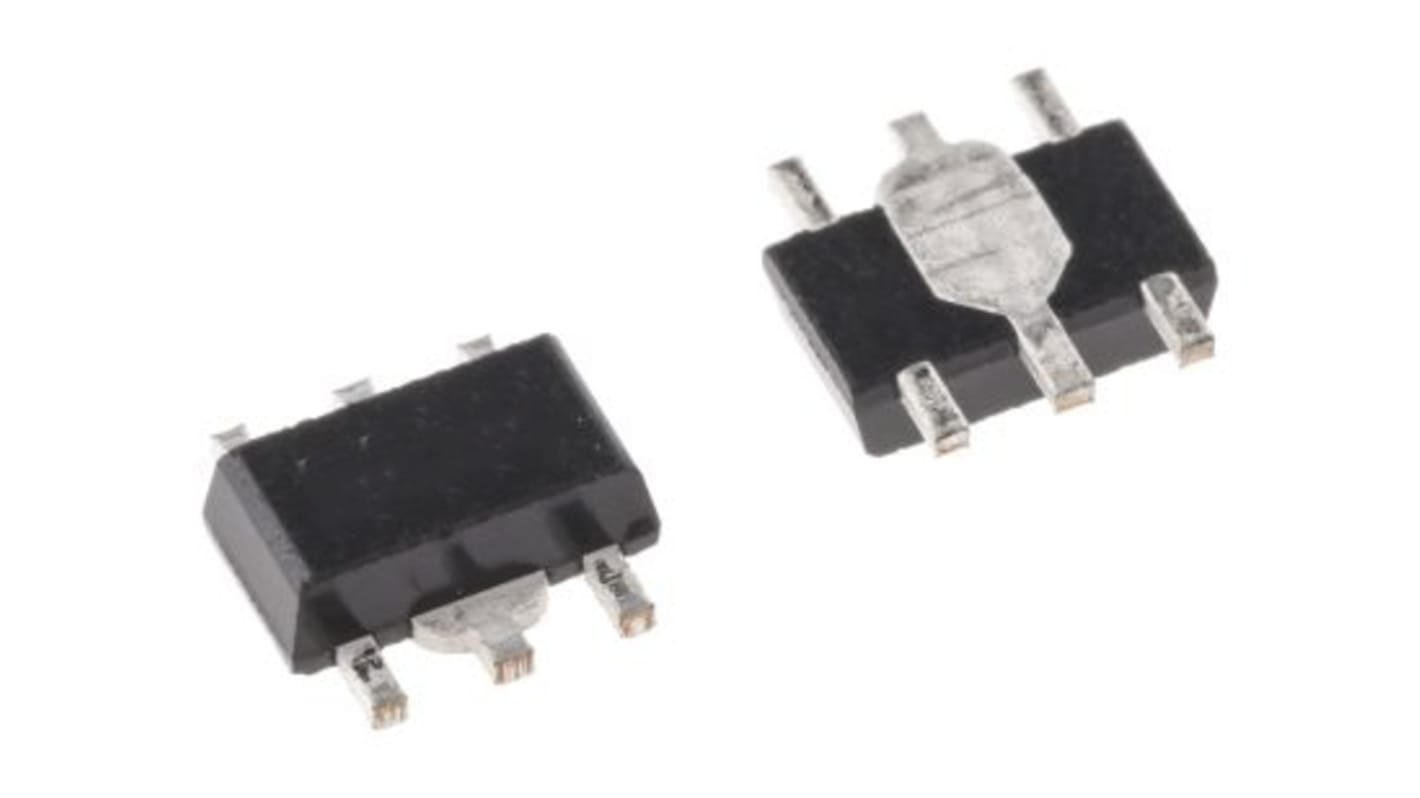

STMicroelectronics LDK320AM50R, 1 Low Noise LDO, Voltage Regulator 200mA 5-Pin, SOT-89
- RS Stock No.:
- 233-3007
- Mfr. Part No.:
- LDK320AM50R
- Brand:
- STMicroelectronics
Subtotal (1 reel of 3000 units)*
£1,011.00
(exc. VAT)
£1,212.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
3000 + | £0.337 | £1,011.00 |
*price indicative
- RS Stock No.:
- 233-3007
- Mfr. Part No.:
- LDK320AM50R
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Regulator Function | LDO | |
Maximum Output Current | 200mA | |
Regulator Type | Low Noise LDO | |
Number of Outputs | 1 | |
Accuracy | 0.5% | |
Package Type | SOT-89 | |
Pin Count | 5 | |
Output Type | Fixed | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Regulator Function LDO | ||
Maximum Output Current 200mA | ||
Regulator Type Low Noise LDO | ||
Number of Outputs 1 | ||
Accuracy 0.5% | ||
Package Type SOT-89 | ||
Pin Count 5 | ||
Output Type Fixed | ||
The STMicroelectronics LDK320 is a low drop voltage regulator, which provides a maximum output current of 200 mA from an input voltage in the range of 2.5 V to 18 V, with a typical dropout voltage of 100 mV. It is stabilized with a ceramic capacitor on the output. The very good dynamic characteristic, combined with low drop voltage and low quiescent current make it suitable for low power battery-powered applications. The enable logic control function allows the LDK320 to be in shutdown mode by consuming a total current lower than 1 μA.This device also includes a short-circuit current limiting, thermal and SOA protections.
Input voltage from 2.5 to 18 V
Very low-dropout voltage (100 mV typ. @ 100 mA load)
Low quiescent current (typ. 60 μA, 1 μA in off mode)
High PSRR: 88 dB@120 Hz
Very low-dropout voltage (100 mV typ. @ 100 mA load)
Low quiescent current (typ. 60 μA, 1 μA in off mode)
High PSRR: 88 dB@120 Hz
