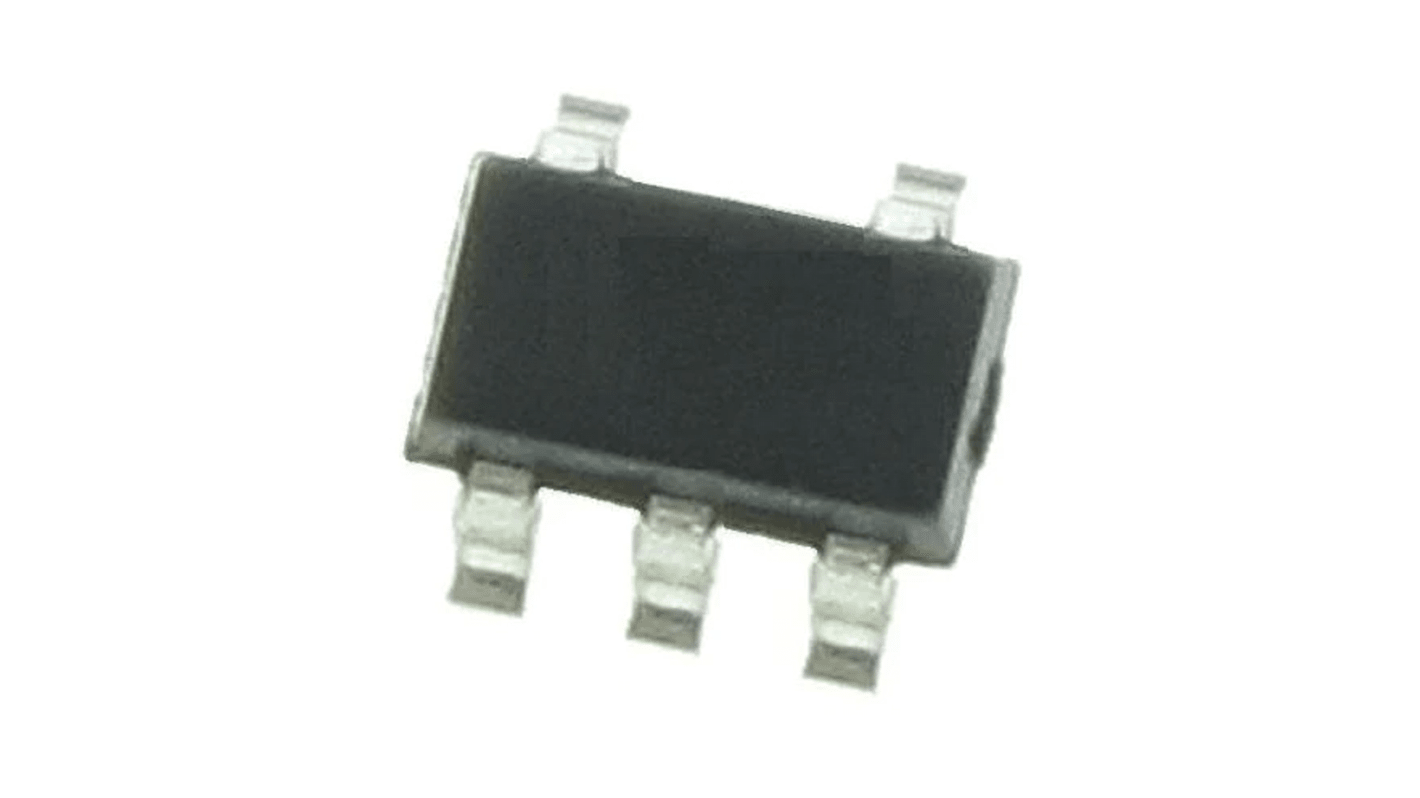

onsemi, 1-Channel Low Noise LDO, Voltage Regulator, 300 mA, 2.8 V, TSOP-5 5-Pin
- RS Stock No.:
- 214-8830
- Mfr. Part No.:
- NCP164ASN280T1G
- Brand:
- onsemi
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 214-8830
- Mfr. Part No.:
- NCP164ASN280T1G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Regulator Type | Low Noise LDO | |
| Product Type | Voltage Regulator | |
| Output Voltage | 2.8 V | |
| Number of Outputs | 1 | |
| Load Regulation | 2 mV | |
| Polarity | Positive | |
| Mount Type | Surface | |
| Package Type | TSOP-5 | |
| Quiescent Current | 30μA | |
| Pin Count | 5 | |
| Output Current | 300mA | |
| Output Type | Fixed | |
| Switching Regulator | No | |
| Series | NCP164 | |
| Standards/Approvals | RoHS | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Maximum Input Voltage | 5.5V | |
| Minimum Input Voltage | 1.6V | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Regulator Type Low Noise LDO | ||
Product Type Voltage Regulator | ||
Output Voltage 2.8 V | ||
Number of Outputs 1 | ||
Load Regulation 2 mV | ||
Polarity Positive | ||
Mount Type Surface | ||
Package Type TSOP-5 | ||
Quiescent Current 30μA | ||
Pin Count 5 | ||
Output Current 300mA | ||
Output Type Fixed | ||
Switching Regulator No | ||
Series NCP164 | ||
Standards/Approvals RoHS | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Maximum Input Voltage 5.5V | ||
Minimum Input Voltage 1.6V | ||
Automotive Standard AEC-Q100 | ||
The ON Semiconductor NCP164 is a 300 mA LDO, next generation of high PSRR, ultra−low noise and low dropout regulators with power good open collector output. It is designed to meet the requirements of RF and sensitive analogue circuits.
Ultra high PSRR
Ultra low noise
Offers excellent load/line transients
