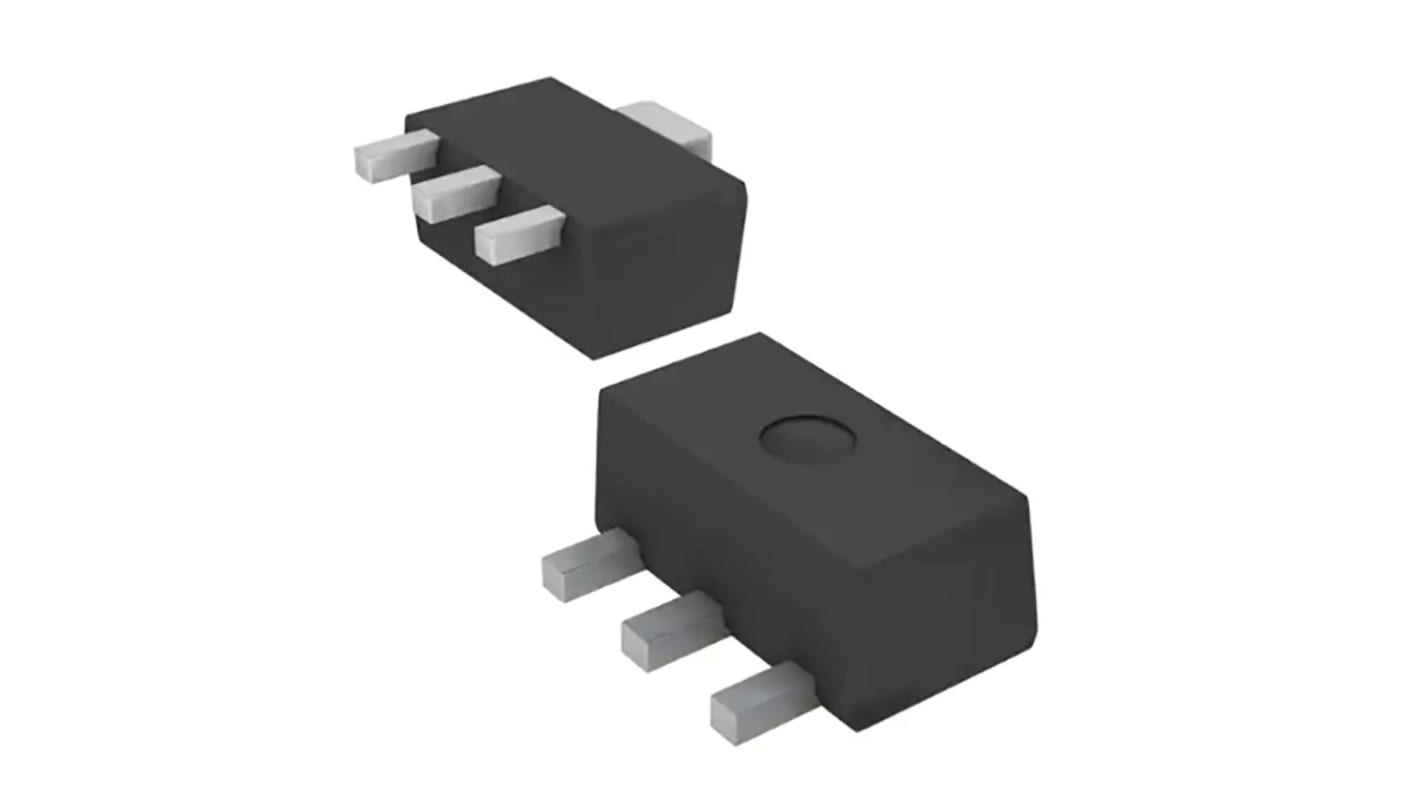

DiodesZetex AP7370-33Y-13, 5-Channel Low Dropout Voltage, Voltage Regulator, 500 mA, 3.3 V, SOT-89 3-Pin

View all Voltage Regulators
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
206-0237
Mfr. Part No.:
AP7370-33Y-13
Brand:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

Regulator Type

Low Dropout Voltage

Product Type

Voltage Regulator

Output Voltage

3.3 V

Number of Outputs

5

Line Regulation

0.05 %/V

Load Regulation

0.5 %

Mount Type

Surface

Polarity

Positive

Quiescent Current

4μA

Package Type

SOT-89

Pin Count

3

Output Current

500mA

Output Type

Fixed

Switching Regulator

No

Series

AP7370

Standards/Approvals

RoHS

Maximum Operating Temperature

125°C

Maximum Input Voltage

18V

Minimum Operating Temperature

-40°C

Minimum Input Voltage

3.2V

Automotive Standard

AEC-Q200, AEC-Q101, AEC-Q100

COO (Country of Origin):
CN
The DiodesZetex AP7370 series is a positive voltage regulator IC which has wide input voltage range, high accuracy, low dropout voltage, current limit, reverse current protection, and ultra-low quiescent current. It has 3.3 V of output voltage which using SOT89 package and has 3 pin.

Low ground current

High output voltage accuracy

Compatible with low ESR ceramic capacitor
