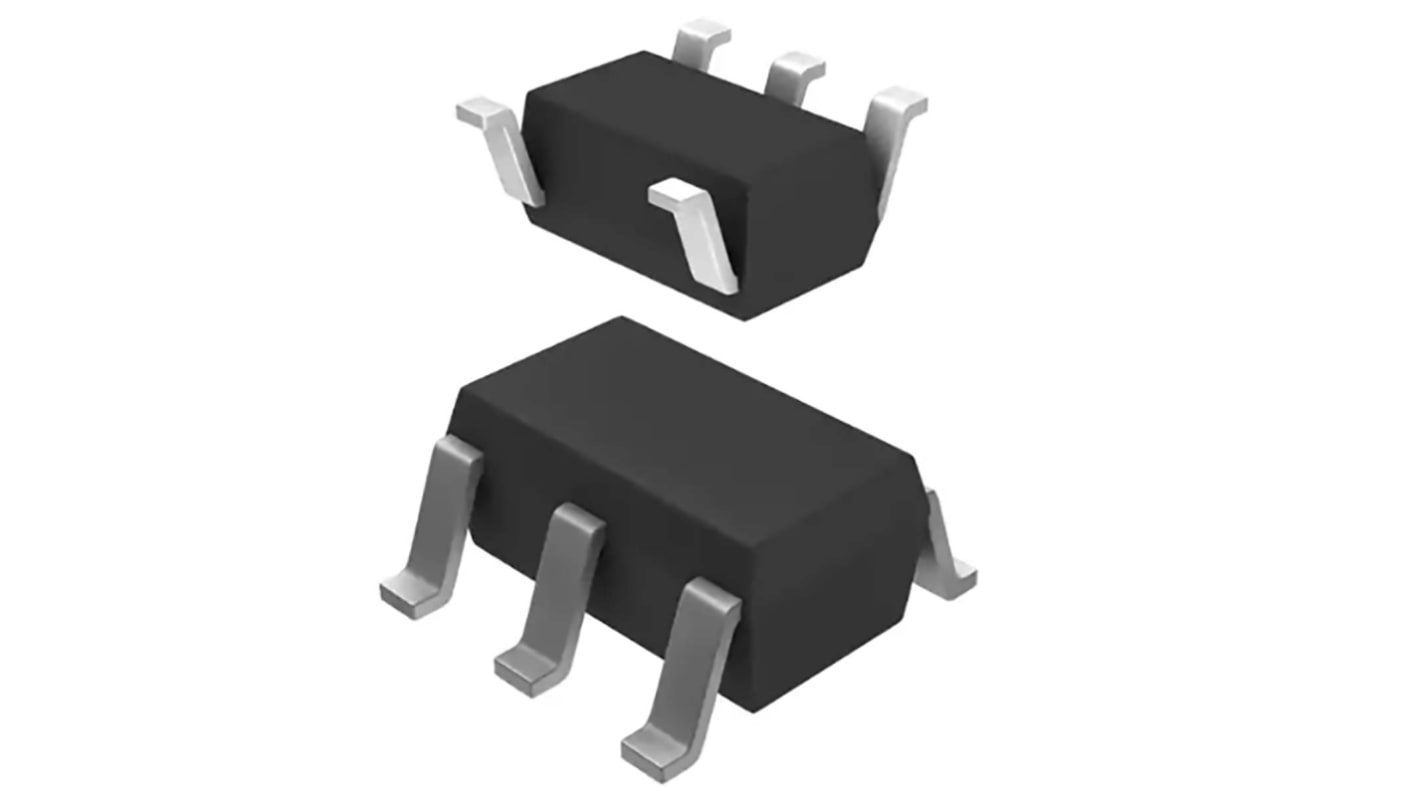

DiodesZetex AP7315DQ-33W5-7, 1 Low Dropout Voltage, Voltage Regulator 150mA, 3.3 V 5-Pin, SOT
- RS Stock No.:
- 206-0198
- Mfr. Part No.:
- AP7315DQ-33W5-7
- Brand:
- DiodesZetex
4050 In stock - FREE next working day delivery available
Price Each (On a Reel of 3000)
£0.082
(exc. VAT)
£0.098
(inc. VAT)
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 - 6000 | £0.082 | £246.00 |
| 9000 - 21000 | £0.075 | £225.00 |
| 24000 - 42000 | £0.07 | £210.00 |
| 45000 + | £0.064 | £192.00 |
*price indicative
- RS Stock No.:
- 206-0198
- Mfr. Part No.:
- AP7315DQ-33W5-7
- Brand:
- DiodesZetex
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The DiodesZetex 0.21V low dropout regulator with high output voltage accuracy, low RDS(ON), high PSRR, low output noise and low quiescent current. This regulator is based on a CMOS process. It include a voltage reference, error amplifier, current limit circuit and an enable input to turn it on and off with the integrated resistor network fixed output voltage version can be delivered.
Accuracy ±1%
Ripple rejection 75dB at 1kHz
Ripple rejection 75dB at 1kHz
Specifications
Attribute | Value |
|---|---|
| Maximum Output Current | 150mA |
| Regulator Type | Low Dropout Voltage |
| Number of Outputs | 1 |
| Output Voltage | 3.3 V |
| Accuracy | ±1% |
| Mounting Type | Surface Mount |
| Package Type | SOT |
| Pin Count | 5 |
| Output Type | Fixed |
