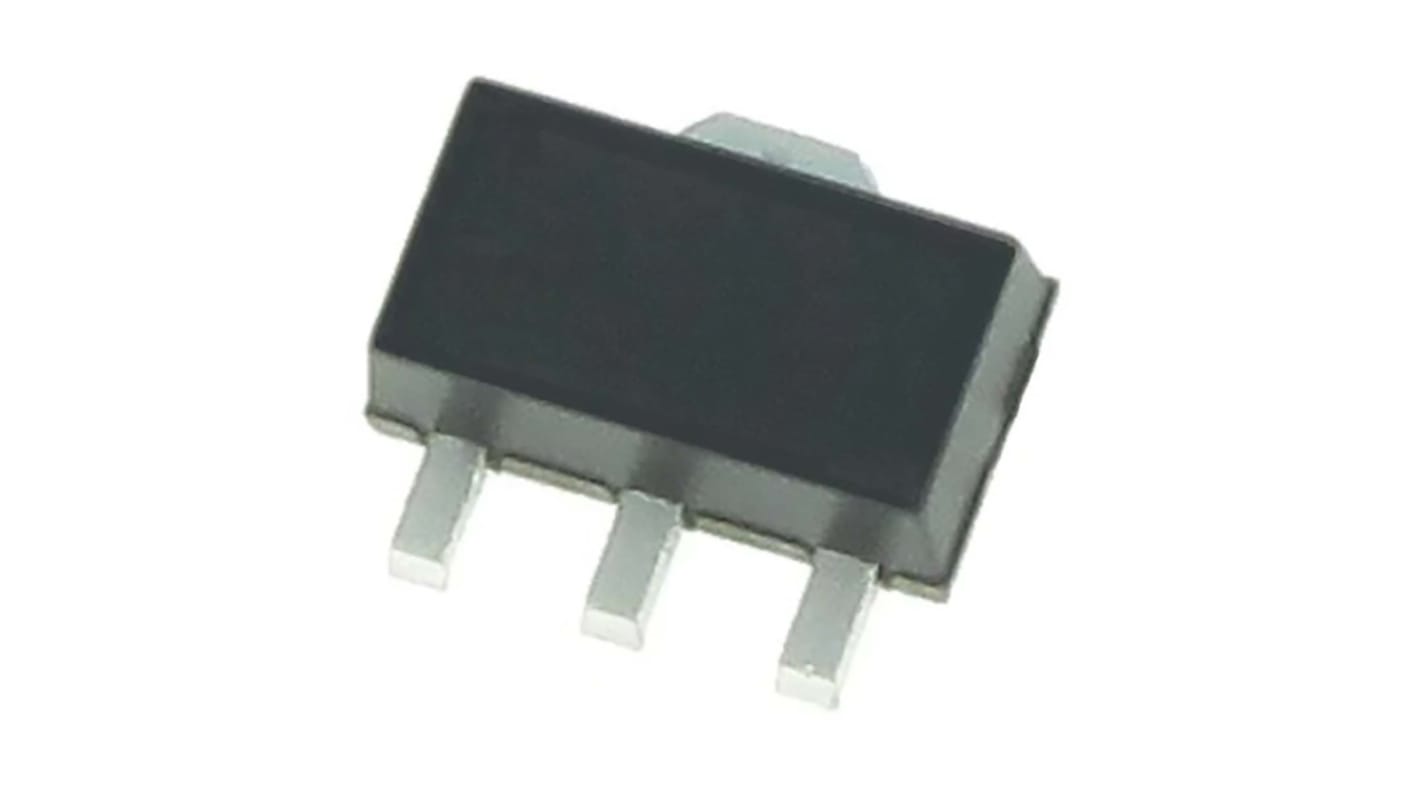

DiodesZetex AP2205-18Y-13, 1 Low Dropout Voltage, Voltage Regulator 250mA, 1.8 V 3-Pin, SOT
- RS Stock No.:
- 206-0180
- Mfr. Part No.:
- AP2205-18Y-13
- Brand:
- DiodesZetex
Available to back order for despatch 16/05/2025
Price Each (On a Reel of 2500)
£0.102
(exc. VAT)
£0.122
(inc. VAT)
| Units | Per unit | Per Reel* |
| 2500 + | £0.102 | £255.00 |
| *price indicative | ||
- RS Stock No.:
- 206-0180
- Mfr. Part No.:
- AP2205-18Y-13
- Brand:
- DiodesZetex
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The DiodesZetex 1.8 V positive voltage regulator IC fabricated by high voltage EPNP process. The IC consists of a voltage reference, an error amplifier, a resistor network for setting output voltage, a current limit circuit for current protection, and a chip enable circuit. Its low dropout voltage is 100mV and has 3 pin which has surface mounting.
Compatible with low ESR ceramic capacitor
Low ground current
Low ground current
Specifications
Attribute | Value |
|---|---|
| Regulator Type | Low Dropout Voltage |
| Maximum Output Current | 250mA |
| Output Voltage | 1.8 V |
| Number of Outputs | 1 |
| Accuracy | ±2% |
| Mounting Type | Surface Mount |
| Package Type | SOT |
| Pin Count | 3 |
| Output Type | Fixed |
