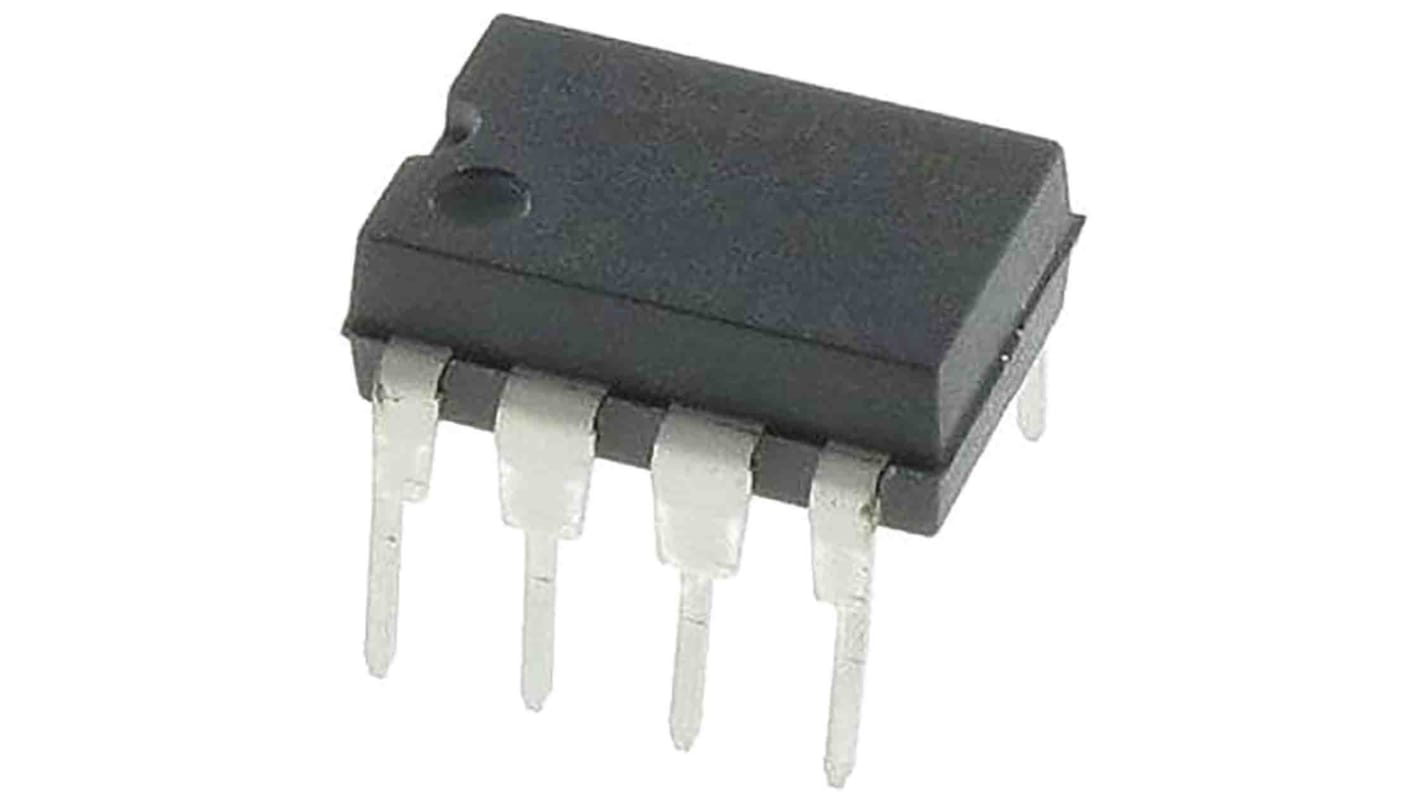

Renesas Electronics, 1-Channel Charge Pump, Voltage Regulator, 0.02 A, -1.5/-12 V 10 kHz, PDIP 8-Pin

View all Voltage Regulators
Bulk discount available

Subtotal (1 tube of 50 units)*

£80.25

(exc. VAT)

£96.30

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 550 unit(s), ready to ship
Units
Per unit
Per Tube*
50 - 50£1.605£80.25
100 - 450£1.409£70.45
500 - 950£1.372£68.60
1000 - 2450£1.337£66.85
2500 +£1.305£65.25

*price indicative

RS Stock No.:
197-2515
Mfr. Part No.:
ICL7660SCPAZ
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Product Type

Voltage Regulator

Regulator Type

Charge Pump

Number of Outputs

1

Output Voltage

-1.5/-12 V

Switching Frequency

10kHz

Polarity

Negative

Mount Type

Surface

Package Type

PDIP

Output Current

0.02A

Pin Count

8

Output Type

Adjustable

Switching Regulator

Yes

Standards/Approvals

No

Series

ICL7660

Width

4 mm

Length

5mm

Height

1.5mm

Minimum Input Voltage

1.5V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Maximum Input Voltage

12V

Automotive Standard

No

The Renesas Electronics ICL7660S Super Voltage Converters is a monolithic CMOS voltage conversion ICs that ensure significant performance advantages over other similar devices. They are direct replacements for the industry standard ICL7660 offering an extended operating supply voltage range up to 12V, with lower supply current. A Frequency Boost pin has been incorporated to enable the user to achieve lower output impedance despite using smaller capacitors.

Ensured Lower Max Supply Current for All Temperature Ranges

Wide Operating Voltage Range: 1.5V to 12V

100% Tested at 3V

Boost Pin (Pin 1) for Higher Switching Frequency

Ensured Minimum Power Efficiency of 96%

Improved Minimum Open Circuit Voltage Conversion

Efficiency of 99%

Improved SCR Latchup Protection
