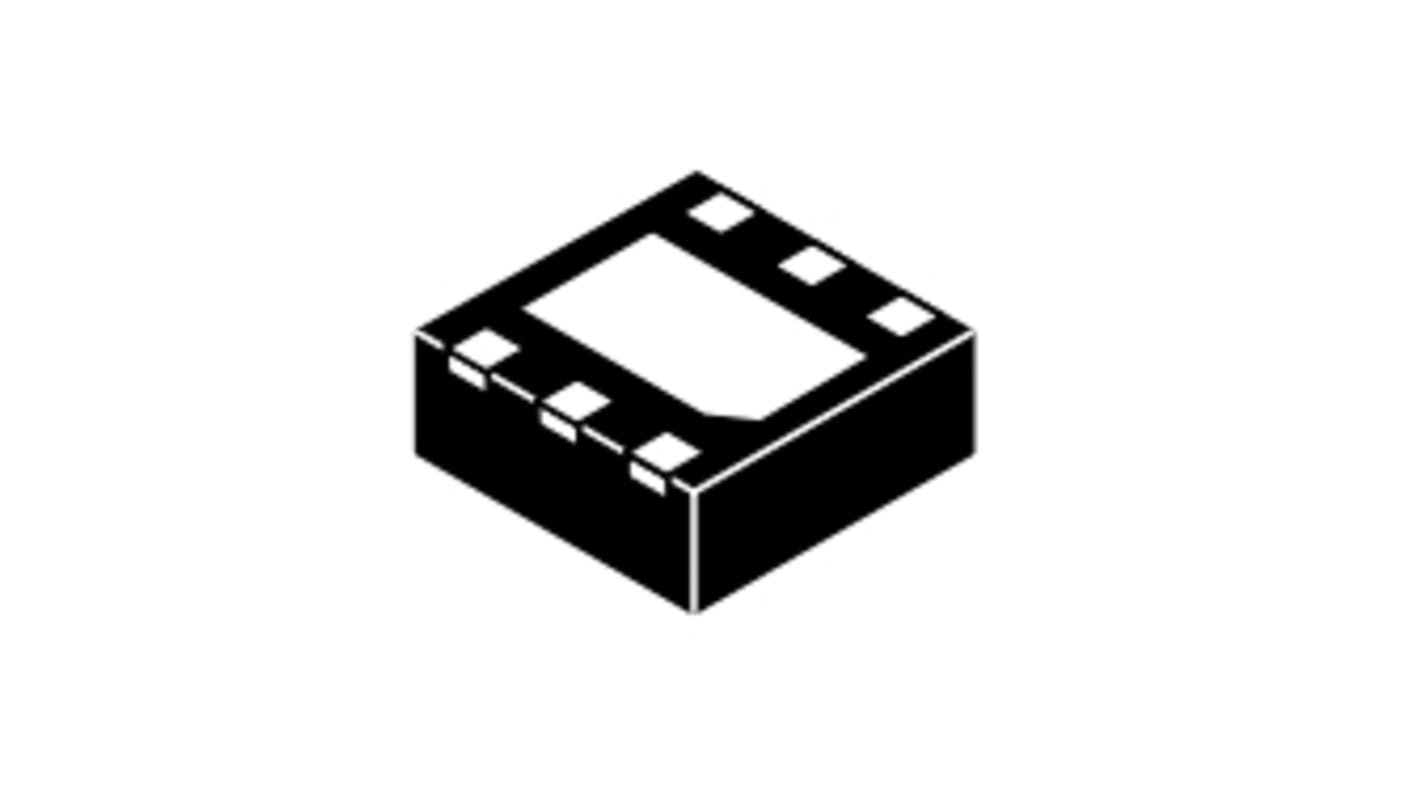

onsemi NCV8165ML330TBG, 1 Low Dropout Voltage, Voltage Regulator 1000 (Typ)mA, 3.3 V 8-Pin, DFNW

View all Voltage Regulators

Subtotal (1 reel of 3000 units)*

£900.00

(exc. VAT)

£1,080.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 02 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 +£0.30£900.00

*price indicative

RS Stock No.:
195-2600
Mfr. Part No.:
NCV8165ML330TBG
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Regulator Type

Low Dropout Voltage

Maximum Output Current

1000 (Typ)mA

Output Voltage

3.3 V

Number of Outputs

1

Line Regulation

0.09 mV/V

Accuracy

±2%

Load Regulation

0.01 mV/mA

Polarity

Negative, Positive

Mounting Type

Surface Mount

Package Type

DFNW

Quiescent Current

18µA

Pin Count

8

Output Type

Fixed

Dimensions

3.1 x 3.1 x 0.95mm

Height

0.95mm

Maximum Input Voltage

5.5 V

Maximum Operating Temperature

+150 °C

Minimum Input Voltage

1.5 V

Automotive Standard

AEC-Q100

Length

3.1mm

Width

3.1mm

The NCV8165 is an LDO (Low Dropout Regulator) capable of supplying 500 mA output current. Designed to meet the requirements of RF and analog circuits, the NCV8165 device provides low noise, high PSRR, low quiescent current, and very good load/line transients. The device is designed to work with a 1 μF input and a 1 μF output ceramic capacitor. Available in DFNW8 0.65P, 3 mm x 3 mm x 0.9 mm Package.

Ultra High PSRR 85dB at 1 kHz, 63dB at 100 kHz
Excellent for power sensitive device like Wi-Fi module
Ultra Low Output Noise 8.5 μVRMS
Very well suited for noise sensitive application
Ultra Low Quiescent current 12 μA
Improved efficiency during light load conditions
Operating Input Voltage Range 1.9V to 5.5V
Suitable for battery powered device
Very Low Dropout 200mV at 500mA
Low power dissipation at full load
Application
A/D and D/A Converters Power supply
Audio codec
Battery Powered Equipment
Camera module
RF Modules
WiGig Power Supply
LP5907 or LP5912 Upgrade
