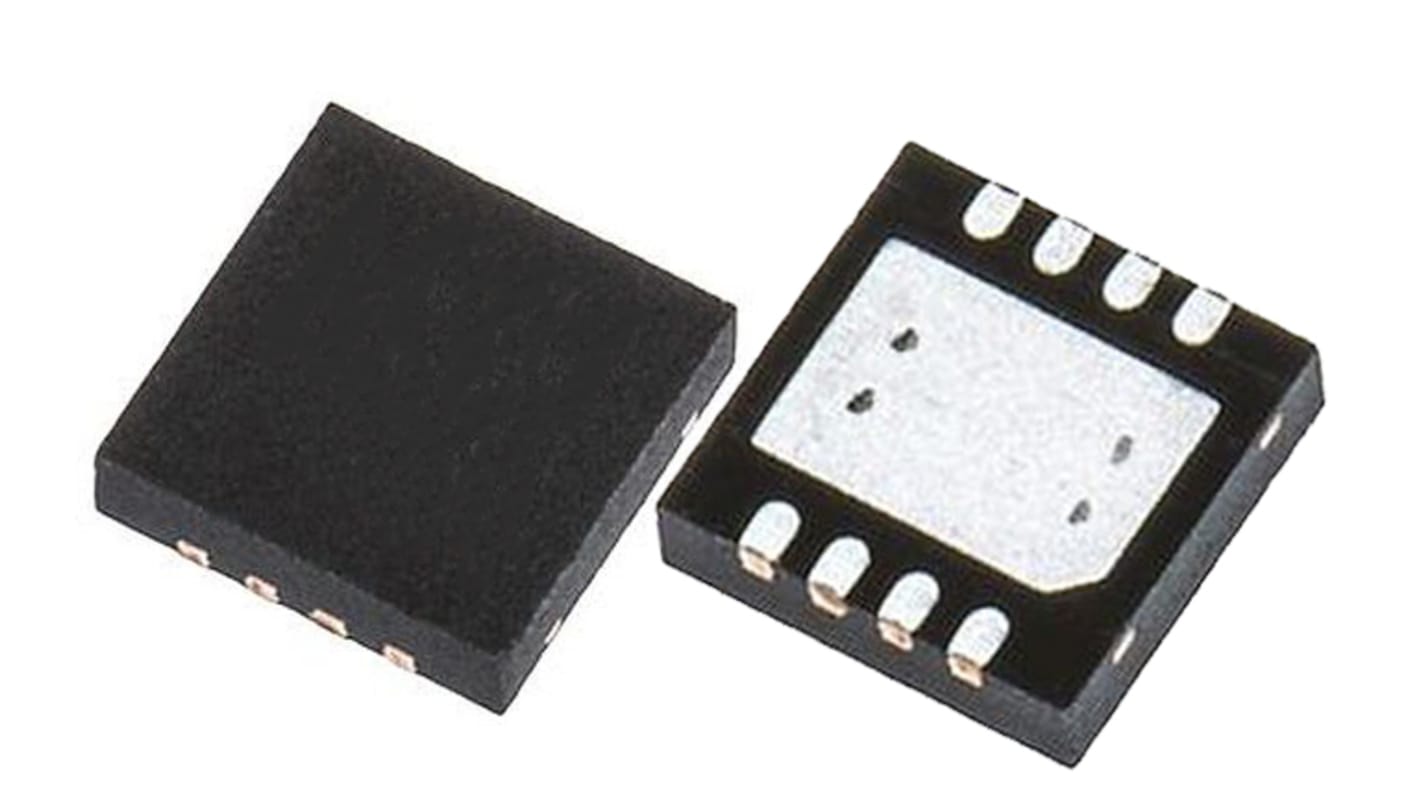

Renesas Electronics ISL80510IRAJZ-T7A, 1 Low Dropout Voltage, Voltage Regulator 1A, 0.8 → 5.5 V 8-Pin, DFN
- RS Stock No.:
- 193-1524
- Mfr. Part No.:
- ISL80510IRAJZ-T7A
- Brand:
- Renesas Electronics
Stock information currently inaccessible
- RS Stock No.:
- 193-1524
- Mfr. Part No.:
- ISL80510IRAJZ-T7A
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Maximum Output Current | 1A | |
| Regulator Type | Low Dropout Voltage | |
| Output Voltage | 0.8 → 5.5 V | |
| Number of Outputs | 1 | |
| Line Regulation | 0.9 % | |
| Load Regulation | 0.9 % | |
| Accuracy | ±1.8% | |
| Mounting Type | Surface Mount | |
| Quiescent Current | 5.7mA | |
| Package Type | DFN | |
| Pin Count | 8 | |
| Output Type | Adjustable | |
| Dimensions | 3 x 3 x 0.95mm | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Input Voltage | 2.2 V | |
| Minimum Operating Temperature | -40 °C | |
| Height | 0.95mm | |
| Maximum Input Voltage | 6 V | |
| Length | 3mm | |
| Width | 3mm | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Maximum Output Current 1A | ||
Regulator Type Low Dropout Voltage | ||
Output Voltage 0.8 → 5.5 V | ||
Number of Outputs 1 | ||
Line Regulation 0.9 % | ||
Load Regulation 0.9 % | ||
Accuracy ±1.8% | ||
Mounting Type Surface Mount | ||
Quiescent Current 5.7mA | ||
Package Type DFN | ||
Pin Count 8 | ||
Output Type Adjustable | ||
Dimensions 3 x 3 x 0.95mm | ||
Maximum Operating Temperature +125 °C | ||
Minimum Input Voltage 2.2 V | ||
Minimum Operating Temperature -40 °C | ||
Height 0.95mm | ||
Maximum Input Voltage 6 V | ||
Length 3mm | ||
Width 3mm | ||
The ISL80510 is a single output Low Dropout voltage regulator (LDO) capable of sourcing up to 1A output current. This LDO operates from input voltages of 2.2V to 6V. A submicron BiCMOS process is utilized for this product family to deliver the best in class analog performance and overall value. This CMOS LDO consumes significantly lower quiescent current as a function of load compared to bipolar LDOs, which translates into higher efficiency and packages with smaller footprints.
State-of-the-art internal compensation achieves a very fast load transient response and excellent PSRR. The ISL80510 provides an output accuracy of ±1.8% VOUT accuracy over all load, line and temperature variation (TJ = -40°C to +125°C). An external capacitor on the soft-start pin provides an adjustable soft starting of the output voltage ramp to control the inrush current. The ENABLE feature allows the part to be placed into a low quiescent current shutdown mode.
State-of-the-art internal compensation achieves a very fast load transient response and excellent PSRR. The ISL80510 provides an output accuracy of ±1.8% VOUT accuracy over all load, line and temperature variation (TJ = -40°C to +125°C). An external capacitor on the soft-start pin provides an adjustable soft starting of the output voltage ramp to control the inrush current. The ENABLE feature allows the part to be placed into a low quiescent current shutdown mode.
