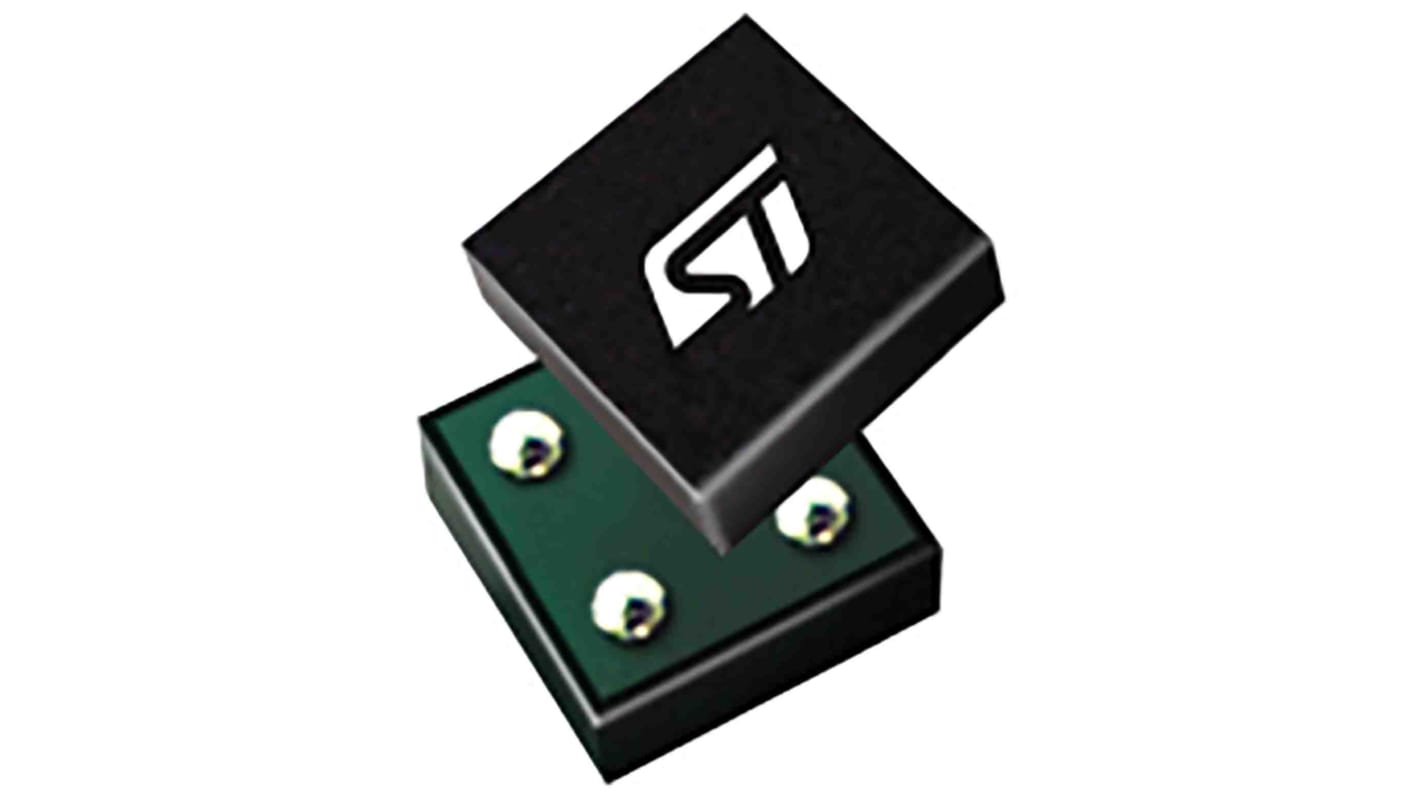

STMicroelectronics LDLN025J18R, 1 Linear Voltage, Voltage Regulator 250mA, 1.8 V 4-Pin, Flip Chip

View all Voltage Regulators
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
192-4621
Mfr. Part No.:
LDLN025J18R
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Maximum Output Current

250mA

Regulator Type

Linear Voltage

Output Voltage

1.8 V

Number of Outputs

1

Line Regulation

0.06 %/V

Load Regulation

0.007 %/mA

Accuracy

±3%

Mounting Type

Surface Mount

Quiescent Current

425µA

Package Type

Flip Chip

Pin Count

4

Output Type

Fixed

Dimensions

0.65 x 0.65 x 0.27mm

Height

0.27mm

Minimum Operating Temperature

-40 °C

Minimum Input Voltage

1.5 V

Maximum Operating Temperature

+125 °C

Maximum Input Voltage

5.5 V

Length

0.65mm

Width

0.65mm

Ultra low output noise: 6.5 μVRMS
Operating input voltage range: 1.5 V to 5.5 V
Output current up to 250 mA
Very low quiescent current: 12 μA at no-load
Controlled Iq in dropout condition
Very low-dropout voltage: 250 mV at 250 mA
Very high PSRR: 80 dB@100 Hz, 60 dB @ 100 kHz
Output voltage accuracy: 2% across line, load and temperature
Output voltage versions: from 1 V to 5 V, with 50 mV step
Logic-controlled electronic shutdown
Output discharge feature
Internal soft-start
Overcurrent and thermal protections
Temperature range: from -40 °C to +125 °C
Packages: Flip-Chip4, DFN4-1x1, SOT23-5L
