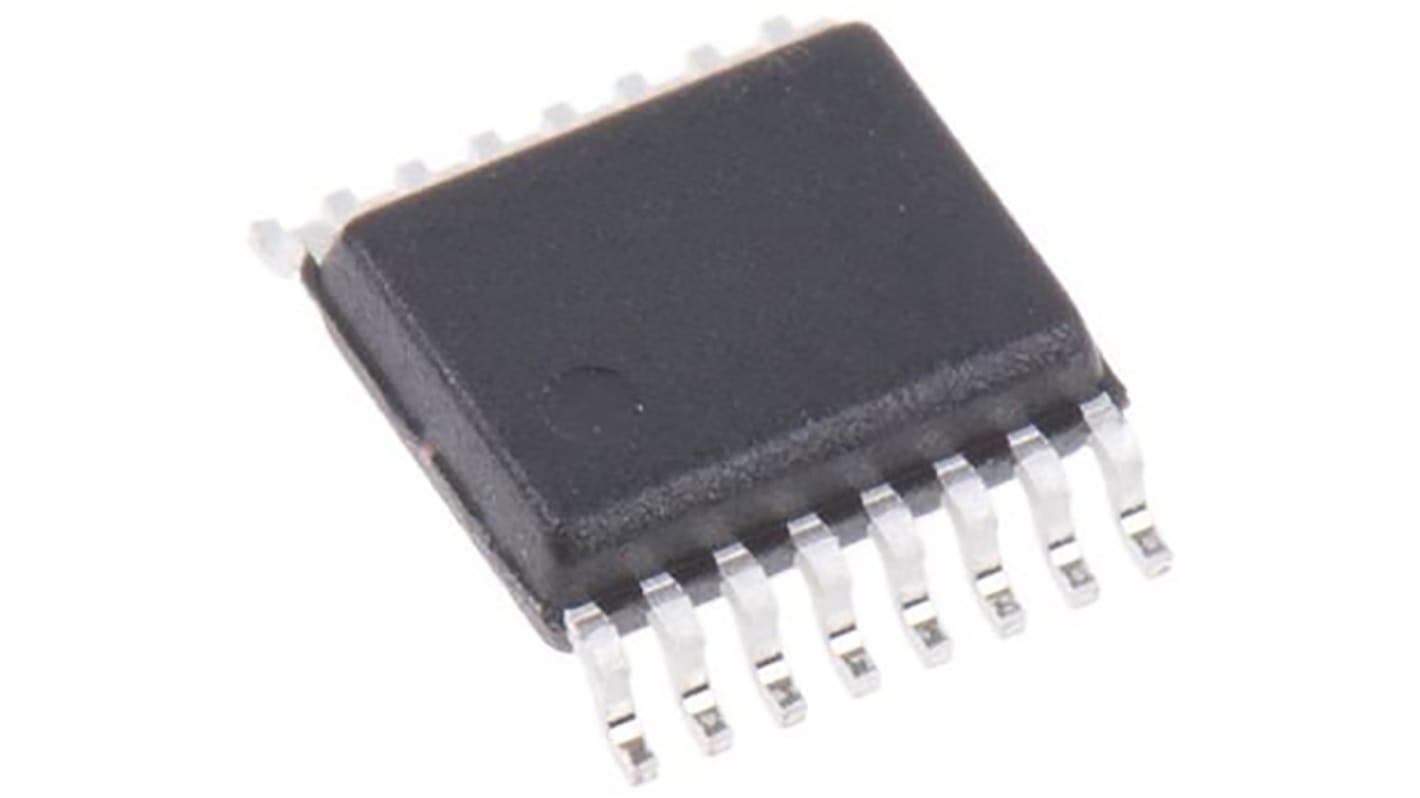

Maxim Integrated MAX864EEE+ Charge Pump, Regulator, ±3.5 V → ±12 V 16-Pin, QSOP
- RS Stock No.:
- 190-0237
- Mfr. Part No.:
- MAX864EEE+
- Brand:
- Maxim Integrated
Subtotal (1 pack of 2 units)*
£3.33
(exc. VAT)
£3.996
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 262 unit(s), ready to ship
Units | Per unit | Per Pack* |
---|---|---|
2 + | £1.665 | £3.33 |
*price indicative
- RS Stock No.:
- 190-0237
- Mfr. Part No.:
- MAX864EEE+
- Brand:
- Maxim Integrated
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Maxim Integrated | |
Regulator Type | Charge Pump | |
Output Voltage | ±3.5 V → ±12 V | |
Mounting Type | Surface Mount | |
Package Type | QSOP | |
Pin Count | 16 | |
Dimensions | 4.98 x 3.99 x 1.55mm | |
Minimum Operating Temperature | -40 °C | |
Height | 1.55mm | |
Maximum Operating Temperature | +85 °C | |
Width | 3.99mm | |
Length | 4.98mm | |
Select all | ||
---|---|---|
Brand Maxim Integrated | ||
Regulator Type Charge Pump | ||
Output Voltage ±3.5 V → ±12 V | ||
Mounting Type Surface Mount | ||
Package Type QSOP | ||
Pin Count 16 | ||
Dimensions 4.98 x 3.99 x 1.55mm | ||
Minimum Operating Temperature -40 °C | ||
Height 1.55mm | ||
Maximum Operating Temperature +85 °C | ||
Width 3.99mm | ||
Length 4.98mm | ||
- COO (Country of Origin):
- PH
Charge Pump Converters, Maxim Integrated
A charge pump IC converts voltages using switching voltage technology and capacitive-energy storage elements. Charge pumps offer high-efficiency and compact solutions for applications with low-output current requirements.
Note
Please note that any defect or non – conformance of this product must be discovered and reported to RS within 20 days of purchase.
