Select all	Attribute	Value
	Brand	onsemi
	Product Type	Voltage Regulator
	Package Type	DFN
	Mount Type	Surface
	Polarity	Positive
	Pin Count	10
	Standards/Approvals	No
	Height	0.95mm
	Width	3 mm
	Length	3mm
	Series	NCP59744
	Minimum Input Voltage	0.8V
	Maximum Operating Temperature	150°C
	Maximum Input Voltage	5.5V
	Automotive Standard	No

	Select all
	Brand onsemi
	Product Type Voltage Regulator
	Package Type DFN
	Mount Type Surface
	Polarity Positive
	Pin Count 10
	Standards/Approvals No
	Height 0.95mm
	Width 3 mm
	Length 3mm
	Series NCP59744
	Minimum Input Voltage 0.8V
	Maximum Operating Temperature 150°C
	Maximum Input Voltage 5.5V
	Automotive Standard No

115mV typical dropout at the full 3.0 A load

Output Current in Excess of 3.0 A

Fast Transient Response

Programmable Soft-Start

Open Drain Power Good Output

Stable with Any Type of Output Capacitor

minimizes the power loss across the regulator

high output current with low number of external components

reduced output capacitance requirements

protection against in-rush current

power sequencing capability

easy design effort

Applications

Networking and Telecommunications

Industrial

Computing and Peripherials

Medical

Consumer

End Products

Servers

Cellular Infrastructure Equipment

Networking Switch

Wireless Router

PoE Equipment

Ultrasound Imaging

Camera & Vision Systems

High-End Computing Equipment

FPGA, DSP and Logic Power Supplies

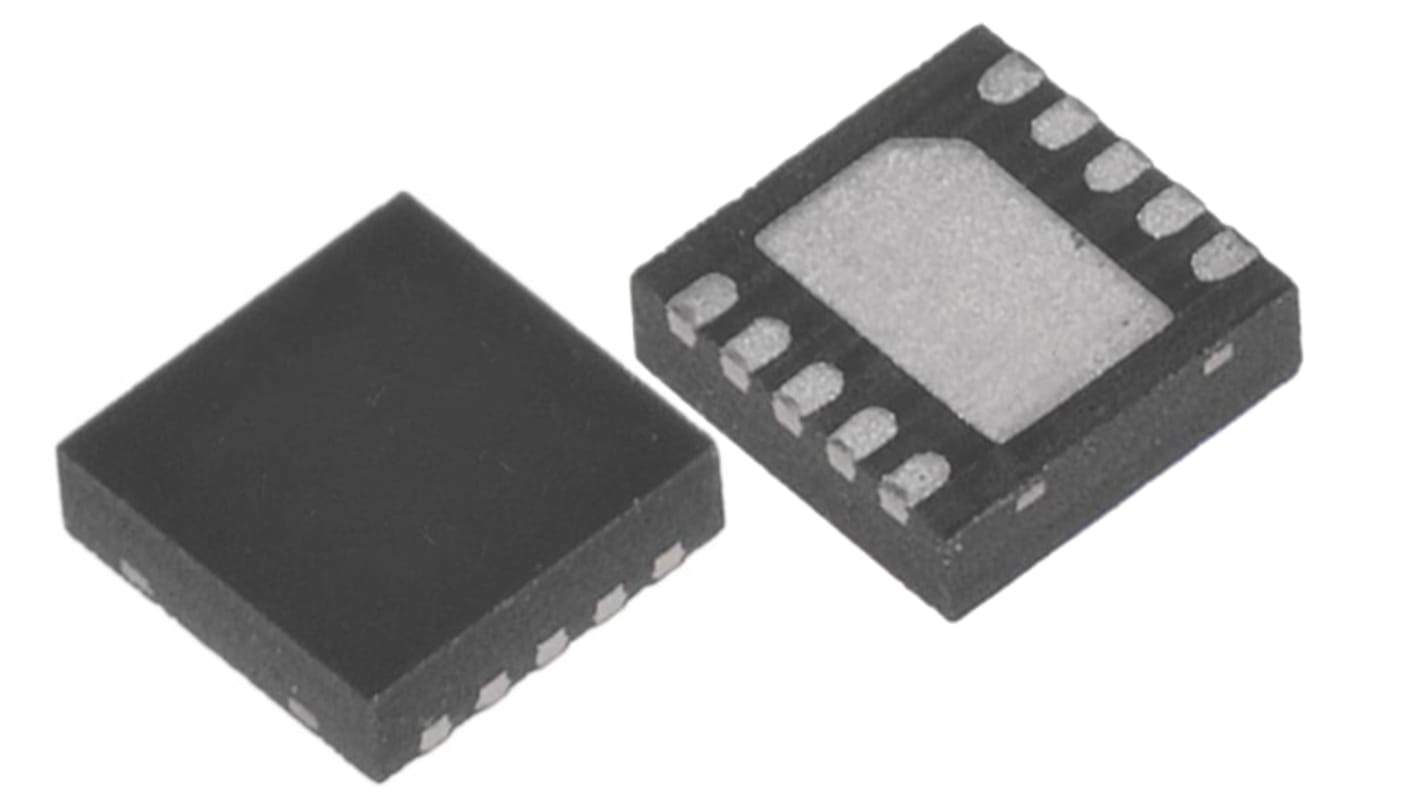

onsemi, Voltage Regulator 5.5V DFN 10-Pin
