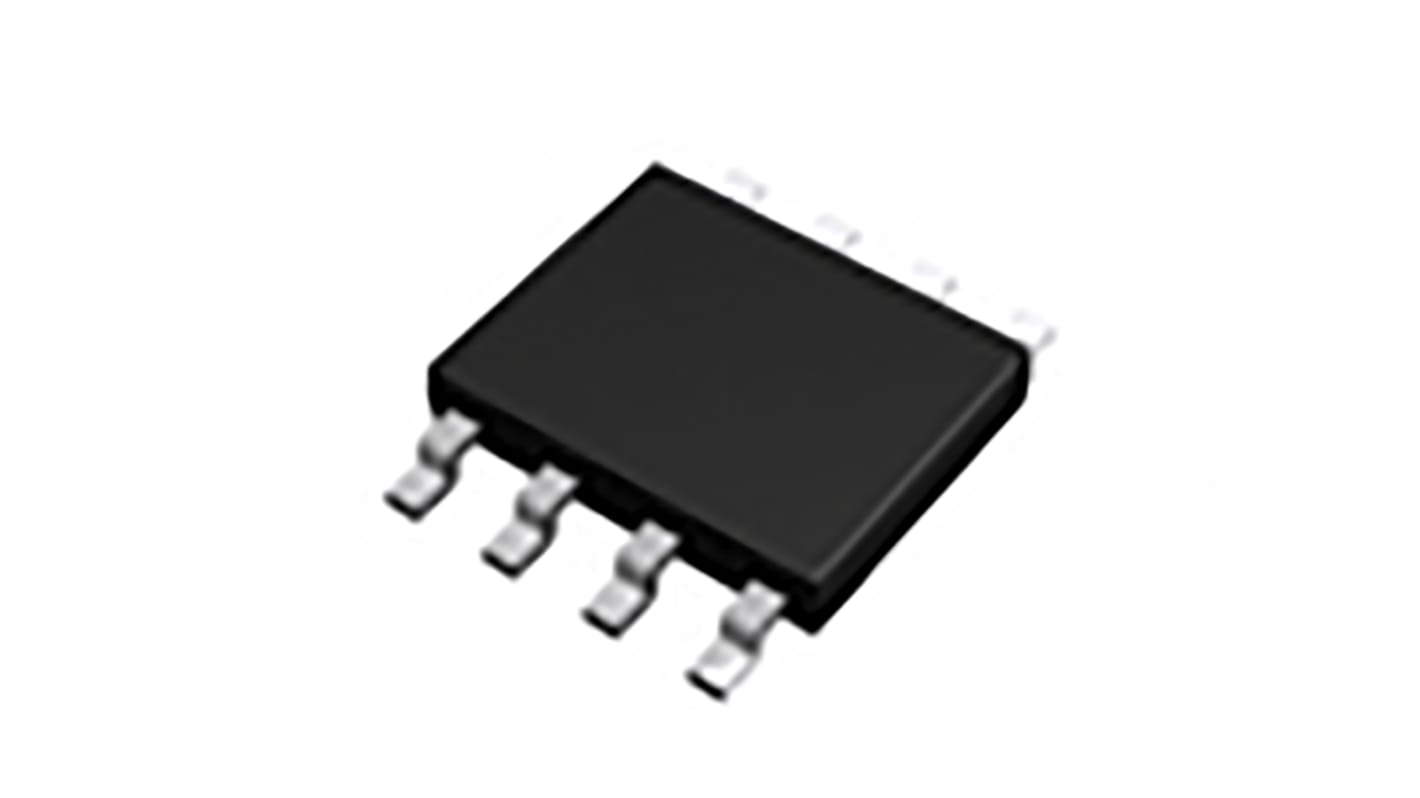

ROHM BD00IC0MEFJ-LBH2, 1 Low Dropout Voltage, Voltage Regulator 1A, 0.8 → 4.5 V 8-Pin, HTSOP
- RS Stock No.:
- 184-7516
- Mfr. Part No.:
- BD00IC0MEFJ-LBH2
- Brand:
- ROHM
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 184-7516
- Mfr. Part No.:
- BD00IC0MEFJ-LBH2
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Regulator Type | Low Dropout Voltage | |
| Maximum Output Current | 1A | |
| Number of Outputs | 1 | |
| Output Voltage | 0.8 → 4.5 V | |
| Line Regulation | 1 % | |
| Accuracy | ±1% | |
| Load Regulation | 1.5 % | |
| Mounting Type | Surface Mount | |
| Package Type | HTSOP | |
| Pin Count | 8 | |
| Reference Voltage | 0.8V | |
| Output Type | Adjustable | |
| Dimensions | 4.9 x 3.9 x 0.85mm | |
| Minimum Input Voltage | 2.5 V | |
| Minimum Operating Temperature | -40 °C | |
| Height | 0.85mm | |
| Maximum Operating Temperature | 105 °C | |
| Maximum Input Voltage | 5.5 V | |
| Width | 3.9mm | |
| Length | 4.9mm | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Regulator Type Low Dropout Voltage | ||
Maximum Output Current 1A | ||
Number of Outputs 1 | ||
Output Voltage 0.8 → 4.5 V | ||
Line Regulation 1 % | ||
Accuracy ±1% | ||
Load Regulation 1.5 % | ||
Mounting Type Surface Mount | ||
Package Type HTSOP | ||
Pin Count 8 | ||
Reference Voltage 0.8V | ||
Output Type Adjustable | ||
Dimensions 4.9 x 3.9 x 0.85mm | ||
Minimum Input Voltage 2.5 V | ||
Minimum Operating Temperature -40 °C | ||
Height 0.85mm | ||
Maximum Operating Temperature 105 °C | ||
Maximum Input Voltage 5.5 V | ||
Width 3.9mm | ||
Length 4.9mm | ||
- COO (Country of Origin):
- JP
This is the product guarantees long life cycle in Industrial market.
BD00IC0MEFJ-LB is a LDO regulator with output current 1.0A. The output accuracy is ±1% of output voltage. It has package type: HTSOP-J8. Over current protection (for protecting the IC destruction by output short circuit), circuit current ON/OFF switch (for setting the circuit 0μA at shutdown mode), and thermal shutdown circuit (for protecting IC from heat destruction by over load condition) are all built in. It is usable for ceramic capacitor and enables to improve smaller set and long-life.
BD00IC0MEFJ-LB is a LDO regulator with output current 1.0A. The output accuracy is ±1% of output voltage. It has package type: HTSOP-J8. Over current protection (for protecting the IC destruction by output short circuit), circuit current ON/OFF switch (for setting the circuit 0μA at shutdown mode), and thermal shutdown circuit (for protecting IC from heat destruction by over load condition) are all built in. It is usable for ceramic capacitor and enables to improve smaller set and long-life.
Long Life Cycle Product for Industrial Applications.
High accuracy reference voltage circuit
Built-in Over Current Protection circuit (OCP)
Built-in Thermal Shut Down circuit (TSD)
With shut down switch
High accuracy reference voltage circuit
Built-in Over Current Protection circuit (OCP)
Built-in Thermal Shut Down circuit (TSD)
With shut down switch
