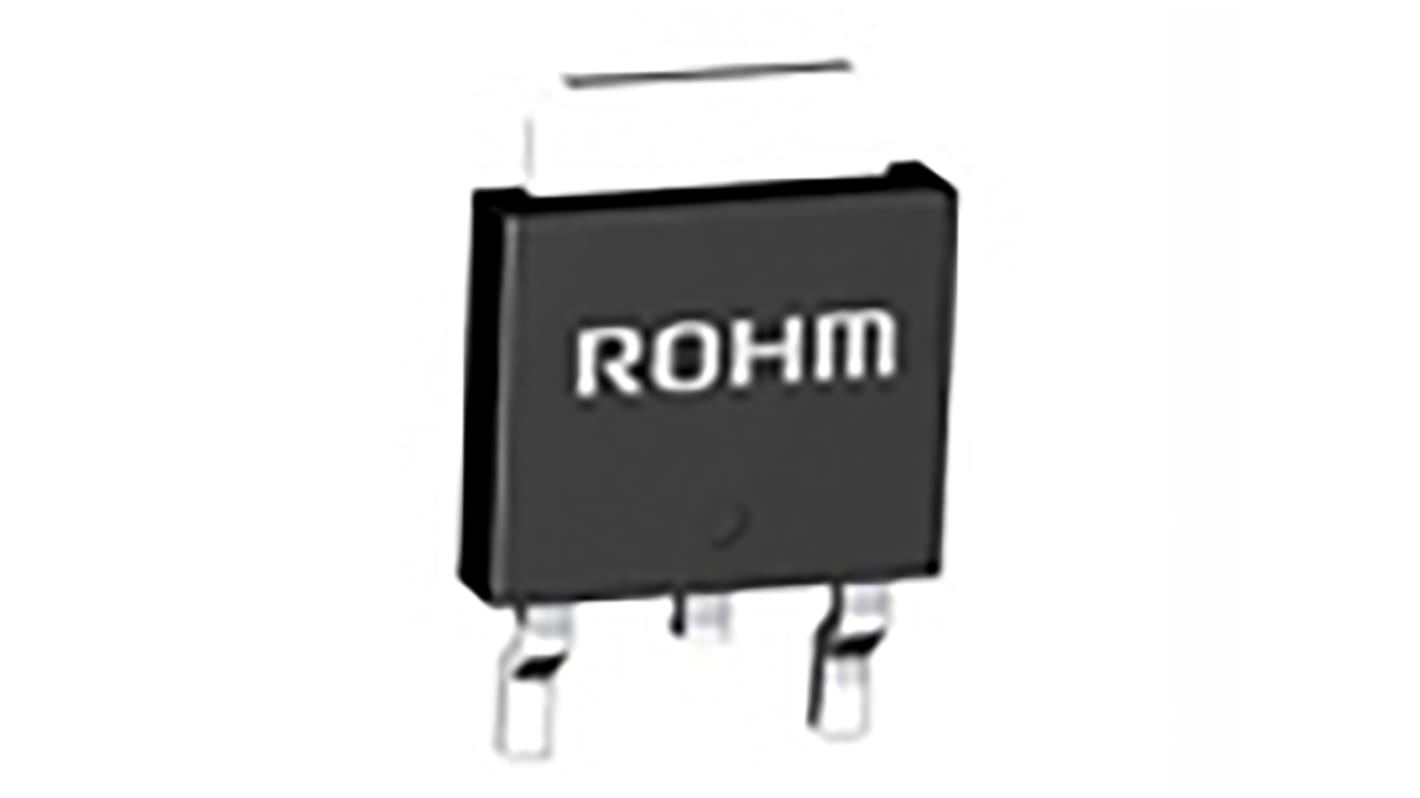

ROHM BD33FC0FP-E2, 1 Low Dropout Voltage, Voltage Regulator 1A, 3.3 V 3 + Tab-Pin, TO-252
- RS Stock No.:
- 184-7470
- Mfr. Part No.:
- BD33FC0FP-E2
- Brand:
- ROHM
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Price Each (In a Pack of 10)
£0.636
(exc. VAT)
£0.763
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.636 | £6.36 |
| 50 - 90 | £0.612 | £6.12 |
| 100 - 990 | £0.596 | £5.96 |
| 1000 + | £0.582 | £5.82 |
*price indicative
- RS Stock No.:
- 184-7470
- Mfr. Part No.:
- BD33FC0FP-E2
- Brand:
- ROHM
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
BD33FC0FP is low-saturation regulators. BD33FC0FP output voltage is 3.3V and package is TO252-3. BD33FC0FP has a built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits and a thermal shutdown circuit that protects the IC from thermal damage due to overloading.
Output current capability: 1A
Output voltage: 3.3V
High output voltage accuracy (Ta=25°C): ±1%
Low saturation with PDMOS output
Built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits
Built-in thermal shutdown circuit for protecting the IC from thermal damage due to overloading
Available Ceramic Capacitor to prevent oscillation
TO252-3 package
Output voltage: 3.3V
High output voltage accuracy (Ta=25°C): ±1%
Low saturation with PDMOS output
Built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits
Built-in thermal shutdown circuit for protecting the IC from thermal damage due to overloading
Available Ceramic Capacitor to prevent oscillation
TO252-3 package
Specifications
Attribute | Value |
|---|---|
| Regulator Type | Low Dropout Voltage |
| Maximum Output Current | 1A |
| Output Voltage | 3.3 V |
| Number of Outputs | 1 |
| Line Regulation | 80 mV |
| Accuracy | ±1% |
| Mounting Type | Surface Mount |
| Package Type | TO-252 |
| Reference Voltage | 0.75V |
| Pin Count | 3 + Tab |
| Output Type | Fixed |
| Dimensions | 6.5 x 5.5 x 2.3mm |
| Height | 2.3mm |
| Minimum Operating Temperature | -25 °C |
| Maximum Input Voltage | 26.5 V |
| Maximum Operating Temperature | 85 °C |
| Minimum Input Voltage | 4.3 V |
| Width | 5.5mm |
| Length | 6.5mm |
