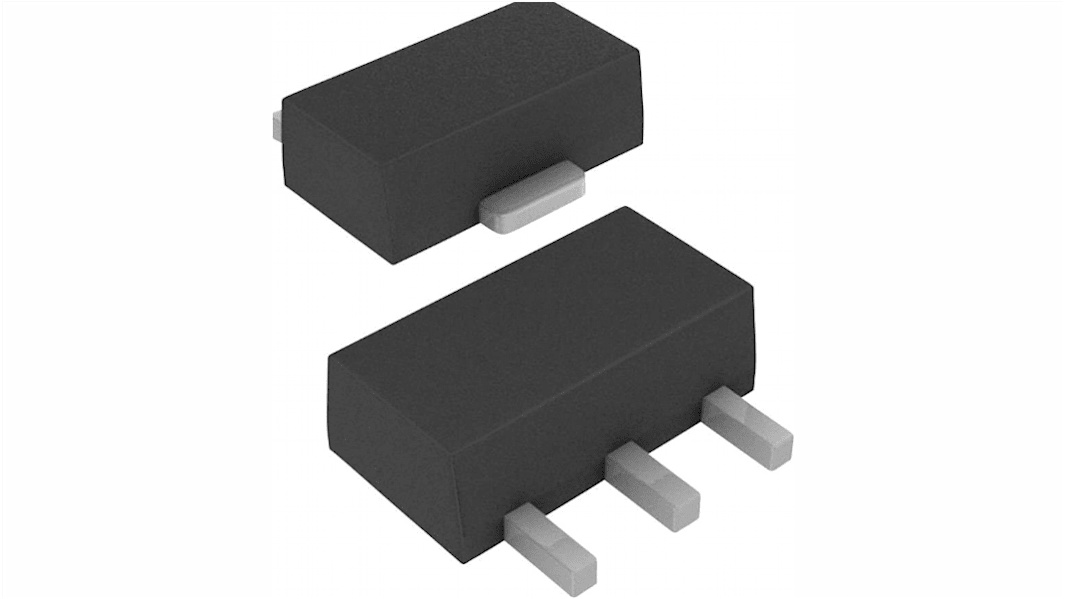

STMicroelectronics L78L33ABUTR, 1 Linear Voltage, Voltage Regulator 100mA, 3.3 V 3-Pin, SOT-89

View all Voltage Regulators

Subtotal (1 reel of 2500 units)*

£240.00

(exc. VAT)

£287.50

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2500 +£0.096£240.00

*price indicative

RS Stock No.:
178-5144
Mfr. Part No.:
L78L33ABUTR
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Maximum Output Current

100mA

Regulator Type

Linear Voltage

Output Voltage

3.3 V

Number of Outputs

1

Line Regulation

150 mV

Load Regulation

60 mV

Mounting Type

Surface Mount

Polarity

Positive

Package Type

SOT-89

Quiescent Current

6mA

Pin Count

3

Output Type

Fixed

Dimensions

4.6 x 2.6 x 1.6mm

Height

1.6mm

Minimum Operating Temperature

-40 °C

Maximum Operating Temperature

+125 °C

Maximum Input Voltage

30 V

Length

4.6mm

Width

2.6mm

Linear Voltage Regulators, 100mA, STMicroelectronics


The L78L series of three-terminal positive regulators embed internal current limiting, and thermal shut-down. Providing an adequate heat sink, up to 100mA output current can be delivered.

The STMicroelectronics L78L series of three-terminal positive regulator employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or on card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulator.

Short-circuit protection
No external components are required
Available in either ± 4% (A) or ± 8% (C) selection


Linear Voltage Regulators, STMicroelectronics
