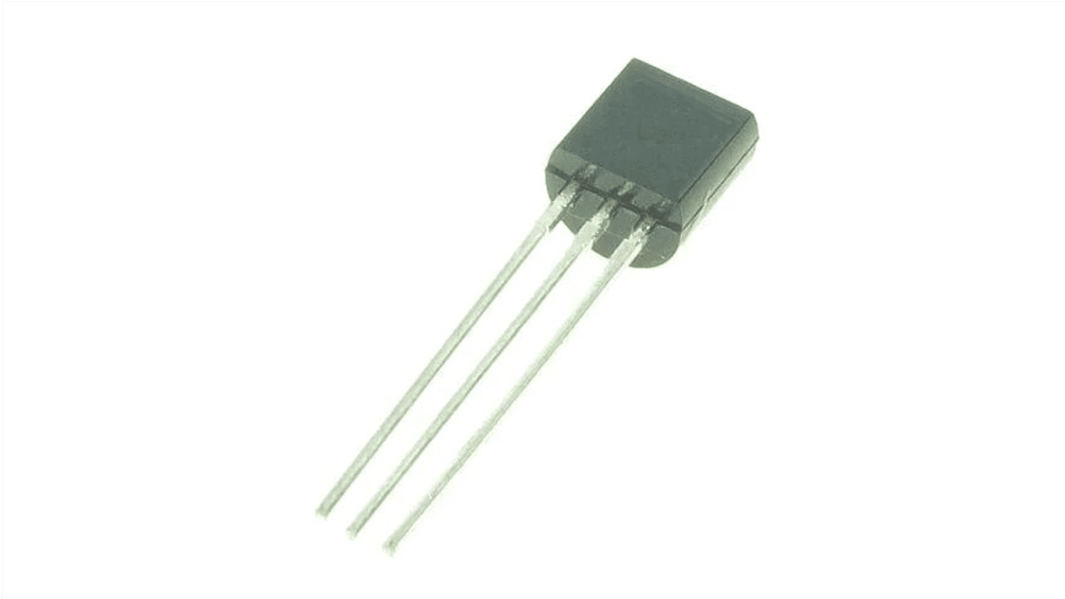

STMicroelectronics LM217LZ-TR, 1 Linear Voltage, Voltage Regulator 200mA, 1.2 → 37 V 3-Pin, TO-92
- RS Stock No.:
- 178-5084
- Mfr. Part No.:
- LM217LZ-TR
- Brand:
- STMicroelectronics
Available to back order for despatch 06/05/2025
Added
Price Each (On a Reel of 2000)
£0.246
(exc. VAT)
£0.295
(inc. VAT)
| Units | Per unit | Per Reel* |
| 2000 + | £0.246 | £492.00 |
| *price indicative | ||
- RS Stock No.:
- 178-5084
- Mfr. Part No.:
- LM217LZ-TR
- Brand:
- STMicroelectronics
Legislation and Compliance
Product Details
LM217/LM317 Linear Voltage Regulator, STMicroelectronics
The STMicroelectronics LM217, LM317 Positive linear voltage regulator are robust as they feature internal current limiting and thermal shutdown. The adjustable voltage regulator is supplied in various packages from TO220, TO220FP and D2PAK devices. This series offers 1.5 Amps of load current with an output range of 1.2 V to 37 V by using the resistive divider.
0.1% line and load regulation
Safe operational area protection
Floating operation for high voltage
Safe operational area protection
Floating operation for high voltage
Linear Voltage Regulators, STMicroelectronics
Specifications
Attribute | Value |
|---|---|
| Maximum Output Current | 200mA |
| Regulator Type | Linear Voltage |
| Number of Outputs | 1 |
| Output Voltage | 1.2 → 37 V |
| Line Regulation | 0.02 %/V |
| Load Regulation | 0.3 % |
| Mounting Type | Through Hole |
| Polarity | Positive |
| Package Type | TO-92 |
| Reference Voltage | 1.3V |
| Pin Count | 3 |
| Output Type | Adjustable |
| Dimensions | 4.95 x 3.94 x 4.95mm |
| Maximum Operating Temperature | +125 °C |
| Height | 4.95mm |
| Minimum Operating Temperature | -40 °C |
| Width | 3.94mm |
| Length | 4.95mm |
