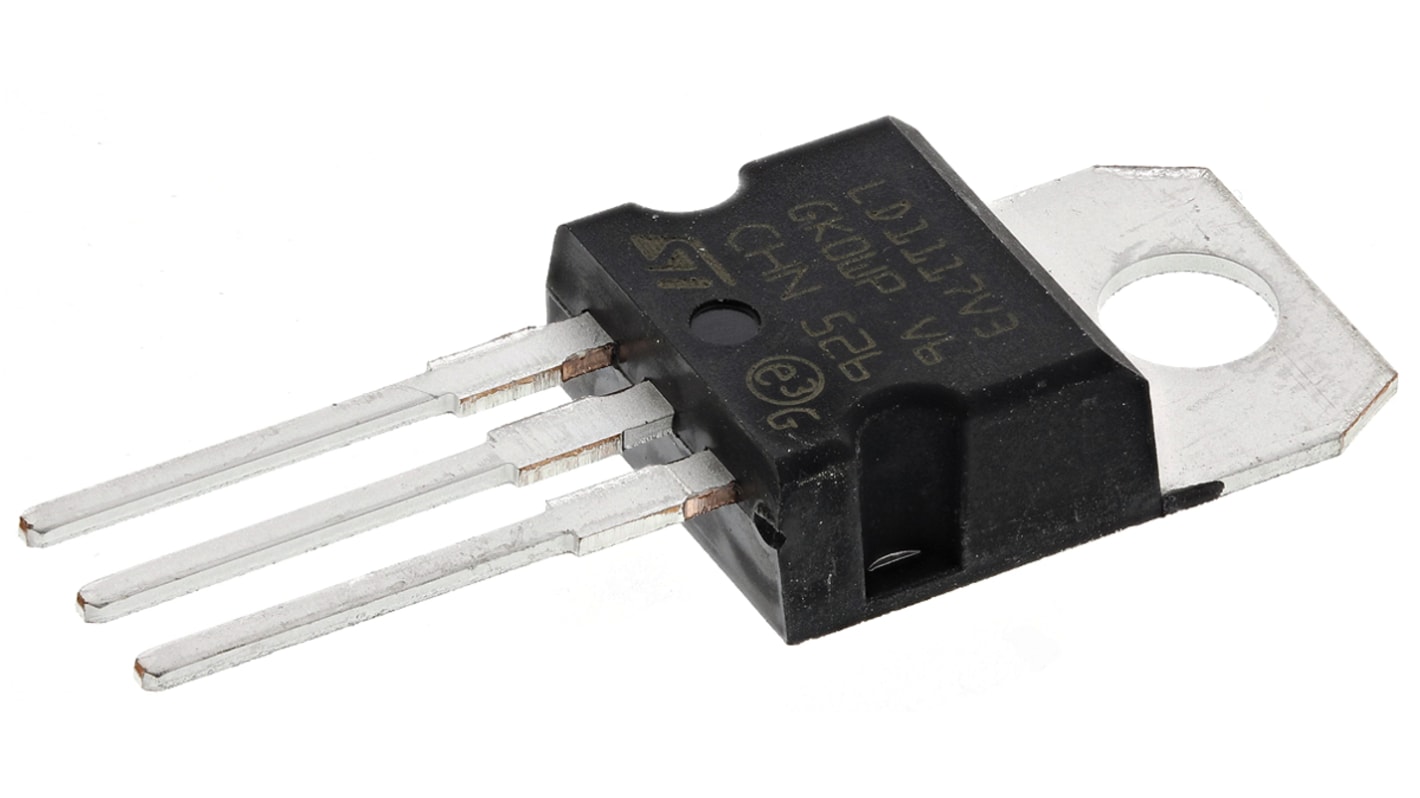

STMicroelectronics LD1117V, 1 Low Dropout Voltage, Voltage Regulator 1.3A, 1.25 → 15 V 3-Pin, TO-220
- RS Stock No.:
- 178-1486
- Mfr. Part No.:
- LD1117V
- Brand:
- STMicroelectronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 178-1486
- Mfr. Part No.:
- LD1117V
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Regulator Type | Low Dropout Voltage | |
| Maximum Output Current | 1.3A | |
| Output Voltage | 1.25 → 15 V | |
| Number of Outputs | 1 | |
| Line Regulation | 0.2 % | |
| Load Regulation | 0.4 % | |
| Accuracy | ±1% | |
| Polarity | Positive | |
| Mounting Type | Through Hole | |
| Package Type | TO-220 | |
| Pin Count | 3 | |
| Reference Voltage | 1.26V | |
| Output Type | Adjustable | |
| Dimensions | 10.4 x 4.6 x 9.15mm | |
| Minimum Operating Temperature | 0 °C | |
| Maximum Operating Temperature | +150 °C | |
| Maximum Input Voltage | 15 V | |
| Height | 9.15mm | |
| Width | 4.6mm | |
| Length | 10.4mm | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Regulator Type Low Dropout Voltage | ||
Maximum Output Current 1.3A | ||
Output Voltage 1.25 → 15 V | ||
Number of Outputs 1 | ||
Line Regulation 0.2 % | ||
Load Regulation 0.4 % | ||
Accuracy ±1% | ||
Polarity Positive | ||
Mounting Type Through Hole | ||
Package Type TO-220 | ||
Pin Count 3 | ||
Reference Voltage 1.26V | ||
Output Type Adjustable | ||
Dimensions 10.4 x 4.6 x 9.15mm | ||
Minimum Operating Temperature 0 °C | ||
Maximum Operating Temperature +150 °C | ||
Maximum Input Voltage 15 V | ||
Height 9.15mm | ||
Width 4.6mm | ||
Length 10.4mm | ||
Adjustable Linear LDO Voltage Regulators, STMicroelectronics
LDO (Low Dropout) Linear Voltage Regulators, STMicroelectronics
The Low dropout or LDO is a linear voltage regulator. We have a wide range of linear regulators. The LDO regulator can operate with a small input–output differential voltage. LDO voltage regulators may offer fast transient response, wide input voltage range, low quiescent current and low noise with high PSRR.
