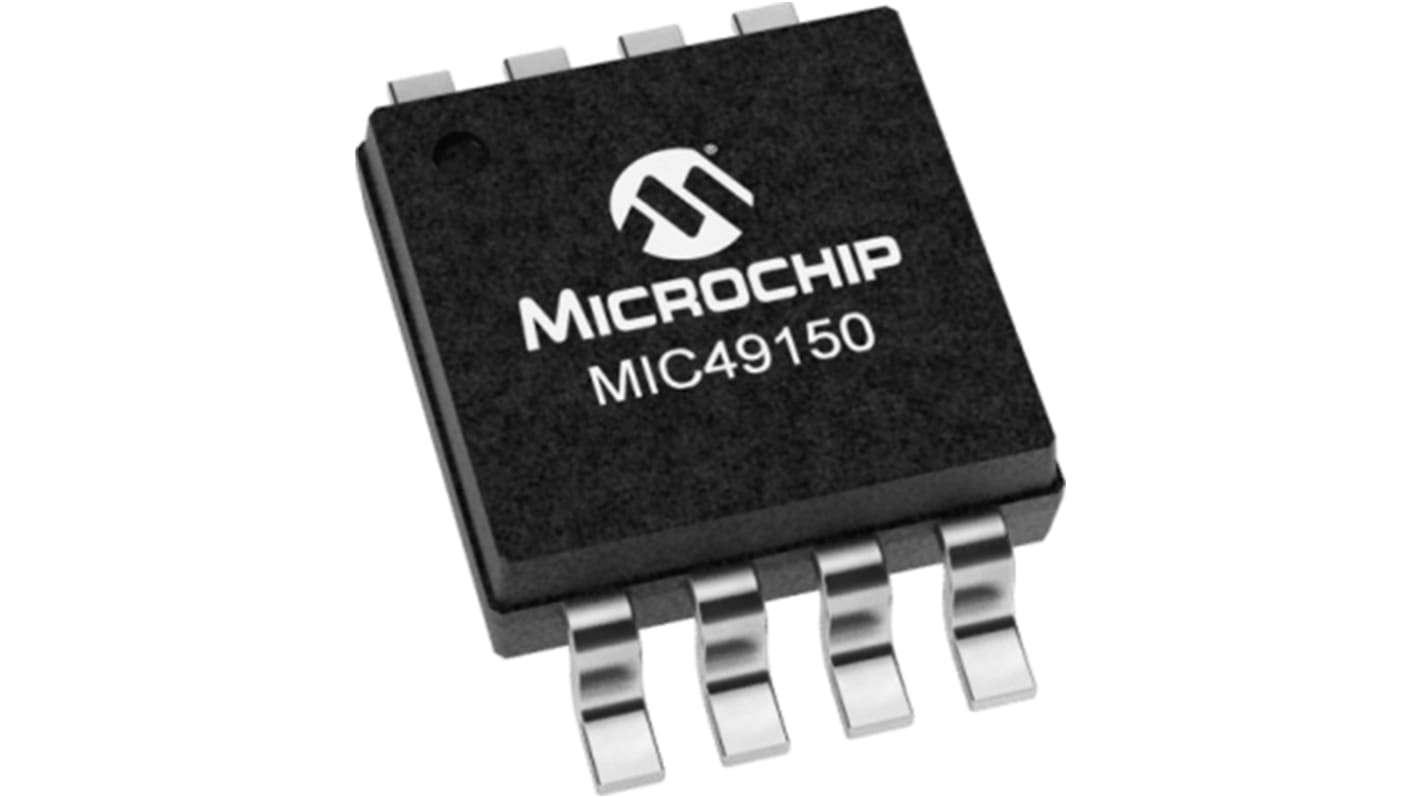

Microchip MIC49150-1.2WR, 1 Low Dropout Voltage, Voltage Regulator 1.5A, 1.2 V 5-Pin, SPAK
- RS Stock No.:
- 177-0439
- Mfr. Part No.:
- MIC49150-1.2WR
- Brand:
- Microchip
40 In stock - FREE next working day delivery available
Price Each (In a Tube of 48)
£2.104
(exc. VAT)
£2.525
(inc. VAT)
Units | Per unit | Per Tube* |
---|---|---|
48 + | £2.104 | £100.992 |
*price indicative
- RS Stock No.:
- 177-0439
- Mfr. Part No.:
- MIC49150-1.2WR
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
The MIC49150 is a high-bandwidth, low-dropout, 1.5A voltage regulator ideal for powering core voltages of low power microprocessors. The MIC49150 implements a dual supply configuration allowing for very low output impedance and very fast transient response.The MIC49150 requires a bias input supply and a main input supply, allowing for ultra-low input voltages on the main supply rail. The input supply operates from 1.4V to 6.5V and the bias supply requires between 3V and 6.5V or proper operation.
Input voltage range:
VIN: 1.4V to 6.5V
VBIAS: 3.0V to 6.5V
Stable with 1μF ceramic capacitor
±1% initial tolerance
Maximum dropout voltage (VIN-VOUT) of 500mV over temperature
Input voltage range:
VIN: 1.4V to 6.5V
VBIAS: 3.0V to 6.5V
Stable with 1μF ceramic capacitor
±1% initial tolerance
VIN: 1.4V to 6.5V
VBIAS: 3.0V to 6.5V
Stable with 1μF ceramic capacitor
±1% initial tolerance
Maximum dropout voltage (VIN-VOUT) of 500mV over temperature
Input voltage range:
VIN: 1.4V to 6.5V
VBIAS: 3.0V to 6.5V
Stable with 1μF ceramic capacitor
±1% initial tolerance
Specifications
Attribute | Value |
---|---|
Regulator Type | Low Dropout Voltage |
Maximum Output Current | 1.5A |
Output Voltage | 1.2 V |
Number of Outputs | 1 |
Line Regulation | ±1 %/V |
Load Regulation | 1.5 % |
Accuracy | ±2% |
Mounting Type | Surface Mount |
Package Type | SPAK |
Reference Voltage | 0.91V |
Pin Count | 5 |
Output Type | Fixed |
Dimensions | 9.52 x 8.13 x 2.03mm |
Maximum Input Voltage | 6.5 V |
Minimum Input Voltage | 1.4 V |
Minimum Operating Temperature | -40 °C |
Height | 2.03mm |
Maximum Operating Temperature | +125 °C |
Width | 8.13mm |
Length | 9.52mm |
