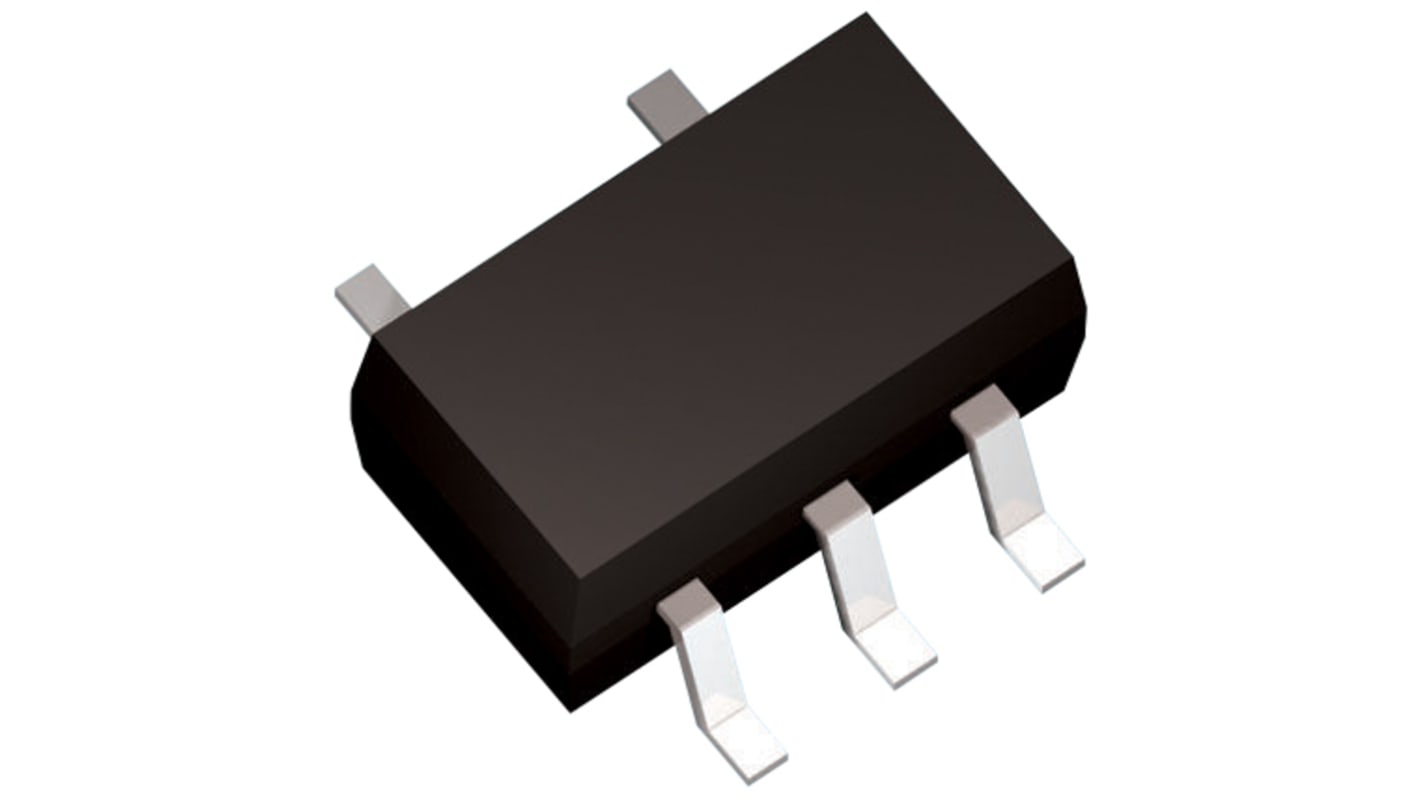

onsemi NCP716BSN330T1G, 1 Low Dropout Voltage, Voltage Regulator 150mA, 3.3 V 5-Pin, TSOP
- RS Stock No.:
- 171-8415
- Mfr. Part No.:
- NCP716BSN330T1G
- Brand:
- onsemi
Available to back order for despatch 14/11/2024
Added
Price Each (In a Pack of 25)
£1.08
(exc. VAT)
£1.30
(inc. VAT)
| Units | Per unit | Per Pack* |
| 25 - 75 | £1.08 | £27.00 |
| 100 - 475 | £0.733 | £18.325 |
| 500 - 975 | £0.695 | £17.375 |
| 1000 - 2975 | £0.541 | £13.525 |
| 3000 + | £0.512 | £12.80 |
| *price indicative | ||
- RS Stock No.:
- 171-8415
- Mfr. Part No.:
- NCP716BSN330T1G
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
Product Details
The NCP716B is 150 mA LDO Linear Voltage Regulator. It is a very stable and accurate device with ultra−low ground current consumption (4.7 uA over the full output load range) and a wide input voltage range (up to 24 V). The regulator incorporates several protection features such as Thermal Shutdown and Current Limiting, Short Circuit Protection. The NCP716B is an ideal choice for Portable Devices with Low Standby Current Requirements.
Wide Input Voltage Range: Up to 24V
Compatible with most battery sources and DC output voltage adapters
Ultra-Low Quiescent current: 3.2uA Typical
Helps to reduce the current consumption
Fixed Output Voltage Options: from 1.5V to 5.0V
Very-well suited to power low supply voltage microcontrollers or sensors
Power Supply Rejection Ratio: 55dB @ 100kHz
Provides very good input to output voltage isolation
Package: TSOP-5 / SOT-23-5
Offers very small overall solution size
Portable Equipment
Communication Systems
Consumer Electronics Devices
Portable Medical Devices
Power Supply Adapters
Industrial Sensors
Smart Energy Meters
Home Automation
Notebook Adapters
Wireless Charging Systems
Smoke Sensors
Battery Powered Power Tools
Electronic Thermostats
Zigbee & Bluetooth Low Energy Enabled Devices
Key Fobs
Electronic Wristbands
Compatible with most battery sources and DC output voltage adapters
Ultra-Low Quiescent current: 3.2uA Typical
Helps to reduce the current consumption
Fixed Output Voltage Options: from 1.5V to 5.0V
Very-well suited to power low supply voltage microcontrollers or sensors
Power Supply Rejection Ratio: 55dB @ 100kHz
Provides very good input to output voltage isolation
Package: TSOP-5 / SOT-23-5
Offers very small overall solution size
Portable Equipment
Communication Systems
Consumer Electronics Devices
Portable Medical Devices
Power Supply Adapters
Industrial Sensors
Smart Energy Meters
Home Automation
Notebook Adapters
Wireless Charging Systems
Smoke Sensors
Battery Powered Power Tools
Electronic Thermostats
Zigbee & Bluetooth Low Energy Enabled Devices
Key Fobs
Electronic Wristbands
Specifications
Attribute | Value |
|---|---|
| Regulator Type | Low Dropout Voltage |
| Maximum Output Current | 150mA |
| Output Voltage | 3.3 V |
| Number of Outputs | 1 |
| Line Regulation | 10 mV |
| Load Regulation | 0.007 %/mA |
| Accuracy | ±2% |
| Polarity | Positive |
| Mounting Type | Surface Mount |
| Quiescent Current | 4.7µA |
| Package Type | TSOP |
| Pin Count | 5 |
| Output Type | Fixed |
| Dimensions | 3.15 x 1.65 x 1mm |
| Minimum Input Voltage | 2.5 V |
| Height | 1mm |
| Maximum Input Voltage | 24 V |
| Maximum Operating Temperature | +150 °C |
| Length | 3.15mm |
| Width | 1.65mm |
