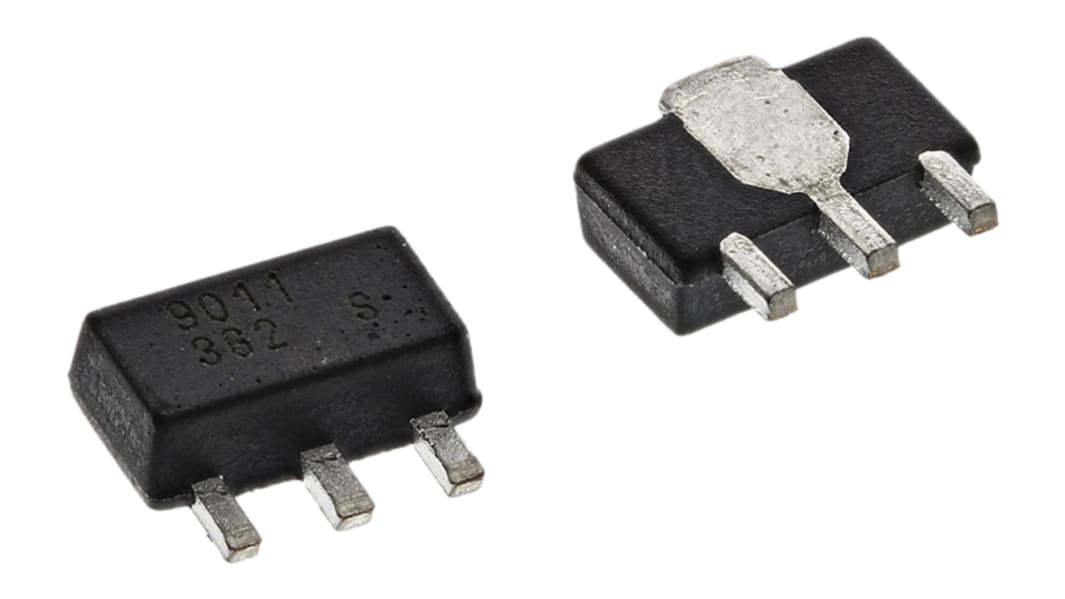

Taiwan Semiconductor TS9011SCY RMG, 1 Low Dropout Voltage, Voltage Regulator 250mA, 3.3 V 4-Pin, SOT-89
- RS Stock No.:
- 169-8950
- Mfr. Part No.:
- TS9011SCY RMG
- Brand:
- Taiwan Semiconductor
1 / 1
Subtotal (1 reel of 1000 units)**
£206.00
(exc. VAT)
£247.00
(inc. VAT)
3000 In stock - FREE next working day delivery available*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Check stock levels
Units | Per unit | Per Reel** |
|---|---|---|
| 1000 + | £0.206 | £206.00 |
**price indicative
- RS Stock No.:
- 169-8950
- Mfr. Part No.:
- TS9011SCY RMG
- Brand:
- Taiwan Semiconductor
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Taiwan Semiconductor | |
| Regulator Type | Low Dropout Voltage | |
| Maximum Output Current | 250mA | |
| Number of Outputs | 1 | |
| Output Voltage | 3.3 V | |
| Line Regulation | 0.3 % | |
| Accuracy | ±2% | |
| Load Regulation | 80 mV | |
| Mounting Type | Surface Mount | |
| Polarity | Positive | |
| Quiescent Current | 0.002mA | |
| Package Type | SOT-89 | |
| Pin Count | 4 | |
| Power Rating | 0.5W | |
| Output Type | Fixed | |
| Dimensions | 4.6 x 2.6 x 1.6mm | |
| Minimum Operating Temperature | -40 °C | |
| Height | 1.6mm | |
| Maximum Input Voltage | 12 V | |
| Maximum Operating Temperature | +150 °C | |
| Length | 4.6mm | |
| Width | 2.6mm | |
Select all | ||
|---|---|---|
Brand Taiwan Semiconductor | ||
Regulator Type Low Dropout Voltage | ||
Maximum Output Current 250mA | ||
Number of Outputs 1 | ||
Output Voltage 3.3 V | ||
Line Regulation 0.3 % | ||
Accuracy ±2% | ||
Load Regulation 80 mV | ||
Mounting Type Surface Mount | ||
Polarity Positive | ||
Quiescent Current 0.002mA | ||
Package Type SOT-89 | ||
Pin Count 4 | ||
Power Rating 0.5W | ||
Output Type Fixed | ||
Dimensions 4.6 x 2.6 x 1.6mm | ||
Minimum Operating Temperature -40 °C | ||
Height 1.6mm | ||
Maximum Input Voltage 12 V | ||
Maximum Operating Temperature +150 °C | ||
Length 4.6mm | ||
Width 2.6mm | ||
