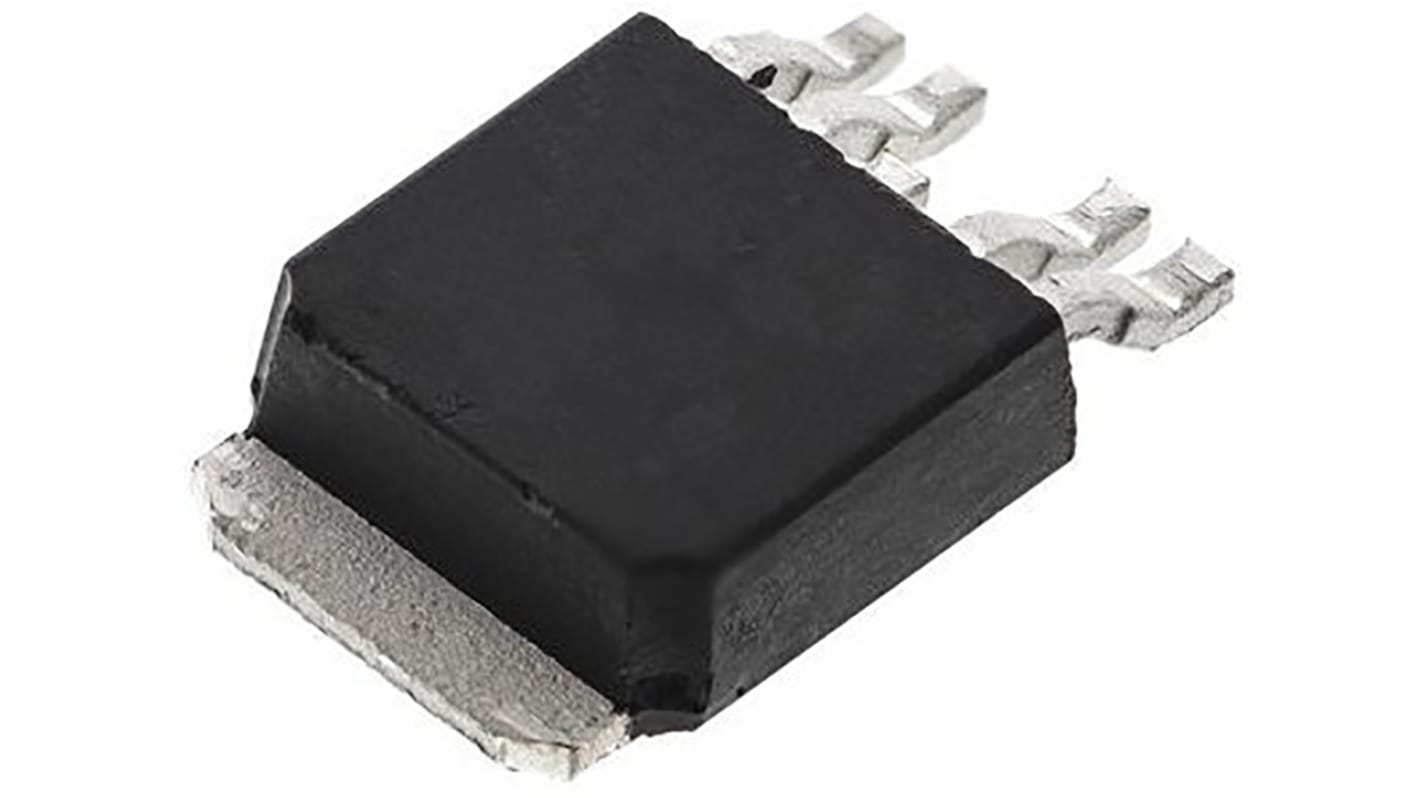

ON Semiconductor NCP5504DTRKG, Dual LDO Regulator, 250mA Adj./Fixed, 3.3 V, 1.25 → 5 V, ±2% 5-Pin, DPAK
- RS Stock No.:
- 163-1006
- Mfr. Part No.:
- NCP5504DTRKG
- Brand:
- ON Semiconductor
Stock information currently inaccessible
- RS Stock No.:
- 163-1006
- Mfr. Part No.:
- NCP5504DTRKG
- Brand:
- ON Semiconductor
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ON Semiconductor | |
| Regulator Type | Low Dropout Voltage | |
| Maximum Output Current | 250mA | |
| Number of Outputs | 2 | |
| Output Voltage | 3.3 V, 1.25 → 5 V | |
| Line Regulation | 15 mV | |
| Accuracy | ±2% | |
| Load Regulation | 15 mV | |
| Polarity | Positive | |
| Mounting Type | Surface Mount | |
| Quiescent Current | 450µA | |
| Package Type | DPAK | |
| Pin Count | 5 | |
| Output Type | Adjustable, Fixed | |
| Dimensions | 6.73 x 6.22 x 2.38mm | |
| Maximum Operating Temperature | +85 °C | |
| Maximum Input Voltage | 18 V | |
| Minimum Operating Temperature | -25 °C | |
| Height | 2.38mm | |
| Length | 6.73mm | |
| Width | 6.22mm | |
| Select all | ||
|---|---|---|
Brand ON Semiconductor | ||
Regulator Type Low Dropout Voltage | ||
Maximum Output Current 250mA | ||
Number of Outputs 2 | ||
Output Voltage 3.3 V, 1.25 → 5 V | ||
Line Regulation 15 mV | ||
Accuracy ±2% | ||
Load Regulation 15 mV | ||
Polarity Positive | ||
Mounting Type Surface Mount | ||
Quiescent Current 450µA | ||
Package Type DPAK | ||
Pin Count 5 | ||
Output Type Adjustable, Fixed | ||
Dimensions 6.73 x 6.22 x 2.38mm | ||
Maximum Operating Temperature +85 °C | ||
Maximum Input Voltage 18 V | ||
Minimum Operating Temperature -25 °C | ||
Height 2.38mm | ||
Length 6.73mm | ||
Width 6.22mm | ||
- COO (Country of Origin):
- MY
