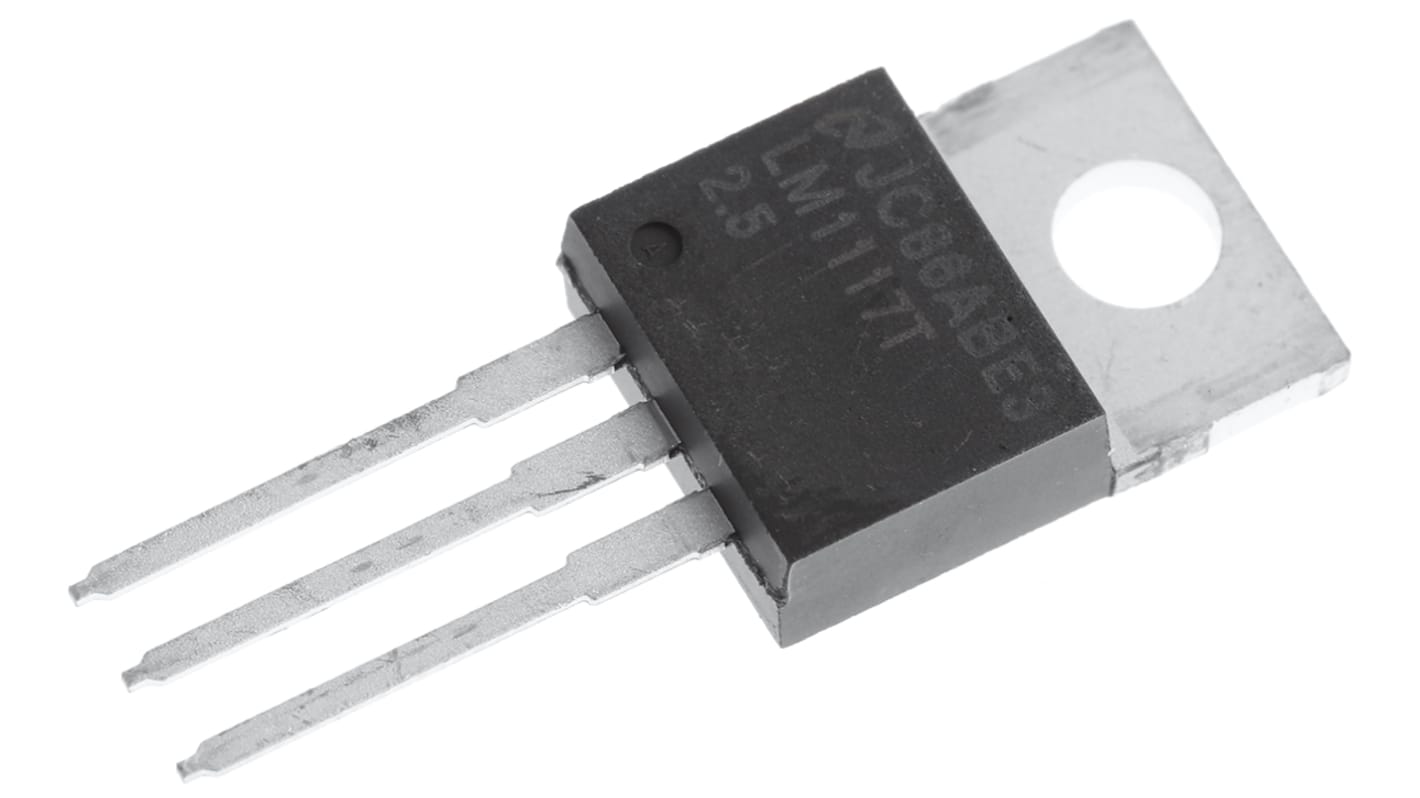

800mA,2.5V,LDO Voltage Reg.,LM1117T-2.5
- RS Stock No.:
- 145-0634
- Mfr. Part No.:
- LM1117T-2.5/NOPB
- Brand:
- Texas Instruments
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 145-0634
- Mfr. Part No.:
- LM1117T-2.5/NOPB
- Brand:
- Texas Instruments
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Maximum Output Current | 800mA | |
| Regulator Type | Low Dropout Voltage | |
| Output Voltage | 2.5 V | |
| Number of Outputs | 1 | |
| Line Regulation | 1 mV | |
| Load Regulation | 1 mV | |
| Accuracy | ±1% | |
| Polarity | Positive | |
| Mounting Type | Through Hole | |
| Package Type | TO-220 | |
| Pin Count | 3 | |
| Output Type | Fixed | |
| Dimensions | 10.16 x 4.7 x 8.89mm | |
| Height | 8.89mm | |
| Maximum Input Voltage | 15 V | |
| Minimum Operating Temperature | 0 °C | |
| Maximum Operating Temperature | +125 °C | |
| Width | 4.7mm | |
| Length | 10.16mm | |
