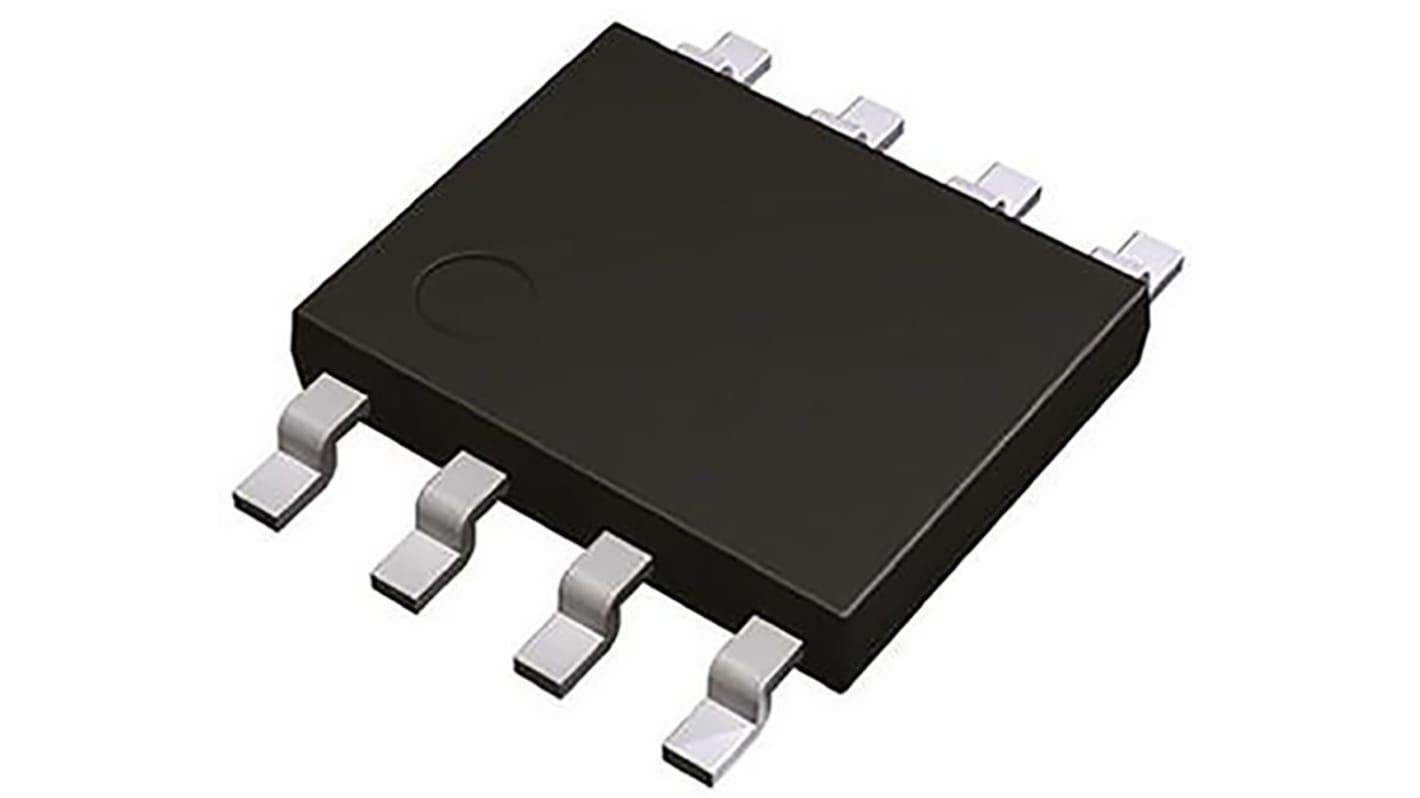

ROHM BD33FC0WEFJ-E2, 1 Low Dropout Voltage, Voltage Regulator 1A, 1 → 15 V 8-Pin, HTSOP-J
- RS Stock No.:
- 128-8869
- Mfr. Part No.:
- BD33FC0WEFJ-E2
- Brand:
- ROHM
Discontinued
- RS Stock No.:
- 128-8869
- Mfr. Part No.:
- BD33FC0WEFJ-E2
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Maximum Output Current | 1A | |
| Regulator Type | Low Dropout Voltage | |
| Number of Outputs | 1 | |
| Output Voltage | 1 → 15 V | |
| Line Regulation | 80 mV | |
| Load Regulation | 0.3 V | |
| Accuracy | ±1% | |
| Polarity | Positive | |
| Mounting Type | Surface Mount | |
| Package Type | HTSOP-J | |
| Pin Count | 8 | |
| Reference Voltage | 0.74 → 0.75V | |
| Output Type | Adjustable | |
| Dimensions | 4.9 x 3.9 x 0.85mm | |
| Height | 0.85mm | |
| Minimum Input Voltage | 4 V | |
| Minimum Operating Temperature | -25 °C | |
| Maximum Input Voltage | 26 V | |
| Maximum Operating Temperature | +85 °C | |
| Length | 4.9mm | |
| Width | 3.9mm | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Maximum Output Current 1A | ||
Regulator Type Low Dropout Voltage | ||
Number of Outputs 1 | ||
Output Voltage 1 → 15 V | ||
Line Regulation 80 mV | ||
Load Regulation 0.3 V | ||
Accuracy ±1% | ||
Polarity Positive | ||
Mounting Type Surface Mount | ||
Package Type HTSOP-J | ||
Pin Count 8 | ||
Reference Voltage 0.74 → 0.75V | ||
Output Type Adjustable | ||
Dimensions 4.9 x 3.9 x 0.85mm | ||
Height 0.85mm | ||
Minimum Input Voltage 4 V | ||
Minimum Operating Temperature -25 °C | ||
Maximum Input Voltage 26 V | ||
Maximum Operating Temperature +85 °C | ||
Length 4.9mm | ||
Width 3.9mm | ||
- COO (Country of Origin):
- JP
LDO (Low Dropout) Linear Voltage Regulators, 1A to 5A, ROHM Semiconductor
LDO (Low Dropout) Linear Voltage Regulators, ROHM Semiconductor
The Low dropout or LDO is a linear voltage regulator. We have a wide range of linear regulators. The LDO regulator can operate with a small input–output differential voltage. LDO voltage regulators may offer fast transient response, wide input voltage range, low quiescent current and low noise with high PSRR.
