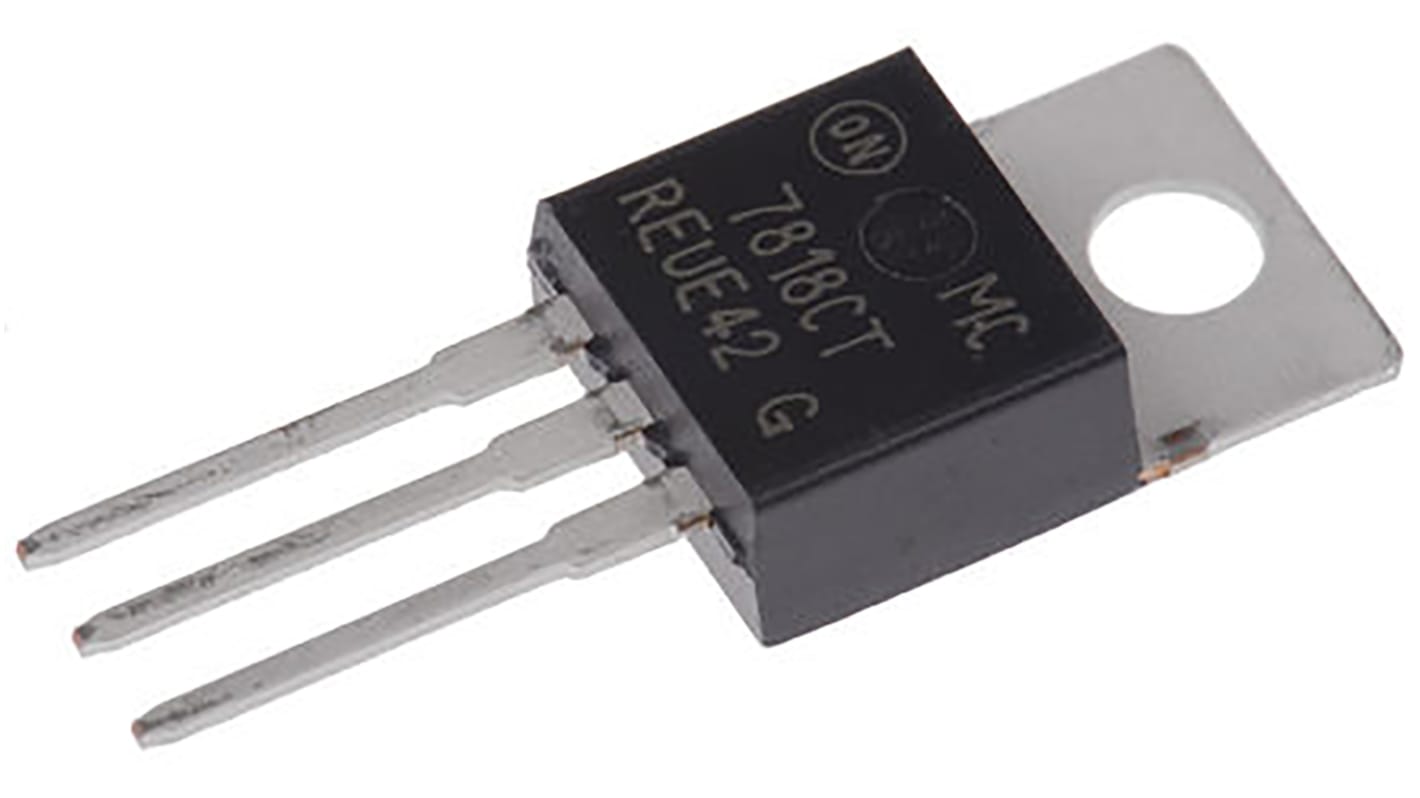

onsemi MC7818CTG, 1 Linear Voltage, Voltage Regulator 2.2A, 18 V 3-Pin, TO-220

RS Stock No.:: 125-0052
Mfr. Part No.:: MC7818CTG
Brand:: onsemi

onsemi MC7818CTG, 1 Linear Voltage, Voltage Regulator 2.2A, 18 V 3-Pin, TO-220

500 In stock - FREE next working day delivery available

100 available from Europe for delivery within 1 working day(s).

Estimated Total Price (50 Units)

£25.65

(exc. VAT)

£30.80

(inc. VAT)

Units	Per unit	Per Tube*
50 - 50	£0.513	£25.65
100 - 200	£0.487	£24.35
250 - 450	£0.462	£23.10
500 +	£0.436	£21.80
*price indicative

RS Stock No.:: 125-0052
Mfr. Part No.:: MC7818CTG
Brand:: onsemi

ESD Control Selection Guide V1
Datasheet

RS Stock No.:: 125-0052
Mfr. Part No.:: MC7818CTG
Brand:: onsemi

ESD Control Selection Guide V1
Datasheet

Attribute	Value
Regulator Type	Linear Voltage
Maximum Output Current	2.2A
Number of Outputs	1
Output Voltage	18 V
Line Regulation	50 mV
Load Regulation	55 mV
Accuracy	±4%
Mounting Type	Through Hole
Polarity	Positive
Package Type	TO-220
Quiescent Current	3.5mA
Pin Count	3
Output Type	Fixed
Dimensions	10.28 x 4.82 x 30.02mm
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	0 °C
Height	30.02mm
Maximum Input Voltage	35 V
Width	4.82mm
Length	10.28mm

Attribute	Value
Regulator Type	Linear Voltage
Maximum Output Current	2.2A
Number of Outputs	1
Output Voltage	18 V
Line Regulation	50 mV
Load Regulation	55 mV
Accuracy	±4%
Mounting Type	Through Hole
Polarity	Positive
Package Type	TO-220
Quiescent Current	3.5mA
Pin Count	3
Output Type	Fixed
Dimensions	10.28 x 4.82 x 30.02mm
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	0 °C
Height	30.02mm
Maximum Input Voltage	35 V
Width	4.82mm
Length	10.28mm

onsemi MC7818CTG, 1 Linear Voltage, Voltage Regulator 2.2A, 18 V 3-Pin, TO-220

7818 Linear Voltage Regulator, ON Semiconductor

7818 Linear Voltage Regulator, ON Semiconductor
