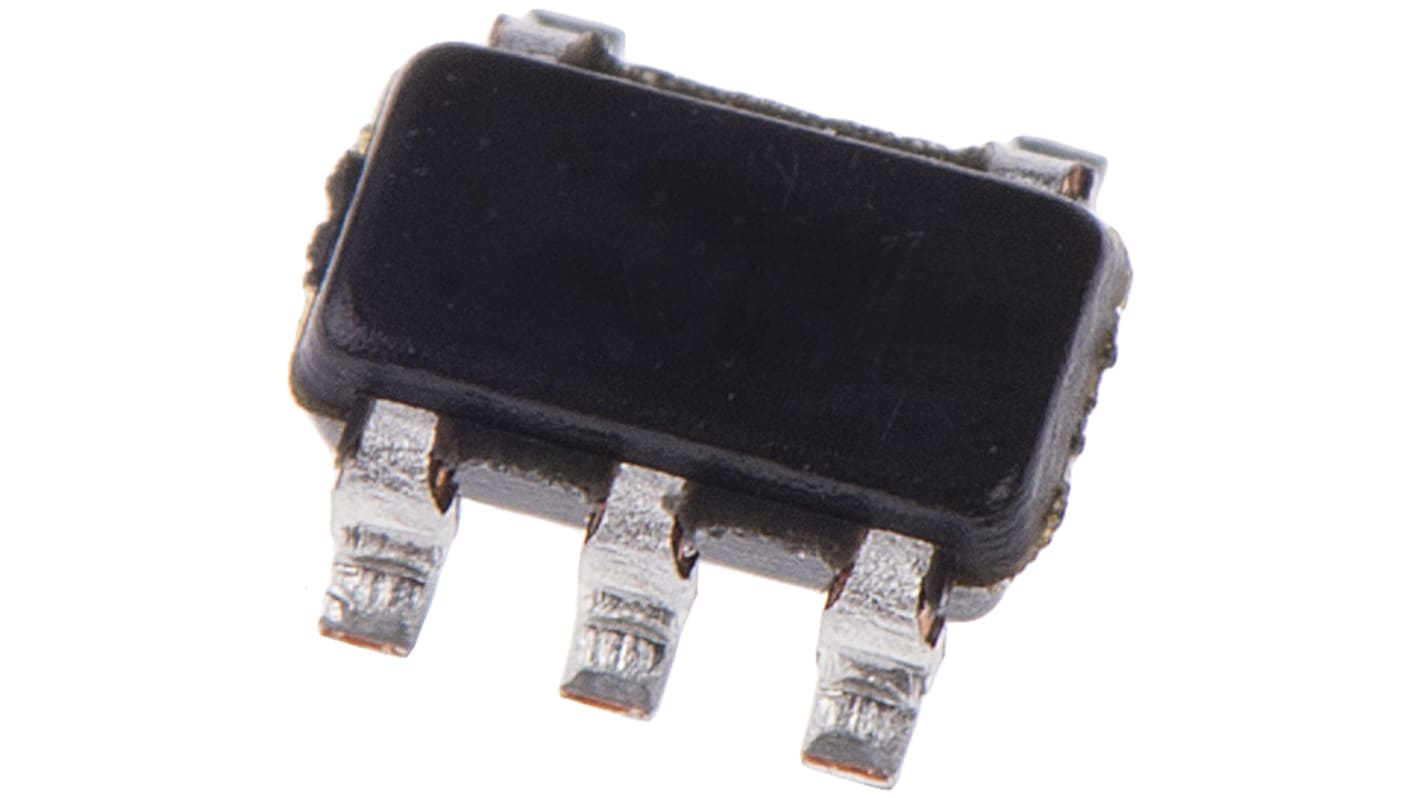

DiodesZetex AP2204K-ADJTRG1, 1 Low Dropout Voltage, Voltage Regulator 150mA, 1.24 → 22 V 5-Pin, SOT-23

View all Voltage Regulators
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
122-3358
Mfr. Part No.:
AP2204K-ADJTRG1
Brand:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

Regulator Type

Low Dropout Voltage

Maximum Output Current

150mA

Number of Outputs

1

Output Voltage

1.24 → 22 V

Line Regulation

0.05 %

Load Regulation

0.5 %

Polarity

Positive

Mounting Type

Surface Mount

Quiescent Current

50µA

Package Type

SOT-23

Reference Voltage

1.24V

Pin Count

5

Output Type

Adjustable

Dimensions

3.02 x 1.7 x 1.3mm

Maximum Input Voltage

24 V

Height

1.3mm

Maximum Operating Temperature

+85 °C

Minimum Input Voltage

2.3 V

Minimum Operating Temperature

-40 °C

Length

3.02mm

Width

1.7mm

COO (Country of Origin):
CN

LDO (Low Dropout) Linear Voltage Regulators, Adjustable Output, Diodes Inc



LDO (Low Dropout) Linear Voltage Regulators, Diodes Inc


The Low dropout or LDO is a linear voltage regulator. We have a wide range of linear regulators. The LDO regulator can operate with a small input–output differential voltage. LDO voltage regulators may offer fast transient response, wide input voltage range, low quiescent current and low noise with high PSRR.
