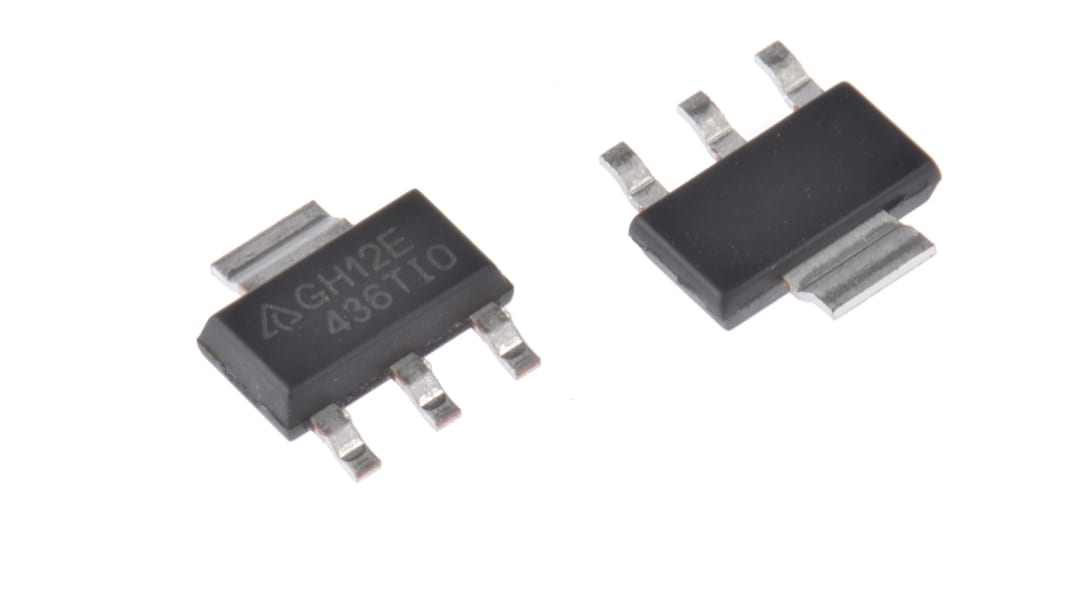

DiodesZetex AP2114H-3.3TRG1, 1 Low Dropout Voltage, Voltage Regulator 1A, 3.3 V 3+Tab-Pin, SOT-223

RS Stock No.:: 122-3351
Mfr. Part No.:: AP2114H-3.3TRG1
Brand:: DiodesZetex

DiodesZetex AP2114H-3.3TRG1, 1 Low Dropout Voltage, Voltage Regulator 1A, 3.3 V 3+Tab-Pin, SOT-223

5250 In stock - FREE next working day delivery available

Price Each (On a Reel of 4000)

£0.111

(exc. VAT)

£0.133

(inc. VAT)

Units	Per unit	Per Reel*
4000 +	£0.111	£444.00

*price indicative

RS Stock No.:: 122-3351
Mfr. Part No.:: AP2114H-3.3TRG1
Brand:: DiodesZetex

Datasheet
ESD Control Selection Guide V1

Attribute	Value
Maximum Output Current	1A
Regulator Type	Low Dropout Voltage
Output Voltage	3.3 V
Number of Outputs	1
Line Regulation	0.1 %/V
Load Regulation	1 %/A
Accuracy	±1.5%
Mounting Type	Surface Mount
Polarity	Positive
Package Type	SOT-223
Quiescent Current	90µA
Pin Count	3+Tab
Output Type	Fixed
Dimensions	6.7 x 3.7 x 1.7mm
Height	1.7mm
Minimum Operating Temperature	-40 °C
Minimum Input Voltage	2.5 V
Maximum Operating Temperature	+85 °C
Maximum Input Voltage	6 V
Length	6.7mm
Width	3.7mm

DiodesZetex AP2114H-3.3TRG1, 1 Low Dropout Voltage, Voltage Regulator 1A, 3.3 V 3+Tab-Pin, SOT-223

LDO (Low Dropout) Linear Voltage Regulators, 3.3V Output, Diodes Inc
