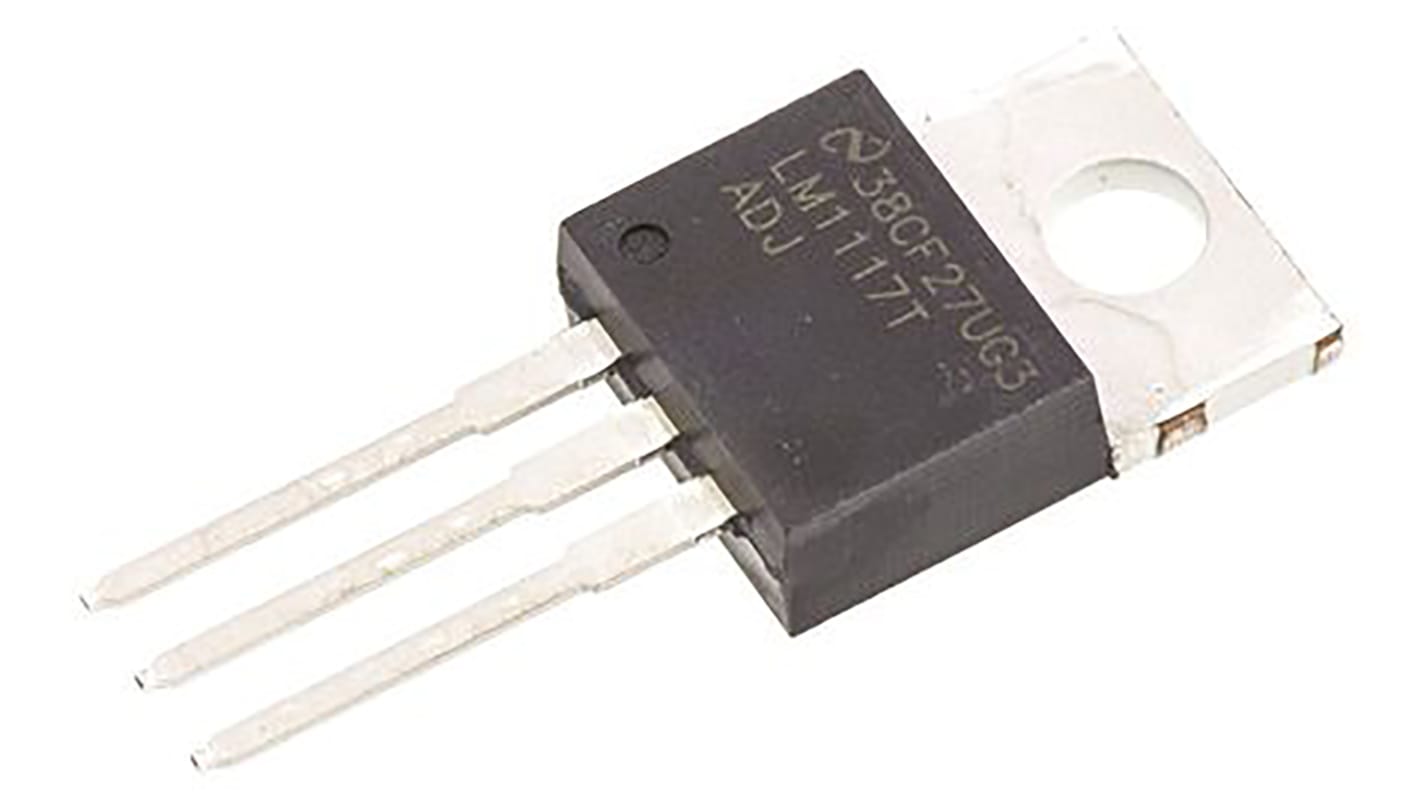

Texas Instruments LM1117T-ADJ/NOPB, 1 Low Dropout Voltage, Voltage Regulator 1.5A, 1.25 → 13.8 V 3-Pin, TO-220

RS Stock No.:: 121-8834
Mfr. Part No.:: LM1117T-ADJ/NOPB
Brand:: Texas Instruments

Texas Instruments LM1117T-ADJ/NOPB, 1 Low Dropout Voltage, Voltage Regulator 1.5A, 1.25 → 13.8 V 3-Pin, TO-220

10 In stock - FREE next working day delivery available

Price Each (In a Tube of 45)

£0.799

(exc. VAT)

£0.959

(inc. VAT)

Units	Per unit	Per Tube*
45 - 45	£0.799	£35.955
90 - 180	£0.777	£34.965
225 - 405	£0.757	£34.065
450 - 630	£0.737	£33.165
675 +	£0.719	£32.355

*price indicative

RS Stock No.:: 121-8834
Mfr. Part No.:: LM1117T-ADJ/NOPB
Brand:: Texas Instruments

ESD Control Selection Guide V1

Attribute	Value
Regulator Type	Low Dropout Voltage
Maximum Output Current	1.5A
Output Voltage	1.25 → 13.8 V
Number of Outputs	1
Line Regulation	0.035 %
Load Regulation	0.2 %
Accuracy	±1%
Polarity	Positive
Mounting Type	Through Hole
Package Type	TO-220
Reference Voltage	1.262V
Pin Count	3
Output Type	Adjustable
Dimensions	10.16 x 4.7 x 8.89mm
Height	8.89mm
Minimum Operating Temperature	0 °C
Maximum Operating Temperature	+125 °C
Maximum Input Voltage	15 V
Length	10.16mm
Width	4.7mm

Texas Instruments LM1117T-ADJ/NOPB, 1 Low Dropout Voltage, Voltage Regulator 1.5A, 1.25 → 13.8 V 3-Pin, TO-220

Adjustable LDO (Low Dropout) Linear Voltage Regulators, 1A to 2A, Texas Instruments
