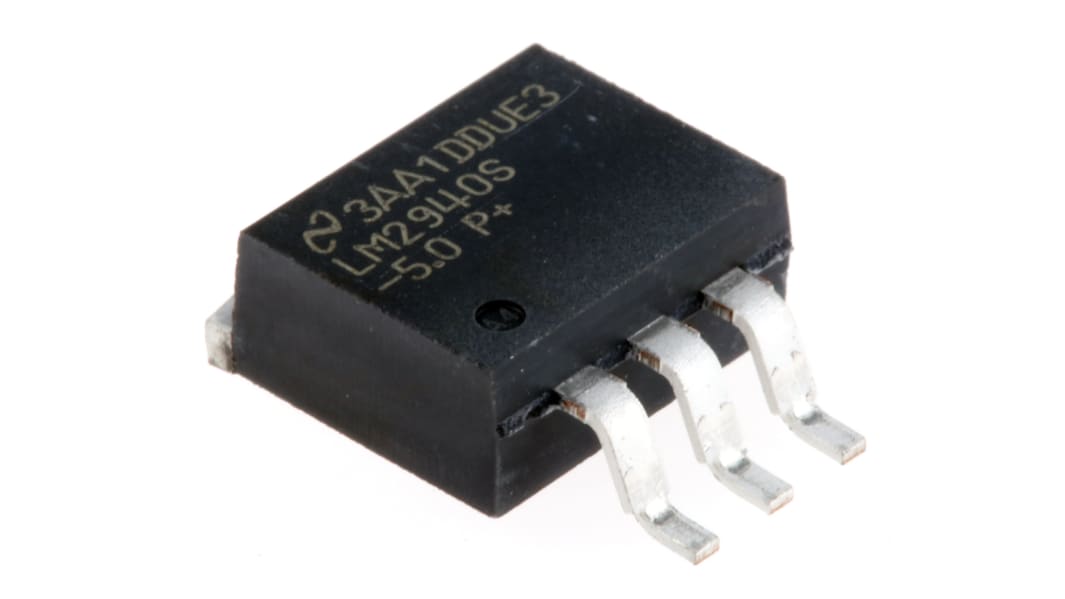

Texas Instruments LM2940S-5.0/NOPB, 1 Low Dropout Voltage, Voltage Regulator 1A, 5 V 3-Pin, D2PAK (TO-263)

RS Stock No.:: 100-0713
Mfr. Part No.:: LM2940S-5.0/NOPB
Brand:: Texas Instruments

Texas Instruments LM2940S-5.0/NOPB, 1 Low Dropout Voltage, Voltage Regulator 1A, 5 V 3-Pin, D2PAK (TO-263)

20 In stock - FREE next working day delivery available

Price Each (In a Tube of 45)

£2.04

(exc. VAT)

£2.45

(inc. VAT)

Units	Per unit	Per Tube*
45 - 45	£2.04	£91.80
90 - 180	£1.938	£87.21
225 - 405	£1.836	£82.62
450 +	£1.734	£78.03

*price indicative

RS Stock No.:: 100-0713
Mfr. Part No.:: LM2940S-5.0/NOPB
Brand:: Texas Instruments

ESD Control Selection Guide V1

Attribute	Value
Regulator Type	Low Dropout Voltage
Maximum Output Current	1A
Number of Outputs	1
Output Voltage	5 V
Line Regulation	50 mV
Load Regulation	50 mV
Mounting Type	Surface Mount
Polarity	Positive
Package Type	D2PAK (TO-263)
Pin Count	3
Output Type	Fixed
Dimensions	10.16 x 8.64 x 4.57mm
Minimum Operating Temperature	-40 °C
Height	4.57mm
Maximum Input Voltage	26 V
Maximum Operating Temperature	+125 °C
Minimum Input Voltage	6.25 V
Length	10.16mm
Width	8.64mm

Texas Instruments LM2940S-5.0/NOPB, 1 Low Dropout Voltage, Voltage Regulator 1A, 5 V 3-Pin, D2PAK (TO-263)

LDO (Low Dropout) Linear Voltage Regulators, 1A, LM29xx/LM39xx/LMS81xx Series, Texas Instruments
