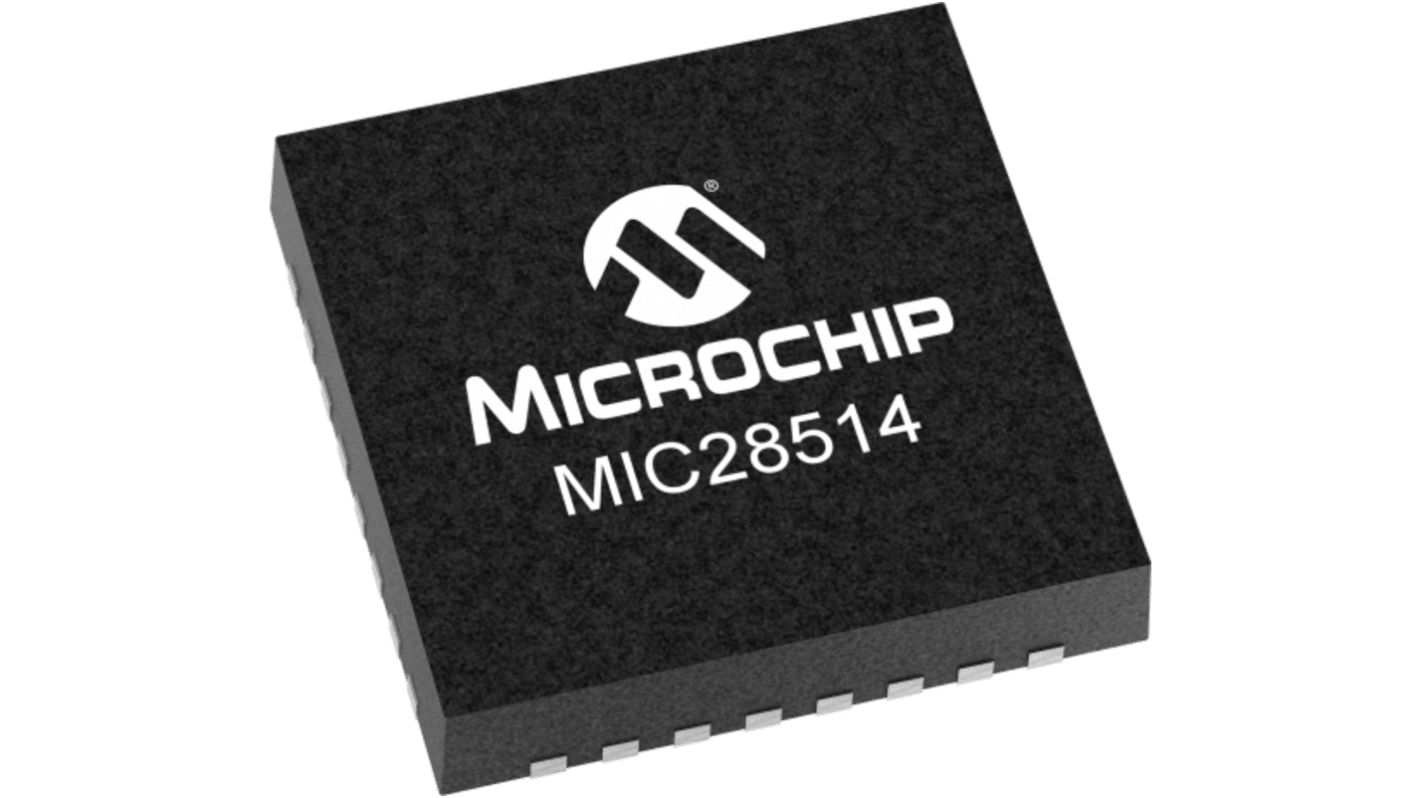

Microchip MIC28514T-E/PHA, 1-Channel Low Dropout Voltage, Voltage Regulator, 5 A, 75 V 800 kHz, VQFN 32-Pin
- RS Stock No.:
- 649-484
- Mfr. Part No.:
- MIC28514T-E/PHA
- Brand:
- Microchip
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 2 units)*
£4.55
(exc. VAT)
£5.46
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3,300 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 2 - 18 | £2.275 | £4.55 |
| 20 - 98 | £2.21 | £4.42 |
| 100 - 198 | £2.145 | £4.29 |
| 200 + | £1.85 | £3.70 |
*price indicative
- RS Stock No.:
- 649-484
- Mfr. Part No.:
- MIC28514T-E/PHA
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Voltage Regulator | |
| Regulator Type | Low Dropout Voltage | |
| Line Regulation | 0.05 % | |
| Switching Frequency | 800kHz | |
| Load Regulation | 0.1 % | |
| Package Type | VQFN | |
| Quiescent Current | 1.25mA | |
| Pin Count | 32 | |
| Output Current | 5A | |
| Switching Regulator | Yes | |
| Series | MIC28514 | |
| Standards/Approvals | AEC-Q104 | |
| Length | 6mm | |
| Height | 6mm | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -40°C | |
| Maximum Input Voltage | 75V | |
| Minimum Input Voltage | 4.5V | |
| Automotive Standard | AEC-Q104 | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Voltage Regulator | ||
Regulator Type Low Dropout Voltage | ||
Line Regulation 0.05 % | ||
Switching Frequency 800kHz | ||
Load Regulation 0.1 % | ||
Package Type VQFN | ||
Quiescent Current 1.25mA | ||
Pin Count 32 | ||
Output Current 5A | ||
Switching Regulator Yes | ||
Series MIC28514 | ||
Standards/Approvals AEC-Q104 | ||
Length 6mm | ||
Height 6mm | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -40°C | ||
Maximum Input Voltage 75V | ||
Minimum Input Voltage 4.5V | ||
Automotive Standard AEC-Q104 | ||
- COO (Country of Origin):
- TW
The Microchip DC-DC Switching Converters and Voltage Regulators is a wide input range (4.5V to 75V) integrated FET, 5A switching regulators. It is leveraging the latest enhanced high voltage COT controllers co-packaged with a pair of low FOM power trench N-Channel FETS with improved avalanche rating. The output voltage is adjustable down to 0.6V with +/- 1% accuracy.
Operation with both internal and external VDD
Output current up to 5A
Supports start up to pre-bias output
Internal compensator for tight output regulation
Enable function for low stand-by current
