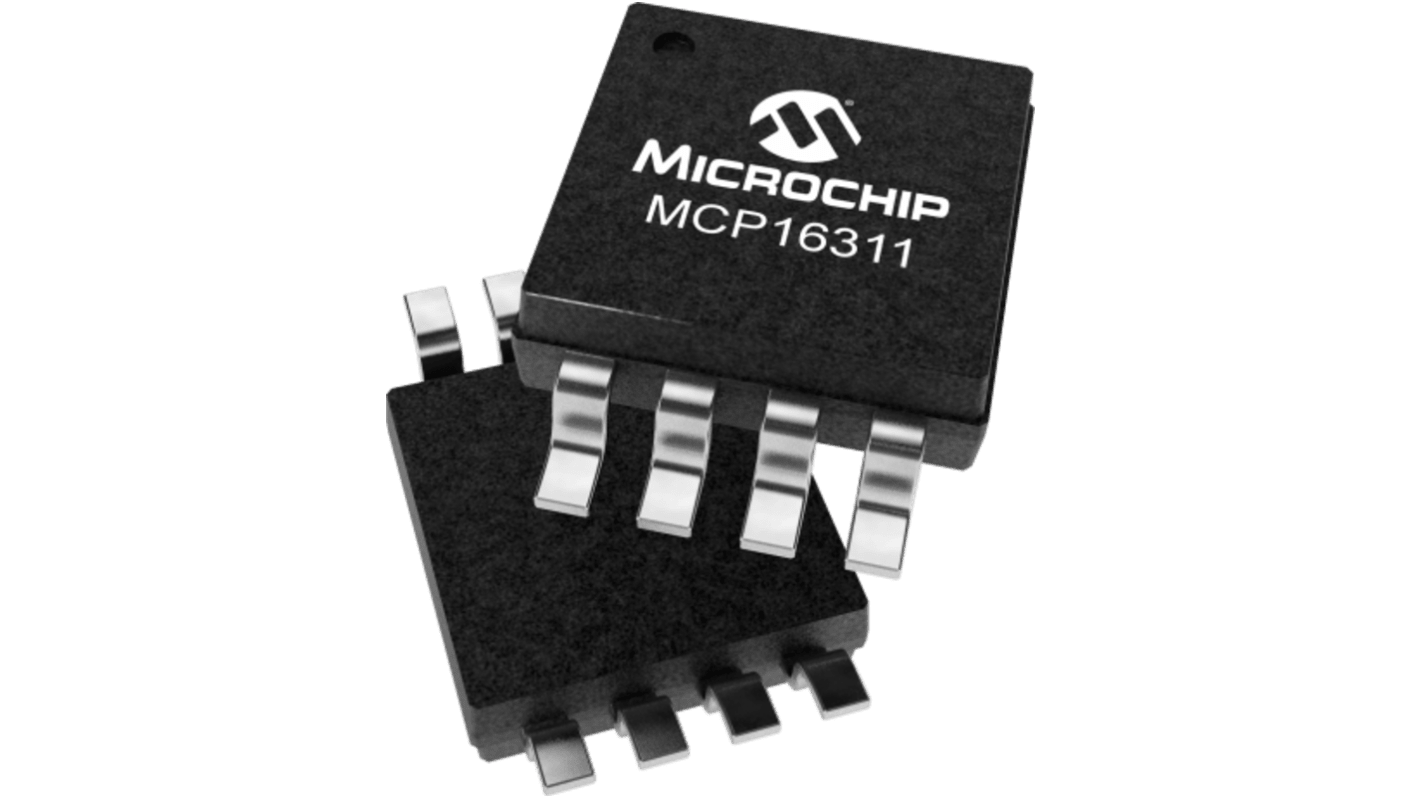

Microchip MCP16311-E/MSVAO, 1-Channel Synchronous Step-Down Voltage Regulator, Voltage Regulator, 1 A, 24 V 500 kHz,
- RS Stock No.:
- 644-286
- Mfr. Part No.:
- MCP16311-E/MSVAO
- Brand:
- Microchip
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 2 units)*
£4.69
(exc. VAT)
£5.628
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 290 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | £2.345 | £4.69 |
| 20 - 48 | £2.275 | £4.55 |
| 50 - 198 | £2.23 | £4.46 |
| 200 - 998 | £1.905 | £3.81 |
| 1000 + | £1.78 | £3.56 |
*price indicative
- RS Stock No.:
- 644-286
- Mfr. Part No.:
- MCP16311-E/MSVAO
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Regulator Type | Synchronous Step-Down Voltage Regulator | |
| Product Type | Voltage Regulator | |
| Line Regulation | 0.15 | |
| Switching Frequency | 500kHz | |
| Load Regulation | 0.25 % | |
| Mount Type | Surface | |
| Package Type | MSOP | |
| Quiescent Current | 44μA | |
| Pin Count | 8 | |
| Output Current | 1A | |
| Switching Regulator | Yes | |
| Series | MCP16311/2 | |
| Standards/Approvals | AEC-Q100 | |
| Minimum Input Voltage | 4.4V | |
| Maximum Operating Temperature | 125°C | |
| Maximum Input Voltage | 30V | |
| Minimum Operating Temperature | -40°C | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Regulator Type Synchronous Step-Down Voltage Regulator | ||
Product Type Voltage Regulator | ||
Line Regulation 0.15 | ||
Switching Frequency 500kHz | ||
Load Regulation 0.25 % | ||
Mount Type Surface | ||
Package Type MSOP | ||
Quiescent Current 44μA | ||
Pin Count 8 | ||
Output Current 1A | ||
Switching Regulator Yes | ||
Series MCP16311/2 | ||
Standards/Approvals AEC-Q100 | ||
Minimum Input Voltage 4.4V | ||
Maximum Operating Temperature 125°C | ||
Maximum Input Voltage 30V | ||
Minimum Operating Temperature -40°C | ||
Automotive Standard AEC-Q100 | ||
- COO (Country of Origin):
- TH
The Microchip DC-DC converter is a compact, high-efficiency, fixed frequency PWM/PFM, synchronous step-down DC-DC converter in a 8-pin MSOP, or 2 x 3 TDFN package that operates from input voltage sources up to 30V. Integrated features include a high-side and a low-side switch, fixed frequency Peak Current Mode Control, internal compensation, peak-current limit and over temperature protection.
Peak current mode control
Cycle-by-cycle peak current limit
4.1V typical to start
3.6V typical to stop
Over temperature protection
