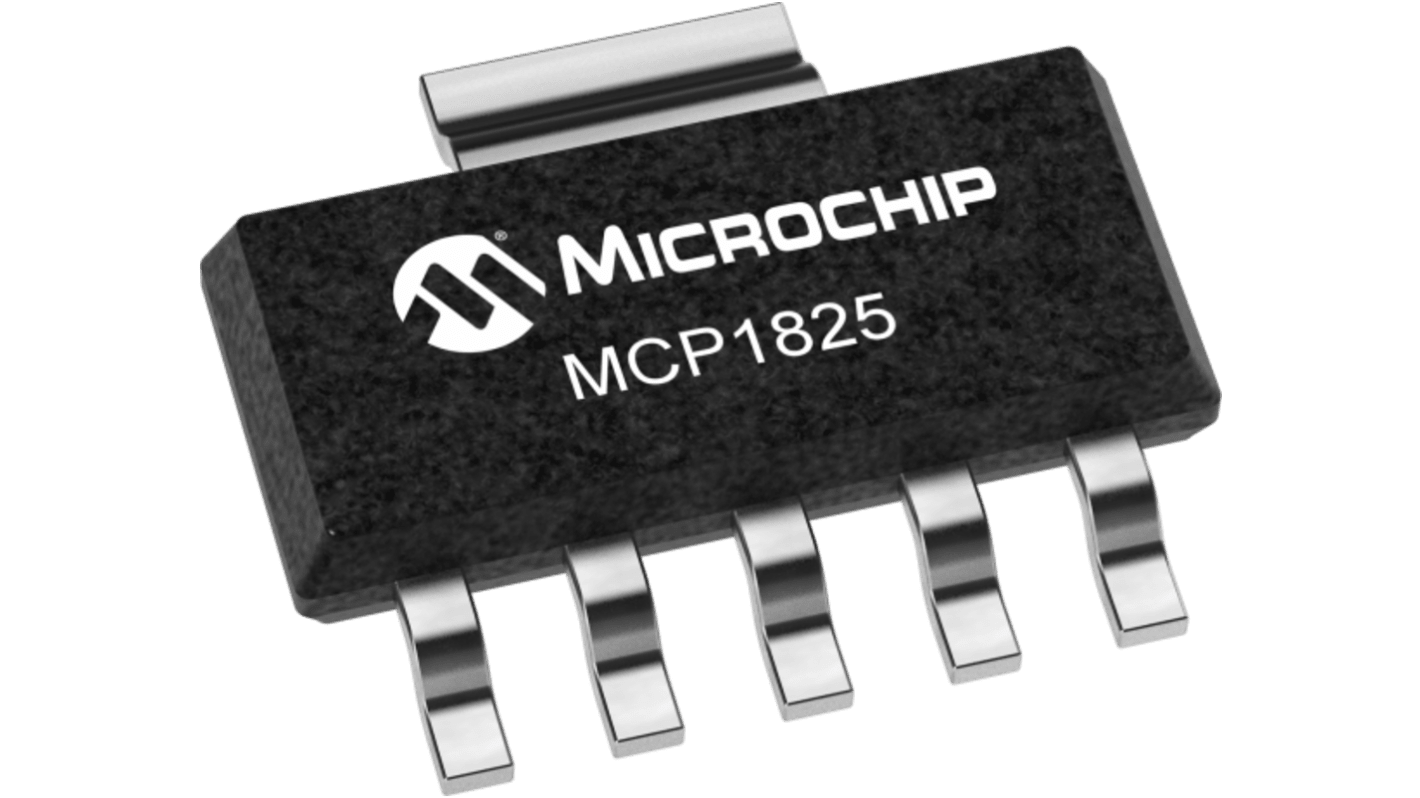

Microchip MCP1825T-3302E/DC, LOD Voltage Regulator 6V SOT-223 5-Pin

View all Voltage Regulators
Bulk discount available

Subtotal (1 tape of 5 units)*

£2.59

(exc. VAT)

£3.11

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 4,000 unit(s) shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tape*
5 - 45£0.518£2.59
50 - 95£0.492£2.46
100 - 495£0.456£2.28
500 - 995£0.422£2.11
1000 +£0.406£2.03

*price indicative

Packaging Options:
RS Stock No.:
352-251
Mfr. Part No.:
MCP1825T-3302E/DC
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Product Type

LOD Voltage Regulator

Package Type

SOT-223

Quiescent Current

120μA

Pin Count

5

Standards/Approvals

AEC-Q100

Width

7.3 mm

Length

6.7mm

Height

1.8mm

Series

MCP1825

Minimum Input Voltage

2.1V

Maximum Operating Temperature

125°C

Maximum Input Voltage

6V

Automotive Standard

AEC-Q100

The Microchip 500 mA Low Dropout (LDO) linear regulator that provides high current and low output voltages. The MCP1825 comes in a fixed or adjustable output voltage version, with an output voltage range of 0.8V to 5.0V. The 500 mA output current capability, combined with the low output voltage capability, make the MCP1825 a good choice for new sub-1.8V output voltage LDO applications that have high current demands. The MCP1825S is a 3-pin fixed voltage version. The MCP1825/MCP1825S is stable using ceramic output capacitors that inherently provide lower output noise and reduce the size and cost of the entire regulator solution. Only 1 μF of output capacitance is needed to stabilize the LDO.

Low dropout voltage 210 mV typical at 500 mA

Output voltage from 0.8V to 5.0V both fixed and adjustable

Stable with 1.0 μF ceramic output capacitor

Power good output with adjustable delay

Low supply current: 120 μA (typ)
