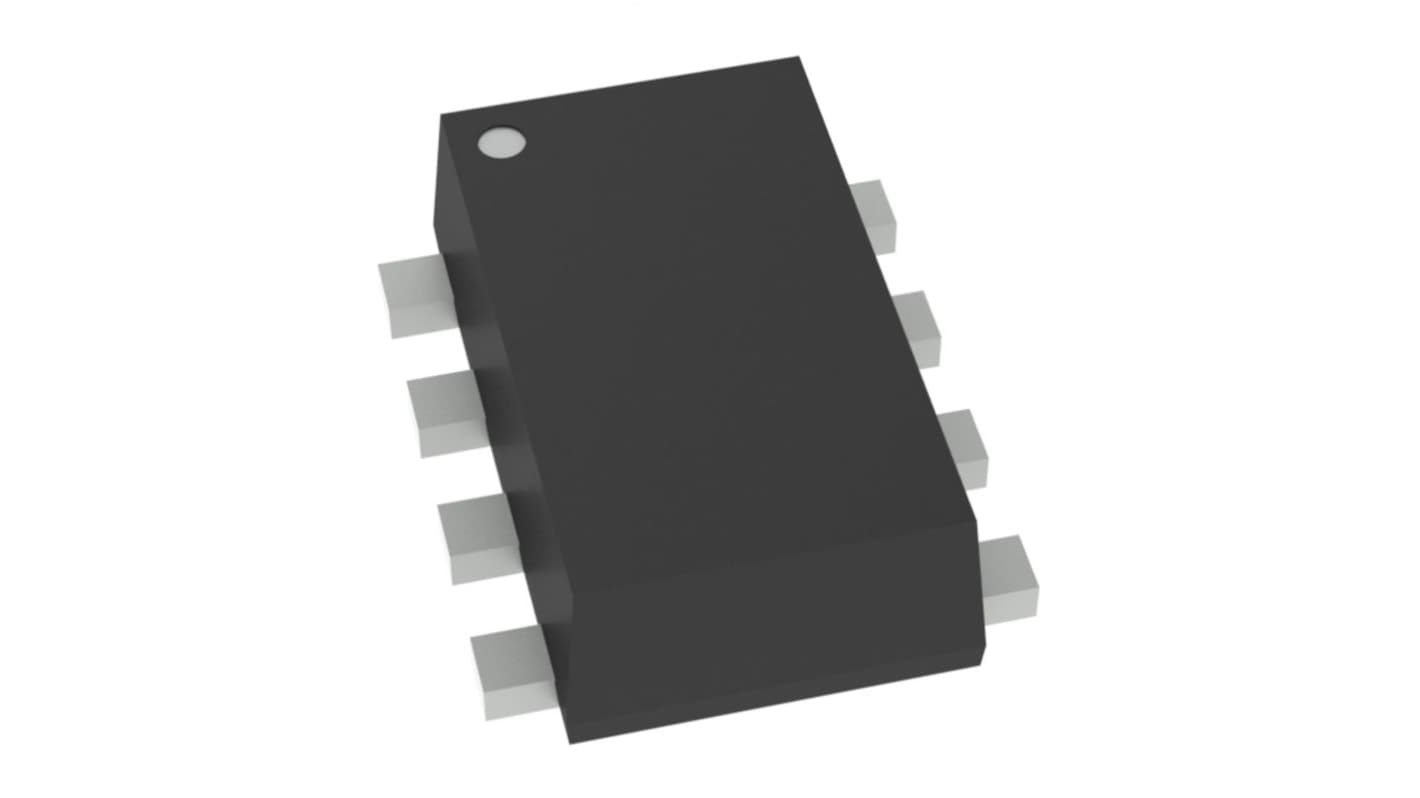

MPS Converter, 0.6 V/ 2 A, 1.2 MHz, 8-Pin SOT-583P
- RS Stock No.:
- 337-114
- Mfr. Part No.:
- MP2182GTL-P
- Brand:
- MPS
Bulk discount available
Subtotal (1 tape of 5 units)*
£4.15
(exc. VAT)
£5.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £0.83 | £4.15 |
| 50 - 95 | £0.788 | £3.94 |
| 100 + | £0.732 | £3.66 |
*price indicative
- RS Stock No.:
- 337-114
- Mfr. Part No.:
- MP2182GTL-P
- Brand:
- MPS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MPS | |
| Product Type | Converter | |
| Output Voltage 1 | 0.6 V | |
| Number of Outputs | 1 | |
| Output Current 1 | 2A | |
| Number of Pins | 8 | |
| Package Type | SOT-583P | |
| Standards/Approvals | No | |
| Maximum Switching Frequency | 1.2MHz | |
| Select all | ||
|---|---|---|
Brand MPS | ||
Product Type Converter | ||
Output Voltage 1 0.6 V | ||
Number of Outputs 1 | ||
Output Current 1 2A | ||
Number of Pins 8 | ||
Package Type SOT-583P | ||
Standards/Approvals No | ||
Maximum Switching Frequency 1.2MHz | ||
- COO (Country of Origin):
- CN
The MPS International Ltd Monolithic step down switch mode converter with built in internal power MOSFETs. It achieves 2A continuous output current from a 2.5V to 5.5V input voltage with excellent load and line regulation. The output voltage can be regulated to as low as 0.6V. The Constant On Time control scheme provides fast transient response and eases loop stabilization. Fault protections include cycle by cycle current limiting and thermal shutdown.
Wide 2.5V to 5.5V operating input range
Output adjustable from 0.6V
Up to 2A output current
80mΩ and 40mΩ internal power MOSFET switches
External soft start control
Short circuit protection with hiccup mode
