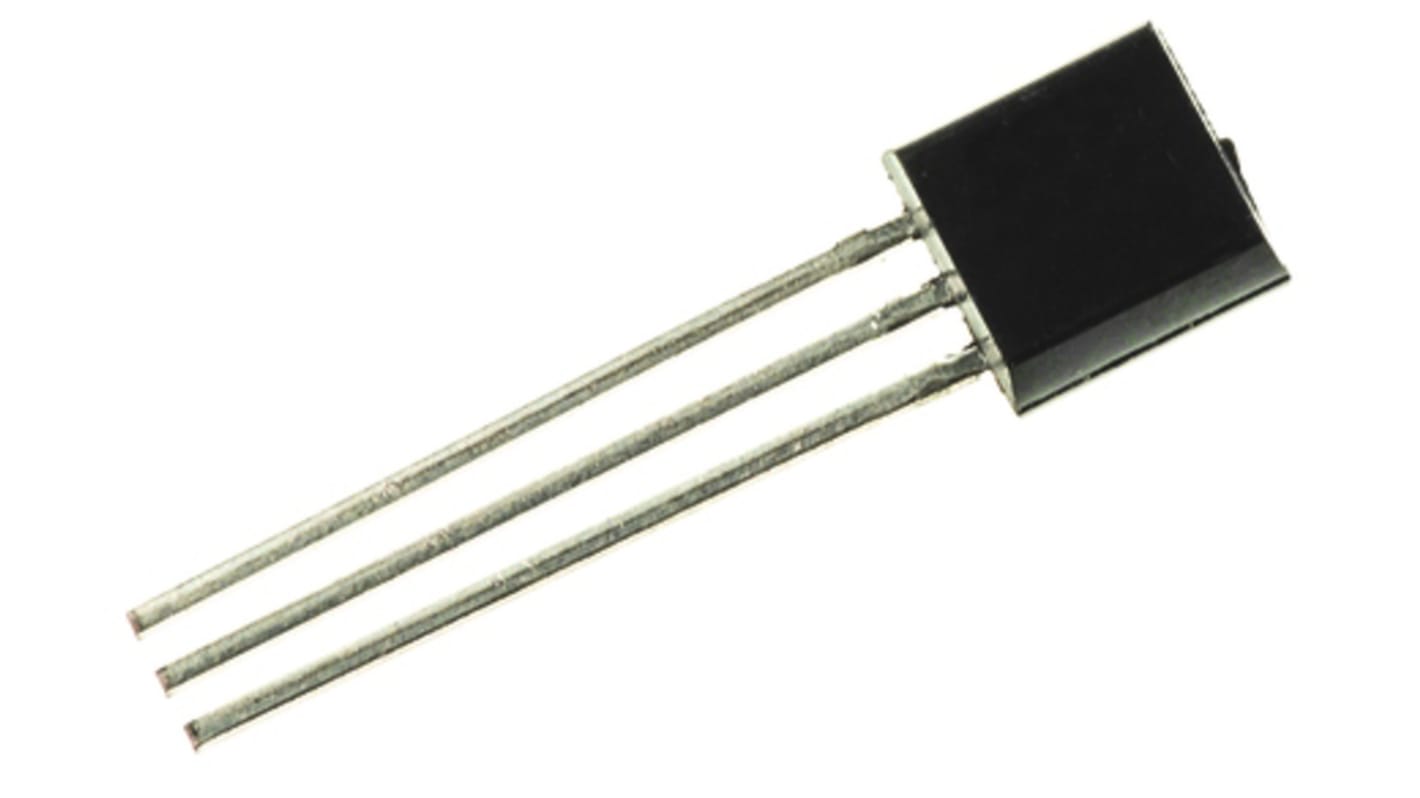

Linear Technology Fixed Shunt Voltage Reference 2.5V ±0.2 % 3-Pin TO-92, LT1009IZ#PBF
- RS Stock No.:
- 884-2600
- Mfr. Part No.:
- LT1009IZ#PBF
- Brand:
- Linear Technology
Discontinued
- RS Stock No.:
- 884-2600
- Mfr. Part No.:
- LT1009IZ#PBF
- Brand:
- Linear Technology
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Linear Technology | |
| Nominal Voltage | 2.5V | |
| Package Type | TO-92 | |
| Reference Type | Fixed | |
| Initial Accuracy | ±0.2 % | |
| Mounting Type | Through Hole | |
| Topology | Shunt | |
| Maximum Output Voltage | 2.5 V | |
| Pin Count | 3 | |
| Dimensions | 4.572 x 3.556 x 4.572mm | |
| Width | 3.556mm | |
| Height | 4.572mm | |
| Length | 4.57mm | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Select all | ||
|---|---|---|
Brand Linear Technology | ||
Nominal Voltage 2.5V | ||
Package Type TO-92 | ||
Reference Type Fixed | ||
Initial Accuracy ±0.2 % | ||
Mounting Type Through Hole | ||
Topology Shunt | ||
Maximum Output Voltage 2.5 V | ||
Pin Count 3 | ||
Dimensions 4.572 x 3.556 x 4.572mm | ||
Width 3.556mm | ||
Height 4.572mm | ||
Length 4.57mm | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +85 °C | ||
- COO (Country of Origin):
- PH
Voltage Reference, 2.5V, Linear Technology
A range of 2.5V precision voltage references from Linear Technology. The range includes both series and shunt types with some devices (such as the LT1019) being capable of operating in either mode.
Initial tolerance as low as ±0.05%
Low drift with temperature
Both series and shunt types available
Low drift with temperature
Both series and shunt types available
Voltage References, Linear Technology
Linear Technology produces a wide range of series and shunt precision voltage references. Series types operate in the same manner as 3-terminal voltage regulators whilst shunt references perform in the same way as zener diodes. Linear Technology voltage references offer accuracy and low drift over time and temperature. Typical applications include precision measurement systems, power supply monitoring, current loop measurement and control systems, digital voltmeters and A/D and D/A references.
