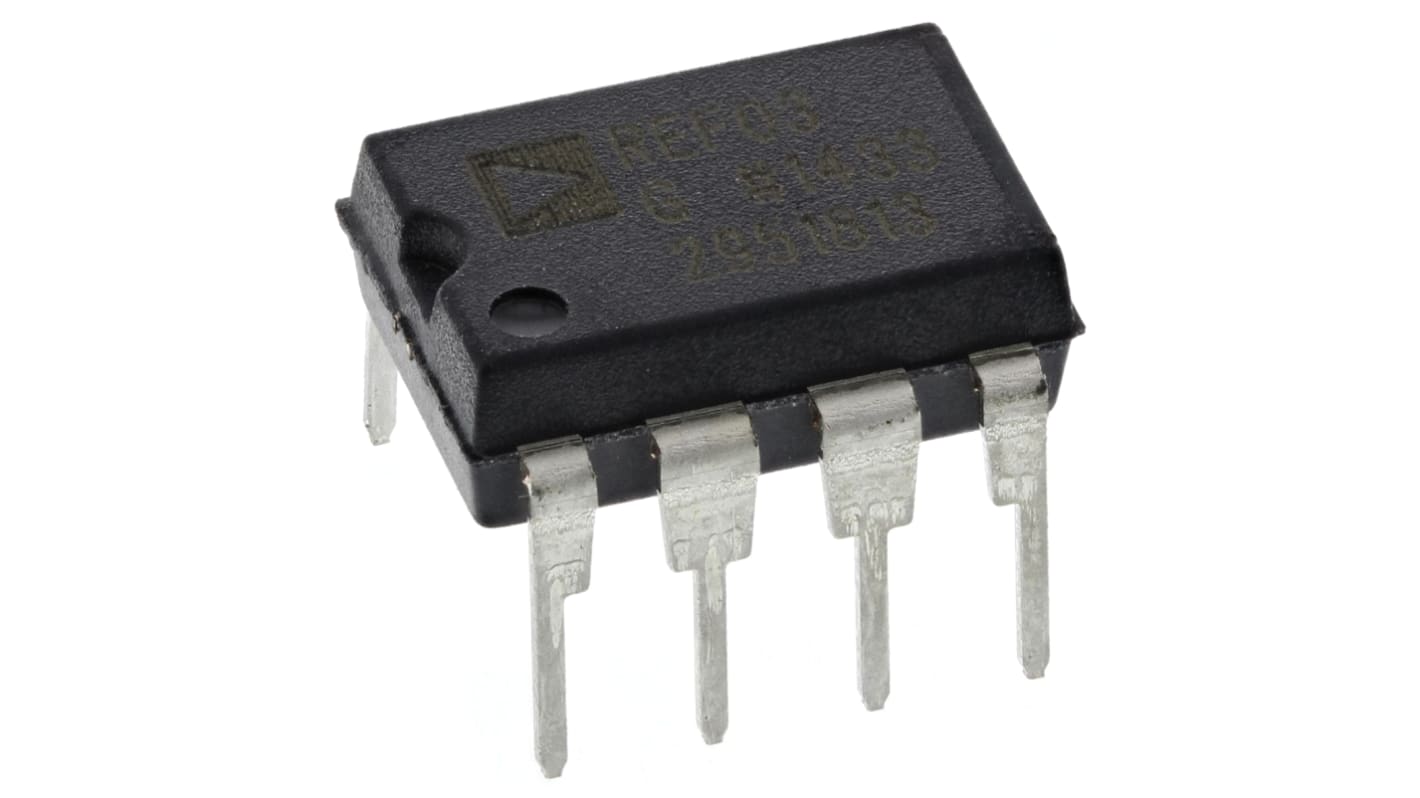

Analog Devices Fixed Series Voltage Reference 2.5V ±0.6 % 8-Pin PDIP, REF03GPZ

RS Stock No.:: 523-6535P
Mfr. Part No.:: REF03GPZ
Brand:: Analog Devices

Technical Reference (2)

Analog Devices Fixed Series Voltage Reference 2.5V ±0.6 % 8-Pin PDIP, REF03GPZ

View this category

29 In stock - FREE next working day delivery available

Price Each (Supplied in a Tube)

£4.68

(exc. VAT)

£5.62

(inc. VAT)

Units	Per unit
10 - 49	£4.68
50 - 99	£4.52
100 - 249	£3.84
250 +	£3.43

RS Stock No.:: 523-6535P
Mfr. Part No.:: REF03GPZ
Brand:: Analog Devices

Attribute	Value
Nominal Voltage	2.5V
Package Type	PDIP
Reference Type	Fixed
Initial Accuracy	±0.6 %
Mounting Type	Through Hole
Topology	Series
Maximum Output Current	10mA
Maximum Input Voltage	40 V
Minimum Output Voltage	2.495 V
Maximum Output Voltage	2.515 V
Pin Count	8
Line Regulation	50 ppm/V
Load Regulation	100 ppm/mA
Dimensions	9.27 x 7.24 x 3.43mm
Height	3.43mm
Minimum Operating Temperature	-40 °C
Width	7.24mm
Length	9.27mm
Maximum Operating Temperature	+85 °C

Analog Devices Fixed Series Voltage Reference 2.5V ±0.6 % 8-Pin PDIP, REF03GPZ

Technical Reference (2)

Voltage Reference, 2.5V, Analog Devices
