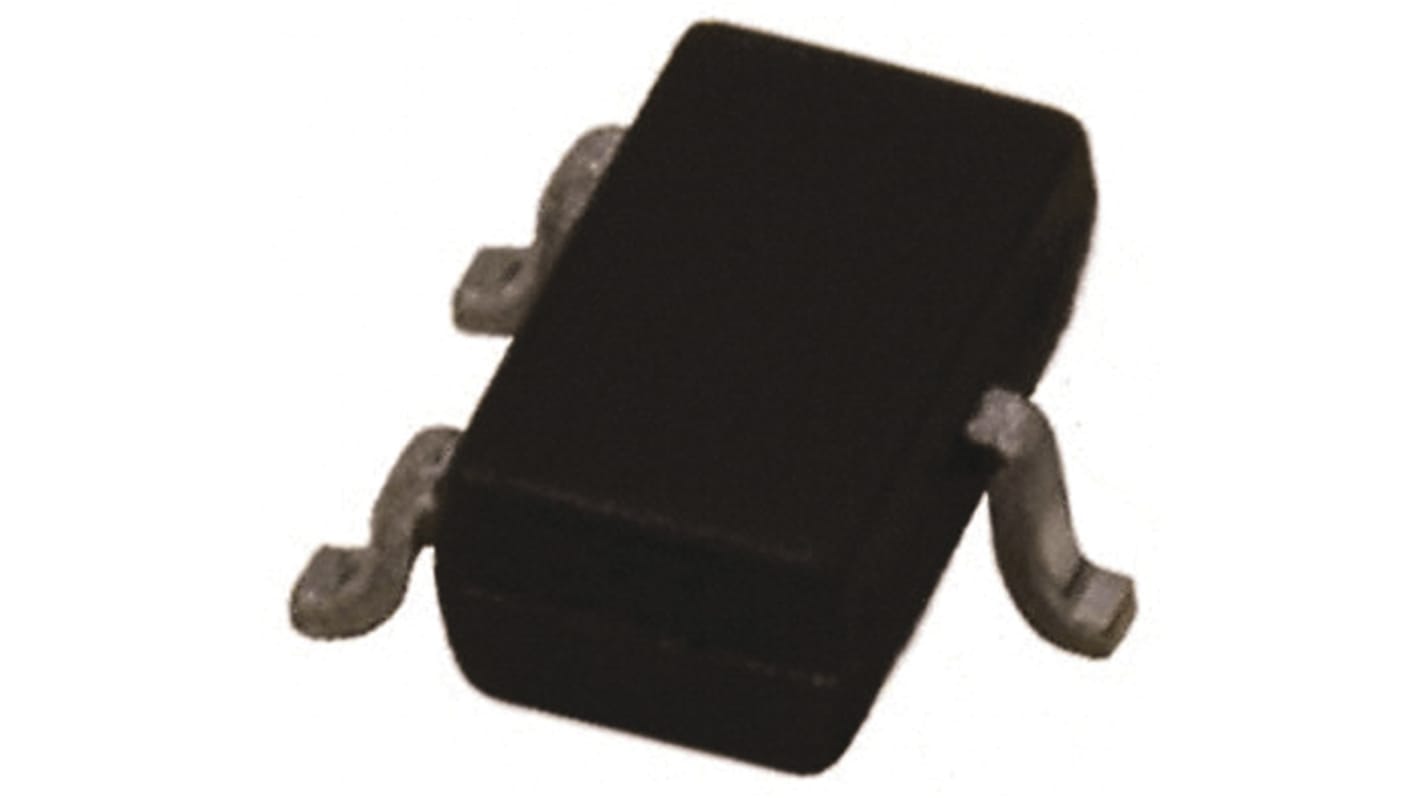

Maxim Integrated Fixed Shunt Voltage Reference 1 % 3-Pin SC-70

View all Voltage References
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
192-1263
Mfr. Part No.:
LM4040DEX3-3.3+T
Brand:
Maxim Integrated
Find similar products by selecting one or more attributes.
Select all

Brand

Maxim Integrated

Product Type

Voltage Reference

Reference Voltage

3.3V

Package Type

SC-70

Reference Type

Fixed

Output Voltage

3.3 V

Initial Accuracy

1 %

Mount Type

Surface

Temperature Coefficient

15 ppm/°C

Topology

Shunt

Output Current

15mA

Maximum Input Voltage

3.33V

Pin Count

3

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Length

2.2mm

Standards/Approvals

No

Height

1mm

Series

LM4040

Width

1.35 mm

Automotive Standard

AEC-Q100

Minimum Input Voltage

3.27V

Output Type

Fixed

COO (Country of Origin):
US
The LM4040 is a precision two-terminal shunt mode, bandgap voltage reference available in fixed reverse breakdown voltages of 2.048V, 2.500V, 3.000V, 3.3V, 4.096V, and 5.000V. Ideal for space-critical applications, the LM4040 is offered in the subminiature 3-pin SC70 surface-mount package (1.8mm x 1.8mm), 50% smaller than comparable devices in SOT23 surface-mount packages (SOT23 versions are also available). Laser-trimmed resistors ensure precise initial accuracy. With a 100ppm/°C temperature coefficient, the device is offered in four grades of initial accuracy ranging from 0.1% to 1%.

Ultra-Small 3-Pin SC70 Package

0.1% (max) Initial Accuracy

100ppm/°C (max) Temperature Coefficient Guaranteed over -40°C to +125°C Temperature Range

Wide Operating Current Range: 60μA to 15mA

No Output Capacitors Required

Tolerates Capacitive Loads

Note

Please note that any defect or non – conformance of this product must be discovered and reported to RS within 20 days of purchase.
