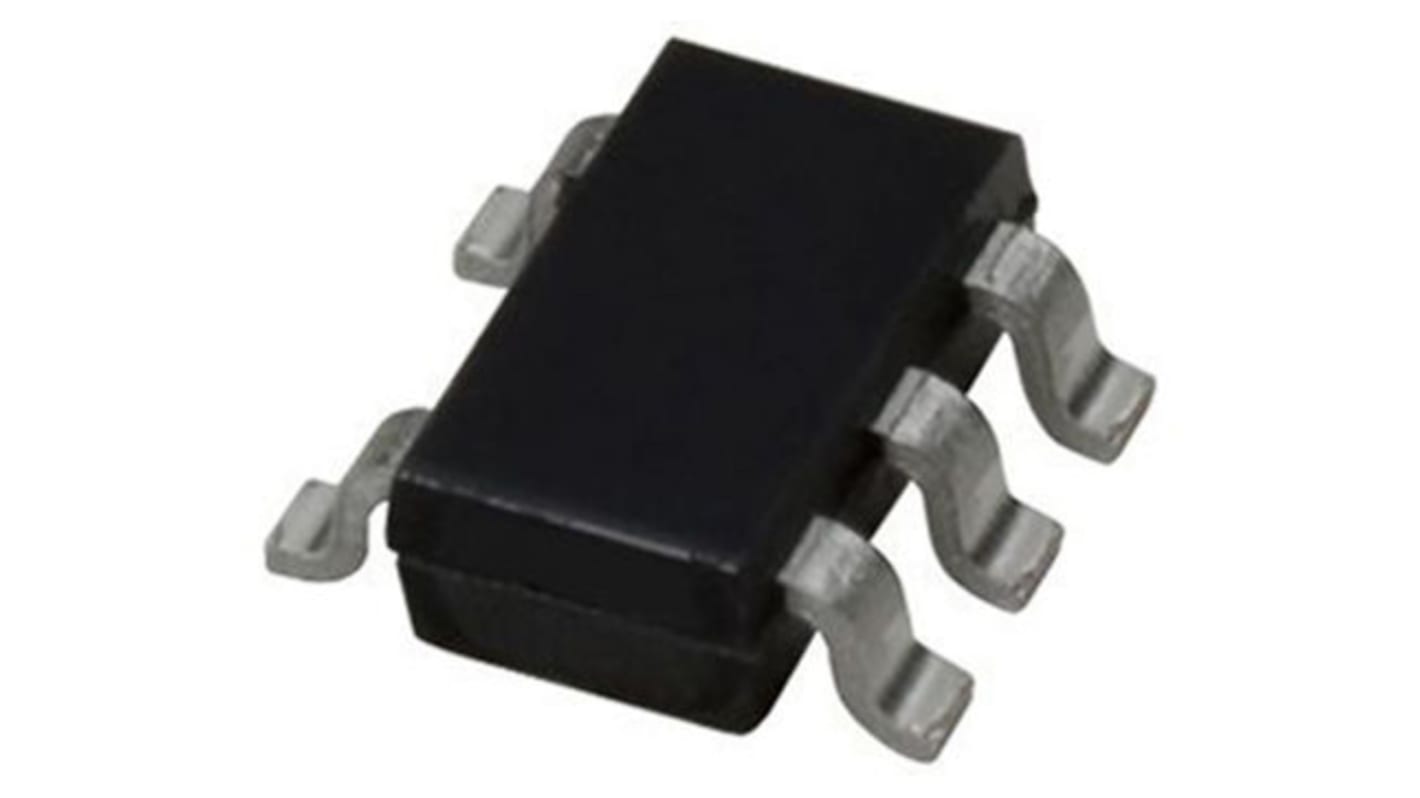

Texas Instruments Fixed Shunt Voltage Reference 3V ±1.0 % 5-Pin SC-70, LM4040D30IDCKR
- RS Stock No.:
- 162-6573
- Mfr. Part No.:
- LM4040D30IDCKR
- Brand:
- Texas Instruments
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 162-6573
- Mfr. Part No.:
- LM4040D30IDCKR
- Brand:
- Texas Instruments
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Texas Instruments | |
Nominal Voltage | 3V | |
Package Type | SC-70 | |
Reference Type | Fixed | |
Initial Accuracy | ±1.0 % | |
Mounting Type | Surface Mount | |
Topology | Shunt | |
Maximum Output Current | 80µA | |
Maximum Output Voltage | 3 V | |
Pin Count | 5 | |
Dimensions | 2.15 x 1.4 x 1mm | |
Length | 2.15mm | |
Maximum Operating Temperature | +85 °C | |
Minimum Operating Temperature | -40 °C | |
Height | 1mm | |
Width | 1.4mm | |
Select all | ||
---|---|---|
Brand Texas Instruments | ||
Nominal Voltage 3V | ||
Package Type SC-70 | ||
Reference Type Fixed | ||
Initial Accuracy ±1.0 % | ||
Mounting Type Surface Mount | ||
Topology Shunt | ||
Maximum Output Current 80µA | ||
Maximum Output Voltage 3 V | ||
Pin Count 5 | ||
Dimensions 2.15 x 1.4 x 1mm | ||
Length 2.15mm | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
Height 1mm | ||
Width 1.4mm | ||
