- RS Stock No.:
- 121-8774
- Mfr. Part No.:
- LM4040DIZ-10.0/NOPB
- Brand:
- Texas Instruments
Available to back order for despatch when stock is available
Added
Price Each (In a Box of 1800)
£0.168
(exc. VAT)
£0.202
(inc. VAT)
Units | Per unit | Per Box* |
1800 - 3600 | £0.168 | £302.40 |
5400 + | £0.164 | £295.20 |
*price indicative |
- RS Stock No.:
- 121-8774
- Mfr. Part No.:
- LM4040DIZ-10.0/NOPB
- Brand:
- Texas Instruments
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Shunt Voltage Reference, Fixed, 3V to 10V
Voltage References, Texas Instruments
Precison Fixed and Adjustable Voltage Reference ICs utilsing series, shunt or series/shunt topologies and available in both through-hole and surface mount packages. Voltage References are available with initial accuracies of ±0.02 to ±2%.
Specifications
Attribute | Value |
---|---|
Nominal Voltage | 10V |

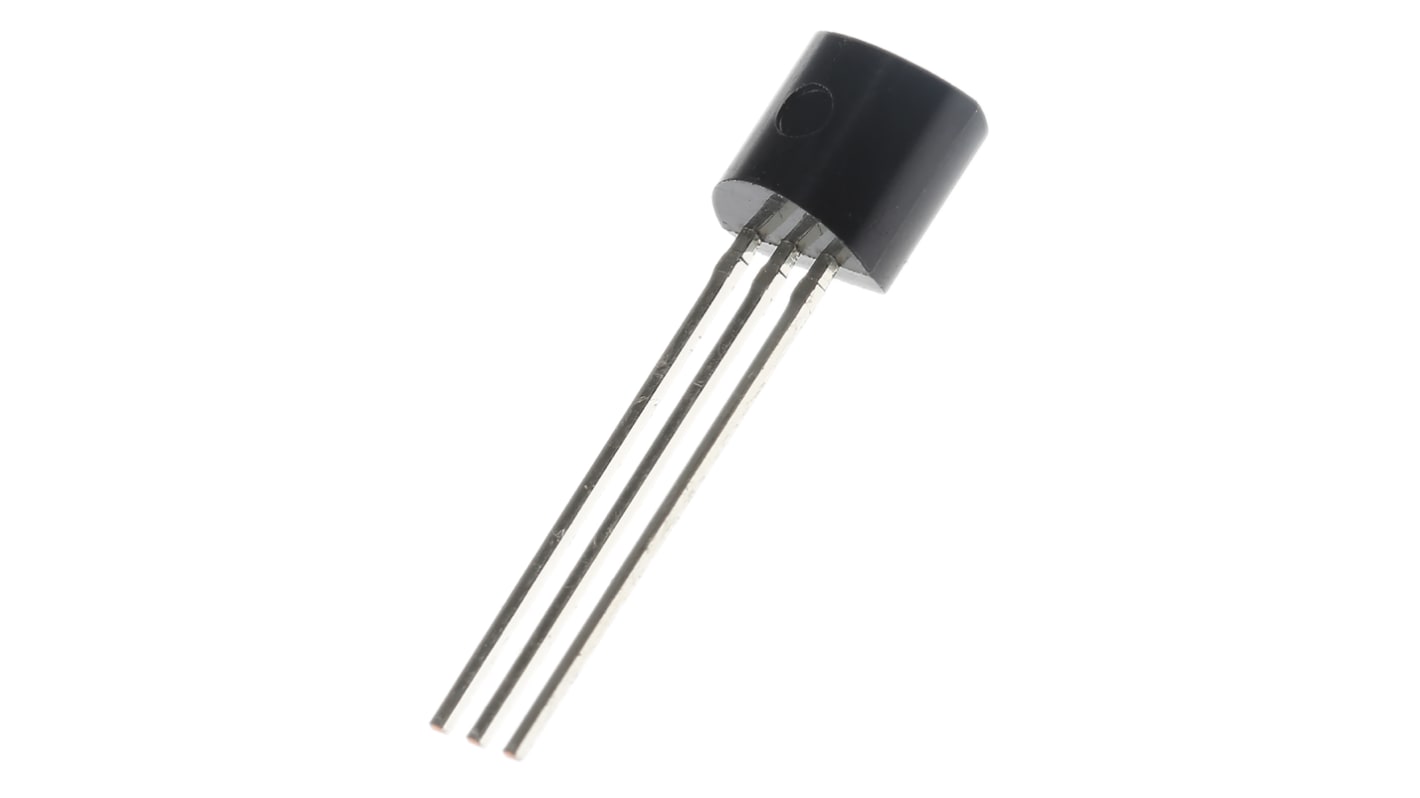

Package Type | TO-92 |
Reference Type | Fixed |
Initial Accuracy | ±1.0 % |
Mounting Type | Through Hole |
Topology | Shunt |
Maximum Output Current | 15mA |
Pin Count | 3 |
Load Regulation | 18 mV |
Dimensions | 5.2 x 4.19 x 5.2mm |
Width | 4.19mm |
Height | 5.2mm |
Length | 5.2mm |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
