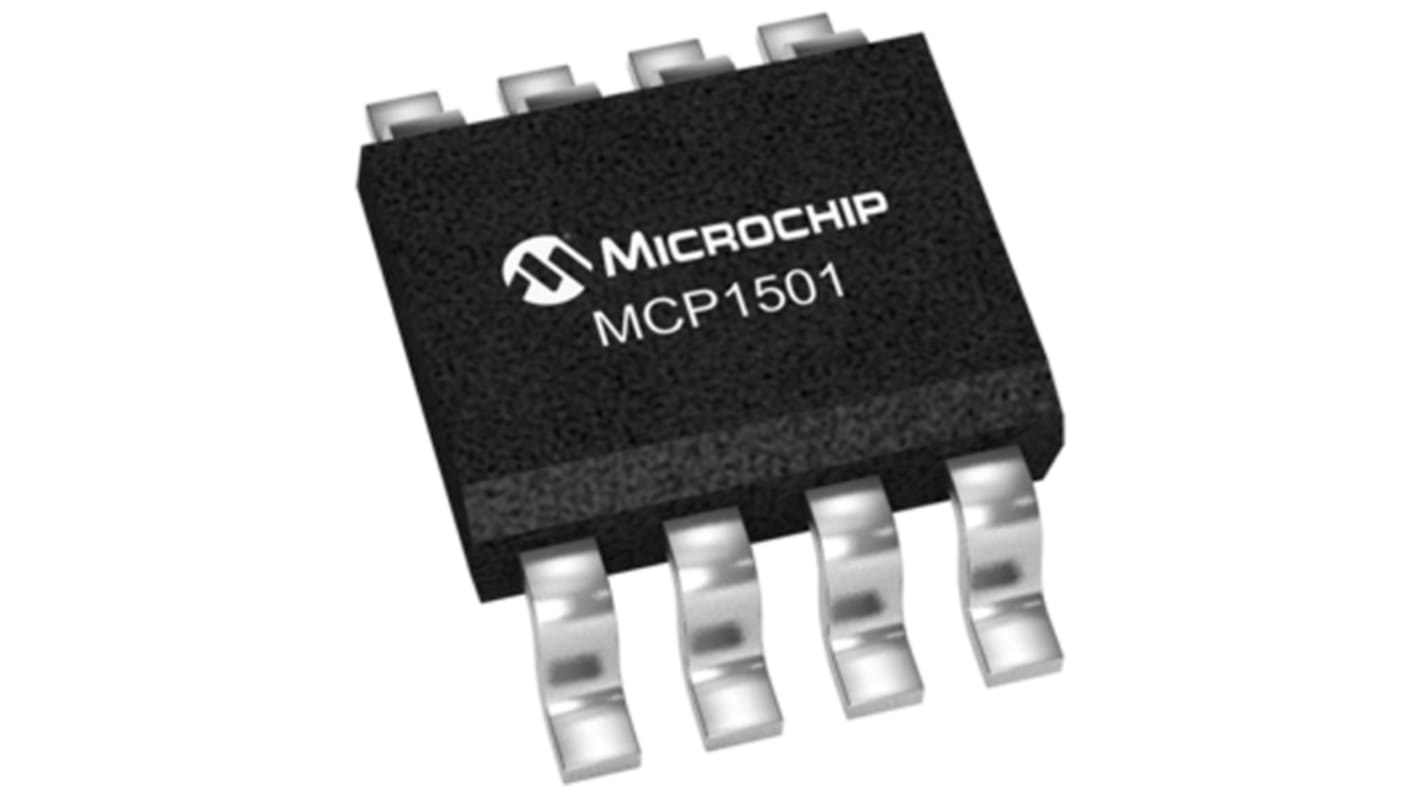

Microchip Fixed Series Voltage Reference 1.8V ±0.08 % 8-Pin SOIC, MCP1501-18E/SN
- RS Stock No.:
- 111-5570
- Mfr. Part No.:
- MCP1501-18E/SN
- Brand:
- Microchip
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 111-5570
- Mfr. Part No.:
- MCP1501-18E/SN
- Brand:
- Microchip
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Nominal Voltage | 1.8V | |
Package Type | SOIC | |
Reference Type | Fixed | |
Initial Accuracy | ±0.08 % | |
Mounting Type | Surface Mount | |
Topology | Series | |
Maximum Output Current | 30mA | |
Maximum Input Voltage | 5.5 V | |
Minimum Output Voltage | 1.79 V | |
Maximum Output Voltage | 1.8 V | |
Pin Count | 8 | |
Line Regulation | 50 ppm/V | |
Load Regulation | 40 (Sink) ppm/mA, 70 (Source) ppm/mA | |
Dimensions | 4.9 x 3.9 x 1.5mm | |
Height | 1.5mm | |
Maximum Operating Temperature | +125 °C | |
Length | 4.9mm | |
Minimum Operating Temperature | -40 °C | |
Width | 3.9mm | |
Select all | ||
---|---|---|
Brand Microchip | ||
Nominal Voltage 1.8V | ||
Package Type SOIC | ||
Reference Type Fixed | ||
Initial Accuracy ±0.08 % | ||
Mounting Type Surface Mount | ||
Topology Series | ||
Maximum Output Current 30mA | ||
Maximum Input Voltage 5.5 V | ||
Minimum Output Voltage 1.79 V | ||
Maximum Output Voltage 1.8 V | ||
Pin Count 8 | ||
Line Regulation 50 ppm/V | ||
Load Regulation 40 (Sink) ppm/mA, 70 (Source) ppm/mA | ||
Dimensions 4.9 x 3.9 x 1.5mm | ||
Height 1.5mm | ||
Maximum Operating Temperature +125 °C | ||
Length 4.9mm | ||
Minimum Operating Temperature -40 °C | ||
Width 3.9mm | ||
