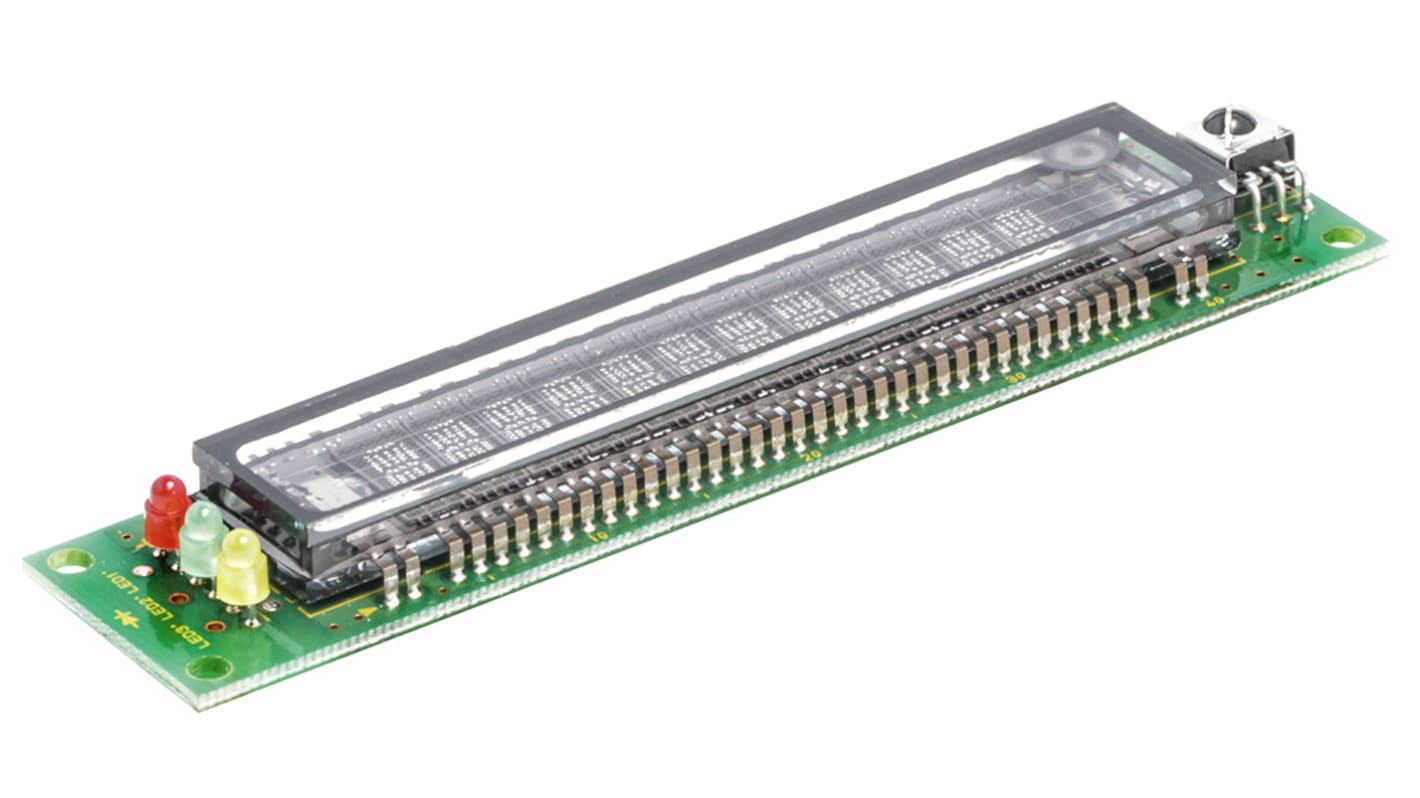

Futaba M12BY02AA VFD Display 7 x 5 1 Row x 12 Char. Addressable Seria I/F 4.5 → 5.5 V dc
- RS Stock No.:
- 665-9803P
- Mfr. Part No.:
- M12BY02AA
- Brand:
- Futaba
View all VFD Displays
Available to back order for despatch when stock is available
Price Each (Supplied in a Box)
£10.25
(exc. VAT)
£12.30
(inc. VAT)
| Units | Per unit |
| 5 - 9 | £10.25 |
| 10 - 24 | £9.94 |
| 25 - 49 | £9.64 |
| 50 + | £9.35 |
Packaging Options:
- RS Stock No.:
- 665-9803P
- Mfr. Part No.:
- M12BY02AA
- Brand:
- Futaba
Legislation and Compliance
Product Details
Alphanumeric
Intelligent alphanumeric dot-matrix vacuum fluorescent displays using an emissive technology.
Wide viewing angle
Bright blue-green fluorescent image
4, 5 or 6 luminance levels
Integral display controller, drivers and dc/dc converter
Over 220 characters and symbols
Serial or parallel interface
All of the displays use our green phosphor with 505nm peak wavelength and colour co-ordinates x=0.23, y=0.41.
This is filterable from Blue through to light red.
Bright blue-green fluorescent image
4, 5 or 6 luminance levels
Integral display controller, drivers and dc/dc converter
Over 220 characters and symbols
Serial or parallel interface
All of the displays use our green phosphor with 505nm peak wavelength and colour co-ordinates x=0.23, y=0.41.
This is filterable from Blue through to light red.
Futaba Alphanumeric VFD
Specifications
| Attribute | Value |
| Viewing Area Dimensions | 64.7 x 7mm |
| Viewing Area Height | 7mm |
| Viewing Area Width | 64.7mm |
| Display Matrix | 7 x 5 |
| Character Matrix | 1 Row by 12 Characters |
| Character Set | Addressable |
| Display Colours | Green |
| Interface Type | Seria |
| Character Rows | 1 |
| Characters per Row | 12 |
| External Dimensions | 25 x 115 x 21.9mm |
| External Height | 25mm |
| External Width | 115mm |
| External Depth | 21.9mm |
| Supply Current | 240mA |
| Minimum Supply Voltage | 4.5V dc |
| Supply Voltage Range | 4.5 → 5.5 V dc |
| Maximum Supply Voltage | 5.5V dc |
