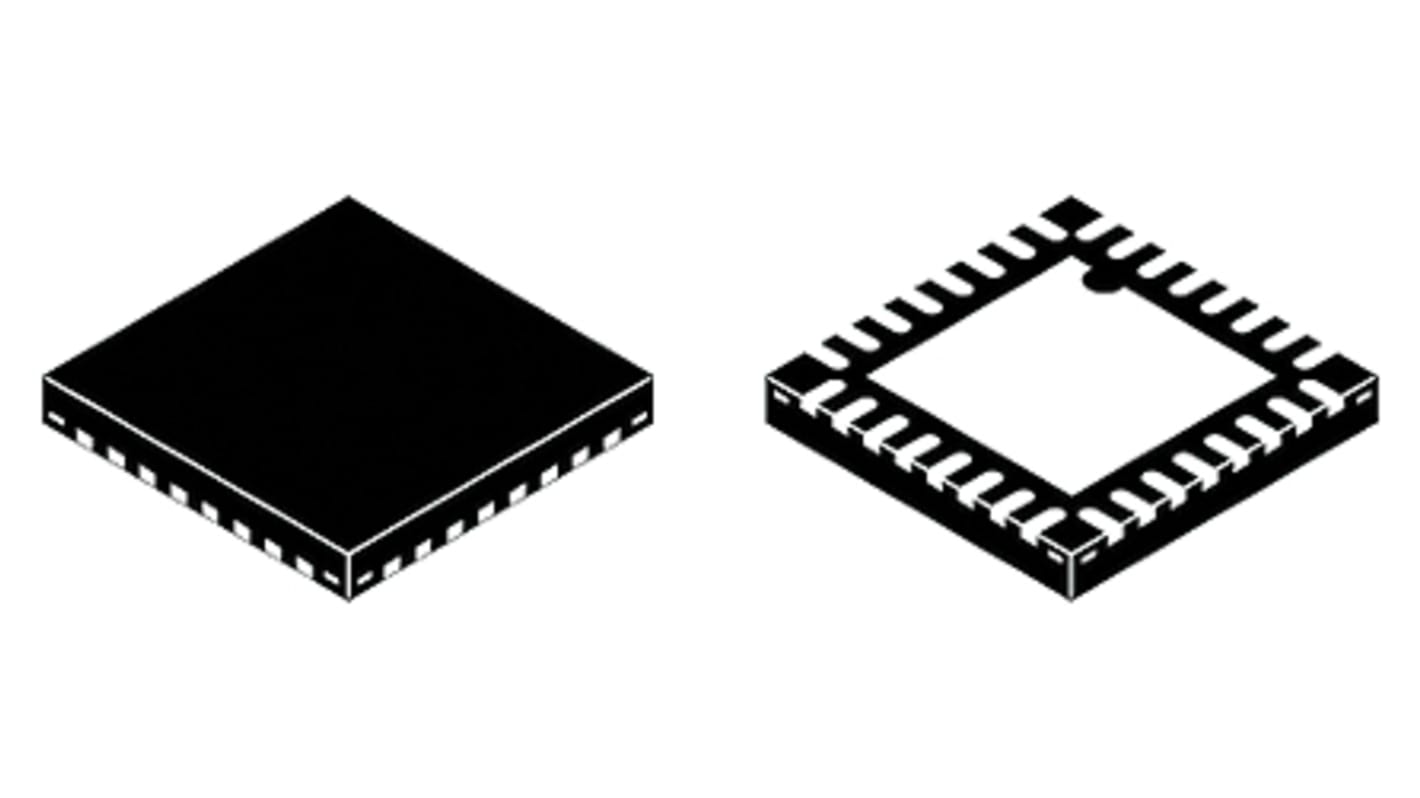

Analog Devices 6.65 → 7.65GHz VCO Oscillator, 32-Pin QFN-32 HMC507LP5E
- RS Stock No.:
- 862-6155
- Mfr. Part No.:
- HMC507LP5E
- Brand:
- Analog Devices
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 862-6155
- Mfr. Part No.:
- HMC507LP5E
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Oscillator Type | VCO | |
| Output Frequency | 6.65 → 7.65GHz | |
| Pin Count | 32 | |
| Package Type | QFN-32 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Dimensions | 5.1 x 5.1 x 1mm | |
| Height | 1mm | |
| Series | Hittite | |
| Minimum Operating Supply Voltage | 2V dc | |
| Maximum Operating Supply Voltage | 13V dc | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Oscillator Type VCO | ||
Output Frequency 6.65 → 7.65GHz | ||
Pin Count 32 | ||
Package Type QFN-32 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Dimensions 5.1 x 5.1 x 1mm | ||
Height 1mm | ||
Series Hittite | ||
Minimum Operating Supply Voltage 2V dc | ||
Maximum Operating Supply Voltage 13V dc | ||
Voltage Controlled Oscillators (VCO), Analog Devices Hittite
The range of Voltage control Oscillators (VCO) by Analog Devices Hittite range are GaAs InGaP Heterojunction Bipolar Transistors (HBT) MMIC VCOs with integrated resonators, negative resistance devices, varactor diodes, buffer amplifiers, and some feature half frequency and divide-by-4 outputs.
Voltage Controlled Oscillators (VCO)
