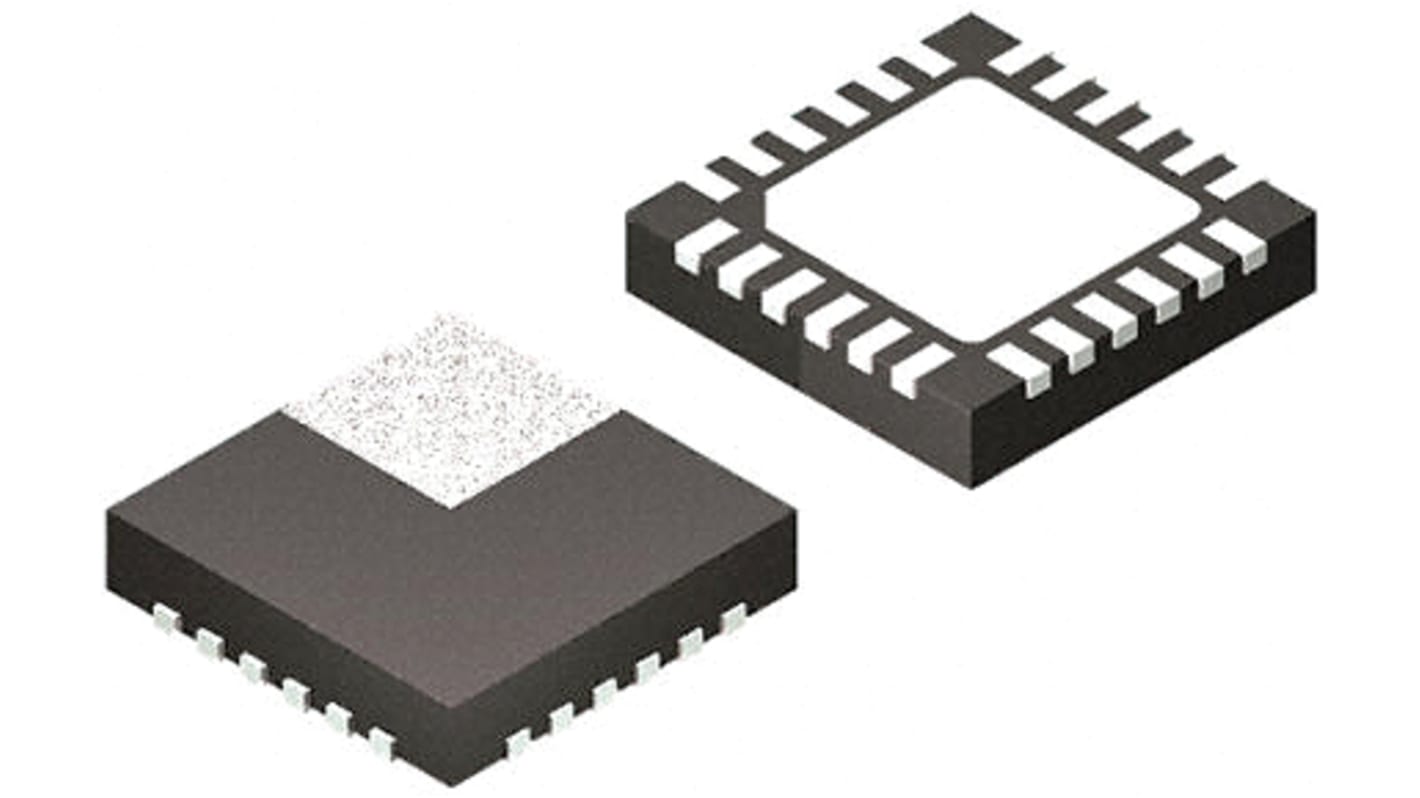

Analog Devices 2.25 → 2.5 GHz VCO Oscillator, 24-Pin QFN HMC385LP4E

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Voltage Controlled Oscillators (VCO), Analog Devices Hittite

The range of Voltage control Oscillators (VCO) by Analog Devices Hittite range are GaAs InGaP Heterojunction Bipolar Transistors (HBT) MMIC VCOs with integrated resonators, negative resistance devices, varactor diodes, buffer amplifiers, and some feature half frequency and divide-by-4 outputs.

Voltage Controlled Oscillators (VCO)

Specifications
Attribute Value
Oscillator Type VCO
Output Frequency 2.25 → 2.5 GHz
Package Type QFN
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +85 °C
Dimensions 4.1 x 4.1 x 1mm
Height 1mm
Minimum Operating Supply Voltage 2.75 V
Series Hittite
Maximum Operating Supply Voltage 3.25 V
Available to back order for despatch 19/05/2020
Price Each
£ 10.64
(exc. VAT)
£ 12.77
(inc. VAT)
Units
Per unit
1 - 4
£10.64
5 - 9
£9.79
10 - 24
£9.20
25 - 49
£8.46
50 +
£7.78
Packaging Options:
