Littelfuse, DA Metal Oxide Varistor 8 nF, Clamping 405 V, Varistor 264 V
- RS Stock No.:
- 878-1726
- Mfr. Part No.:
- V151DA40
- Brand:
- Littelfuse
Get a bulk buy discount
Add 10 more to save 2%
View bulk pricing optionsSubtotal (1 unit)*
£37.66
(exc. VAT)
£45.19
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 05 April 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 9 | £37.66 | - |
| 10 - 24 | £36.64 | 2% |
| 25 - 49 | £35.66 | 5% |
| 50 - 99 | £34.76 | 7% |
| 100 + | £33.89 | 10% |
*price indicative
- RS Stock No.:
- 878-1726
- Mfr. Part No.:
- V151DA40
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Varistor Voltage | 264 V | |
| Product Type | Metal Oxide Varistor | |
| Clamping Voltage VC | 405V | |
| Material | Metal | |
| Series | DA | |
| Diameter | 40mm | |
| Maximum AC Voltage | 150V ac | |
| Maximum Surge Current | 40kA | |
| Maximum DC Voltage | 200V dc | |
| Capacitance | 8nF | |
| Length | 62mm | |
| Minimum Operating Temperature | -55°C | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | UR, RoHS, UL 1449 | |
| Termination Style | Blade Terminal | |
| Lead Pitch | 23mm | |
| Energy Rating | 300J | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Varistor Voltage 264 V | ||
Product Type Metal Oxide Varistor | ||
Clamping Voltage VC 405V | ||
Material Metal | ||
Series DA | ||
Diameter 40mm | ||
Maximum AC Voltage 150V ac | ||
Maximum Surge Current 40kA | ||
Maximum DC Voltage 200V dc | ||
Capacitance 8nF | ||
Length 62mm | ||
Minimum Operating Temperature -55°C | ||
Pin Count 2 | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals UR, RoHS, UL 1449 | ||
Termination Style Blade Terminal | ||
Lead Pitch 23mm | ||
Energy Rating 300J | ||
Automotive Standard No | ||
Non Compliant
- COO (Country of Origin):
- IE

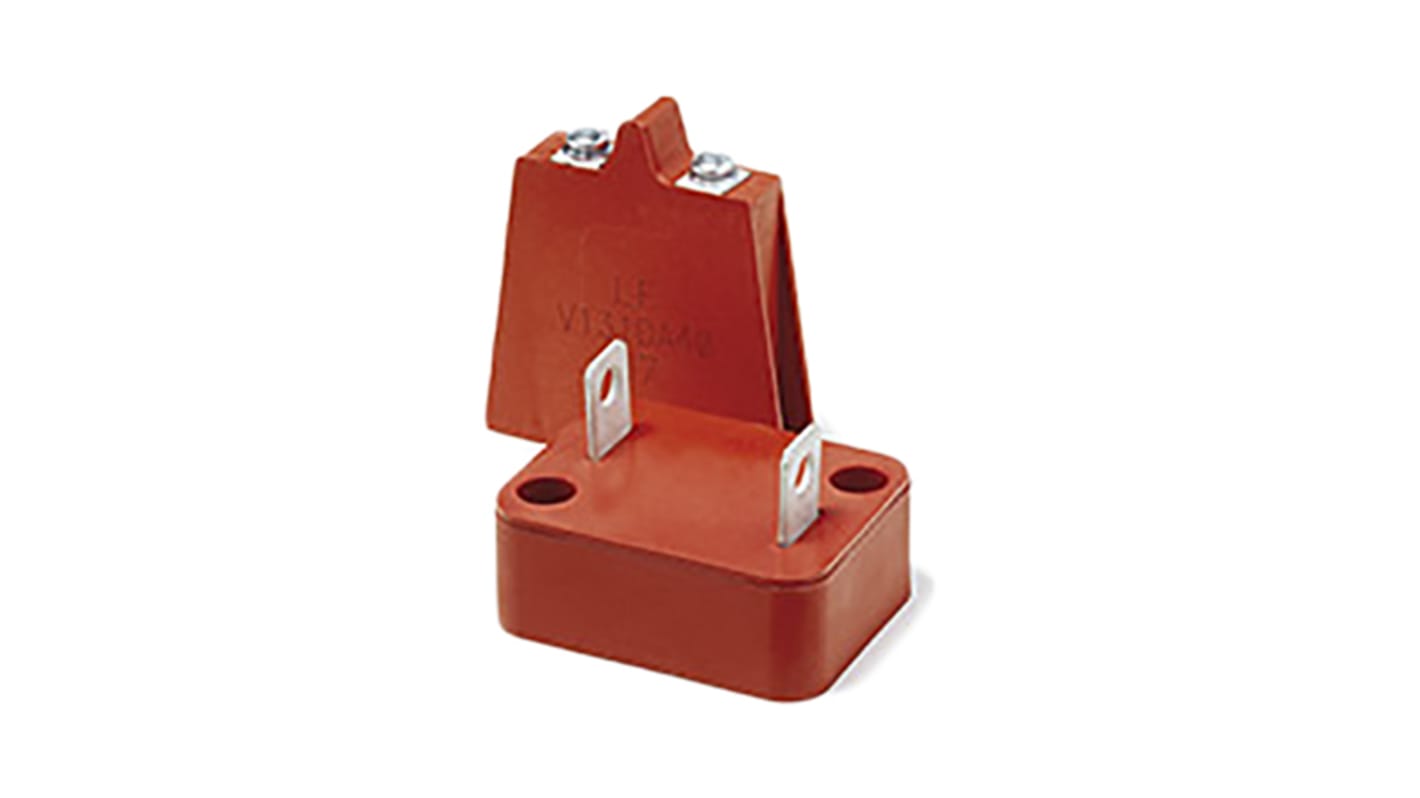

Littelfuse Metal Oxide Varistors - DA/DB Series
Littelfuse DA/DB series of MOV's are heavy duty industrial varistors that are designed to provide surge protection for motor controls and power supplies used in heavy duty equipment. Both the DA and DB Series feature improved creep and strike distance capability to minimize breakdown along the package surface design that provides complete electrical isolation of the disc sub-assembly.
Features:
DA-Screw Terminals, DB Quick Connect Push-on Connectors
RoHS compliant and Lead–free
High energy absorption capability
Wide operating voltage range
