Littelfuse, BA Metal Oxide Varistor 20nF, Clamping 340V, Varistor 225.5V
- RS Stock No.:
- 878-1707
- Mfr. Part No.:
- V131BA60
- Brand:
- Littelfuse
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 878-1707
- Mfr. Part No.:
- V131BA60
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Varistor Voltage | 225.5V | |
| Maximum AC Voltage Rating | 130V | |
| Maximum DC Voltage Rating | 175V | |
| Clamping Voltage | 340V | |
| Energy | 450J | |
| Material | Metal | |
| Series | BA | |
| Diameter | 60mm | |
| Maximum Surge Current | 50000A | |
| Capacitance | 20nF | |
| Length | 100mm | |
| Dimensions | 100 x 95 x 23.5mm | |
| Lead Pitch | 40mm | |
Select all | ||
|---|---|---|
Brand Littelfuse | ||
Varistor Voltage 225.5V | ||
Maximum AC Voltage Rating 130V | ||
Maximum DC Voltage Rating 175V | ||
Clamping Voltage 340V | ||
Energy 450J | ||
Material Metal | ||
Series BA | ||
Diameter 60mm | ||
Maximum Surge Current 50000A | ||
Capacitance 20nF | ||
Length 100mm | ||
Dimensions 100 x 95 x 23.5mm | ||
Lead Pitch 40mm | ||
Non Compliant
- COO (Country of Origin):
- IE

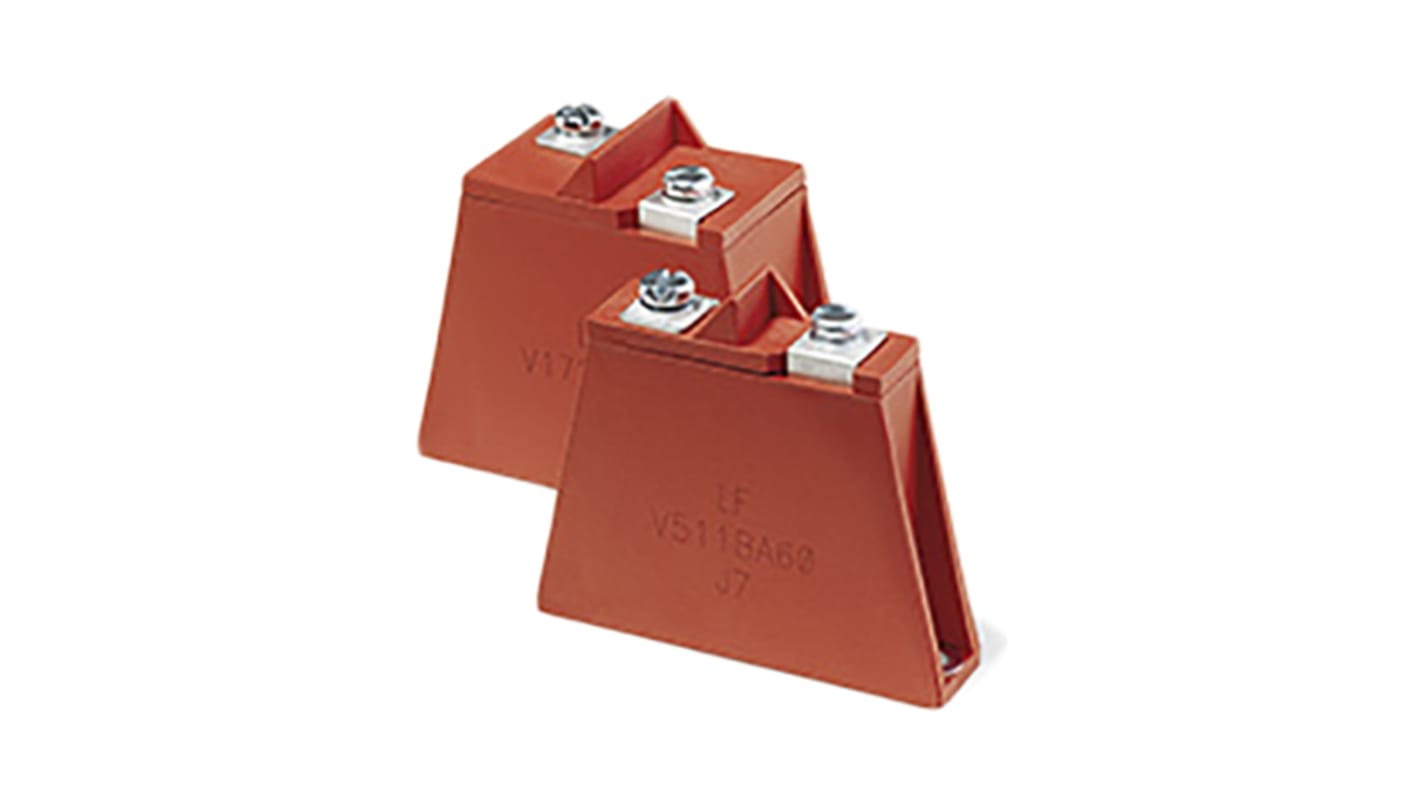

Littelfuse Metal Oxide Varistors - BA/BB Series
Littelfuse BA/BB series of MOV's are heavy duty industrial varistors that are designed to provide surge protection for motor controls and power supplies used in heavy duty equipment. Both the BA and BB Series feature improved creep and strike distance capability to minimize breakdown along the package surface design that provides complete electrical isolation of the disc sub-assembly.
Features:
Rigid terminals for secure wire contact
High energy absorption capability
Wide operating voltage range
BA Series 130V to 880V
BB Series 1100V to 2800V
RoHS compliant
Rigid terminals for secure wire contact
High energy absorption capability
Wide operating voltage range
BA Series 130V to 880V
BB Series 1100V to 2800V
RoHS compliant
