Bourns, SV Varistor 90 pF 600 A, Clamping 680 V, Varistor 430 V
- RS Stock No.:
- 245-9278
- Mfr. Part No.:
- SV275K5BL1
- Brand:
- Bourns
Bulk discount available
Subtotal (1 pack of 10 units)*
£2.94
(exc. VAT)
£3.53
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 20,680 unit(s) shipping from 13 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.294 | £2.94 |
| 100 - 190 | £0.196 | £1.96 |
| 200 - 490 | £0.175 | £1.75 |
| 500 + | £0.158 | £1.58 |
*price indicative
- RS Stock No.:
- 245-9278
- Mfr. Part No.:
- SV275K5BL1
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Varistor | |
| Varistor Voltage | 430 V | |
| Packaging | Bulk | |
| Clamping Voltage VC | 680V | |
| Clamping Current | 600A | |
| Mount Type | Through Hole | |
| Series | SV | |
| Maximum AC Voltage | 275V ac | |
| Maximum Surge Current | 600A | |
| Maximum DC Voltage | 350V dc | |
| Capacitance | 90pF | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 2 | |
| Length | 9.5mm | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Termination Style | Solder | |
| Thickness | 5.6mm | |
| Lead Pitch | 5mm | |
| Automotive Standard | AEC-Q200 | |
| Energy Rating | 20J | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Varistor | ||
Varistor Voltage 430 V | ||
Packaging Bulk | ||
Clamping Voltage VC 680V | ||
Clamping Current 600A | ||
Mount Type Through Hole | ||
Series SV | ||
Maximum AC Voltage 275V ac | ||
Maximum Surge Current 600A | ||
Maximum DC Voltage 350V dc | ||
Capacitance 90pF | ||
Minimum Operating Temperature -40°C | ||
Pin Count 2 | ||
Length 9.5mm | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Termination Style Solder | ||
Thickness 5.6mm | ||
Lead Pitch 5mm | ||
Automotive Standard AEC-Q200 | ||
Energy Rating 20J | ||
- COO (Country of Origin):
- SI

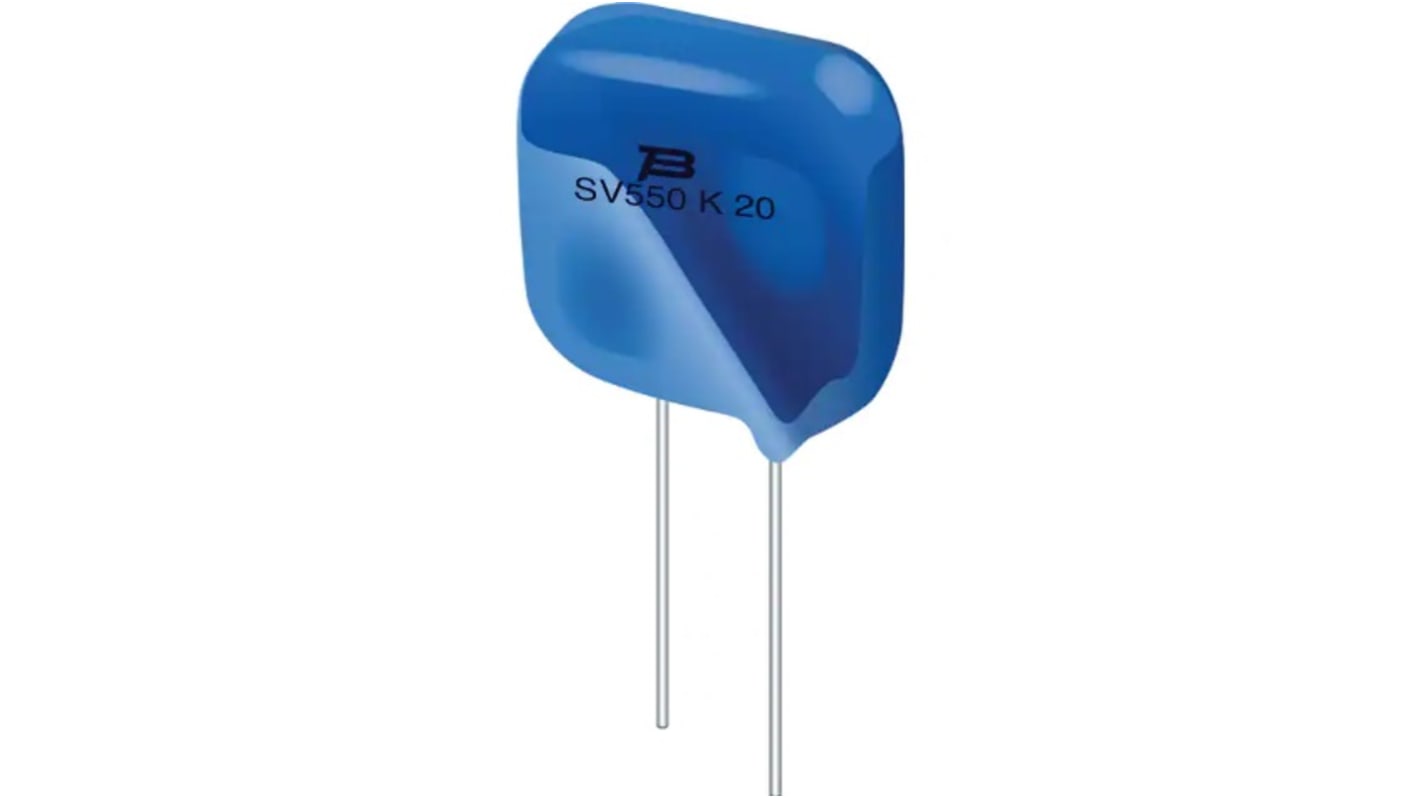

The Bourns SV series is lead style epoxy coated square or rectangular shaped varistor its offers both standard and custom options. It has h extremely high current and energy capabilities and a low clamping voltage, providing an increased level of protection for the transients expected in telecommunication and AC power networks.
Smaller nominal dimensions than disc varistor
Low clamping voltage
Operating ambient temperature range from -40°C to 85°C
