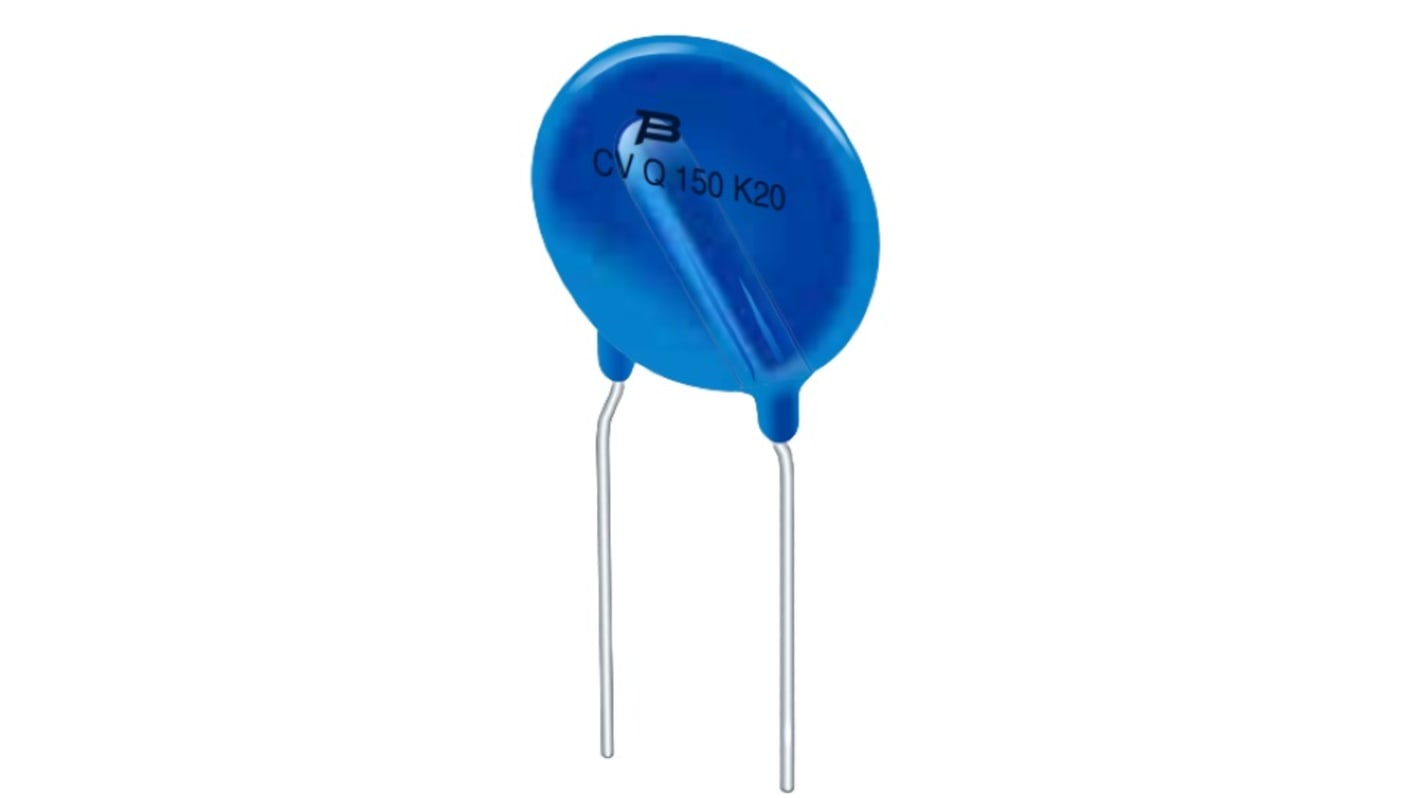

Bourns, CVQ Disc Varistor 280 pF 3500 A, Clamping 775 V, Varistor 470 V
- RS Stock No.:
- 245-9116
- Mfr. Part No.:
- CVQ300K10BL1
- Brand:
- Bourns
Subtotal (1 bag of 500 units)*
£85.50
(exc. VAT)
£102.50
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 28 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 500 + | £0.171 | £85.50 |
*price indicative
- RS Stock No.:
- 245-9116
- Mfr. Part No.:
- CVQ300K10BL1
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Varistor Voltage | 470 V | |
| Product Type | Disc Varistor | |
| Packaging | Bulk | |
| Clamping Voltage VC | 775V | |
| Clamping Current | 3500A | |
| Mount Type | Through Hole | |
| Series | CVQ | |
| Maximum AC Voltage | 300V ac | |
| Maximum Surge Current | 3500A | |
| Maximum DC Voltage | 385V dc | |
| Capacitance | 280pF | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -40°C | |
| Length | 15mm | |
| Maximum Operating Temperature | 85°C | |
| Termination Style | Solder | |
| Standards/Approvals | RoHS | |
| Thickness | 6.1mm | |
| Automotive Standard | AEC-Q200 | |
| Lead Pitch | 7.5mm | |
| Energy Rating | 93J | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Varistor Voltage 470 V | ||
Product Type Disc Varistor | ||
Packaging Bulk | ||
Clamping Voltage VC 775V | ||
Clamping Current 3500A | ||
Mount Type Through Hole | ||
Series CVQ | ||
Maximum AC Voltage 300V ac | ||
Maximum Surge Current 3500A | ||
Maximum DC Voltage 385V dc | ||
Capacitance 280pF | ||
Pin Count 2 | ||
Minimum Operating Temperature -40°C | ||
Length 15mm | ||
Maximum Operating Temperature 85°C | ||
Termination Style Solder | ||
Standards/Approvals RoHS | ||
Thickness 6.1mm | ||
Automotive Standard AEC-Q200 | ||
Lead Pitch 7.5mm | ||
Energy Rating 93J | ||
- COO (Country of Origin):
- SI
The Bourns CVQ series of transient surge suppressors is the extended version of CV series disc shaped varistor. This series provides an increased level of protection for the transients expected in telecommunication and AC power networks.
Broad range of current and energy handling capabilities
Surge protection
Fast response time
Operating ambient temperature range from -40°C to 85°C
