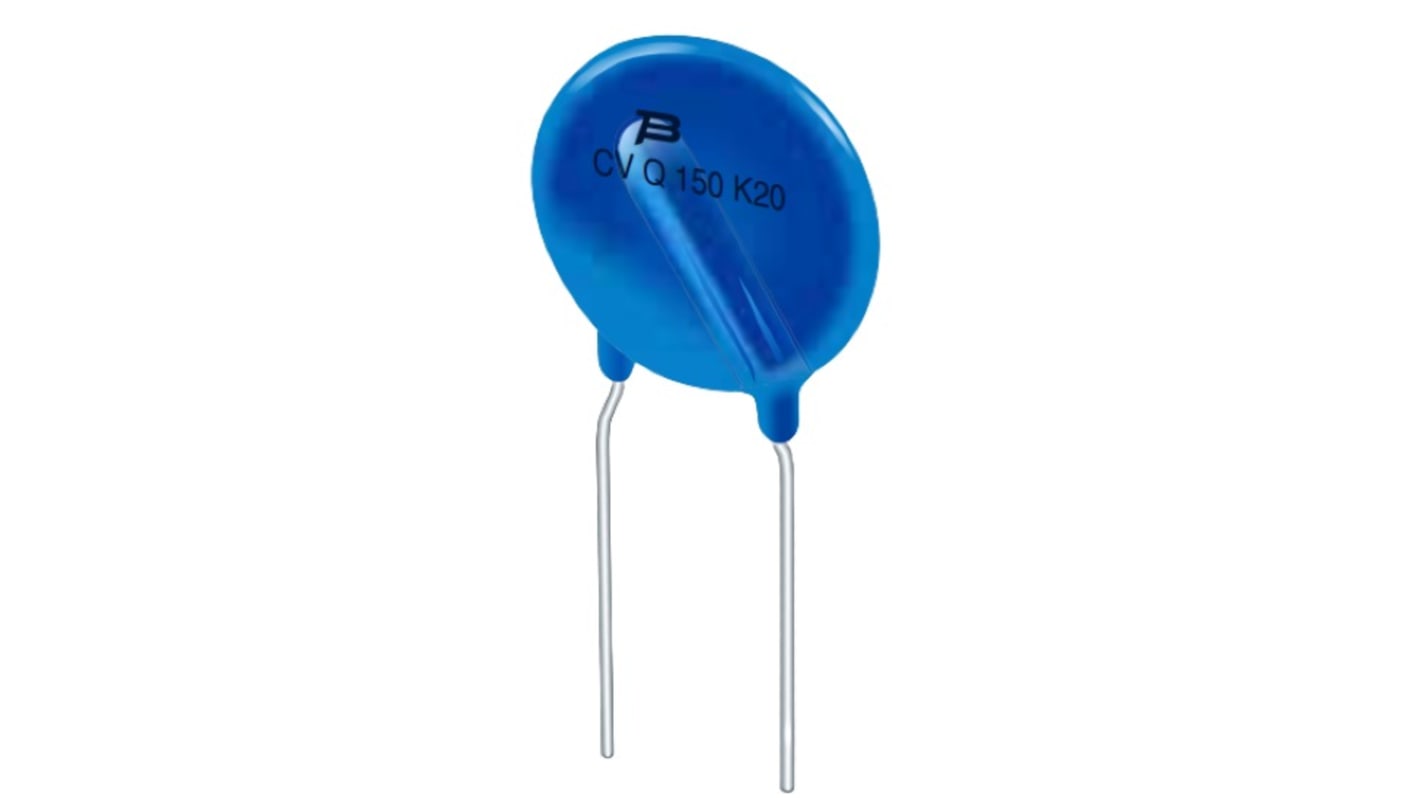

Bourns, CVQ Disc Varistor 900 pF 12000 A, Clamping 710 V, Varistor 430 V, Disc (20 mm)

View all Varistors

Subtotal (1 bag of 200 units)*

£115.80

(exc. VAT)

£139.00

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
In Stock
  • 4,600 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
200 +£0.579£115.80

*price indicative

RS Stock No.:
245-9110
Mfr. Part No.:
CVQ275K20BL1
Brand:
Bourns
Find similar products by selecting one or more attributes.
Select all

Brand

Bourns

Product Type

Disc Varistor

Varistor Voltage

430 V

Clamping Voltage VC

710V

Packaging

Tape & Reel

Clamping Current

12000A

Mount Type

Through Hole

Series

CVQ

Diameter

22.5 mm

Maximum AC Voltage

275V ac

Maximum Surge Current

12000A

Maximum DC Voltage

350V dc

Capacitance

900pF

Minimum Operating Temperature

-40°C

Pin Count

2

Length

26mm

Maximum Operating Temperature

85°C

Thickness

6.3mm

Termination Style

Solder

Standards/Approvals

UL, RoHS

Package/Case

Disc (20 mm)

Automotive Standard

AEC-Q200

Energy Rating

330J

COO (Country of Origin):
SI
The Bourns CVQ series of transient surge suppressors is the extended version of CV series disc shaped varistor. This series provides an increased level of protection for the transients expected in telecommunication and AC power networks.

Broad range of current and energy handling capabilities

Surge protection

Fast response time

Operating ambient temperature range from -40°C to 85°C
