Bourns, IsoMOV Metal Oxide Varistor 40 pF 100 A, Clamping 1400 V, Varistor 230 V, Bulk
- RS Stock No.:
- 236-5164
- Mfr. Part No.:
- DK-ISOMOV-01
- Brand:
- Bourns
Bulk discount available
Subtotal (1 unit)*
£19.38
(exc. VAT)
£23.26
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £19.38 |
| 5 - 9 | £18.01 |
| 10 + | £17.02 |
*price indicative
- RS Stock No.:
- 236-5164
- Mfr. Part No.:
- DK-ISOMOV-01
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Varistor Voltage | 230 V | |
| Product Type | Metal Oxide Varistor | |
| Packaging | Reel | |
| Clamping Voltage VC | 1400V | |
| Clamping Current | 100A | |
| Mount Type | Through Hole | |
| Series | IsoMOV | |
| Maximum AC Voltage | 555V ac | |
| Maximum DC Voltage | 745V dc | |
| Maximum Surge Current | 8000A | |
| Capacitance | 40pF | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Thickness | 1mm | |
| Standards/Approvals | IEC 61000-4-5, RoHS, IEEE 62.41, CSA C22.2 No. 269.4-17, IEC 60286-2:2015, UL 1449-4th Ed. Type 4 CA, UL | |
| Depth | 8.9mm | |
| Termination Style | In Line Leads | |
| Package/Case | Bulk | |
| Lead Pitch | 10mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Varistor Voltage 230 V | ||
Product Type Metal Oxide Varistor | ||
Packaging Reel | ||
Clamping Voltage VC 1400V | ||
Clamping Current 100A | ||
Mount Type Through Hole | ||
Series IsoMOV | ||
Maximum AC Voltage 555V ac | ||
Maximum DC Voltage 745V dc | ||
Maximum Surge Current 8000A | ||
Capacitance 40pF | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Thickness 1mm | ||
Standards/Approvals IEC 61000-4-5, RoHS, IEEE 62.41, CSA C22.2 No. 269.4-17, IEC 60286-2:2015, UL 1449-4th Ed. Type 4 CA, UL | ||
Depth 8.9mm | ||
Termination Style In Line Leads | ||
Package/Case Bulk | ||
Lead Pitch 10mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CR

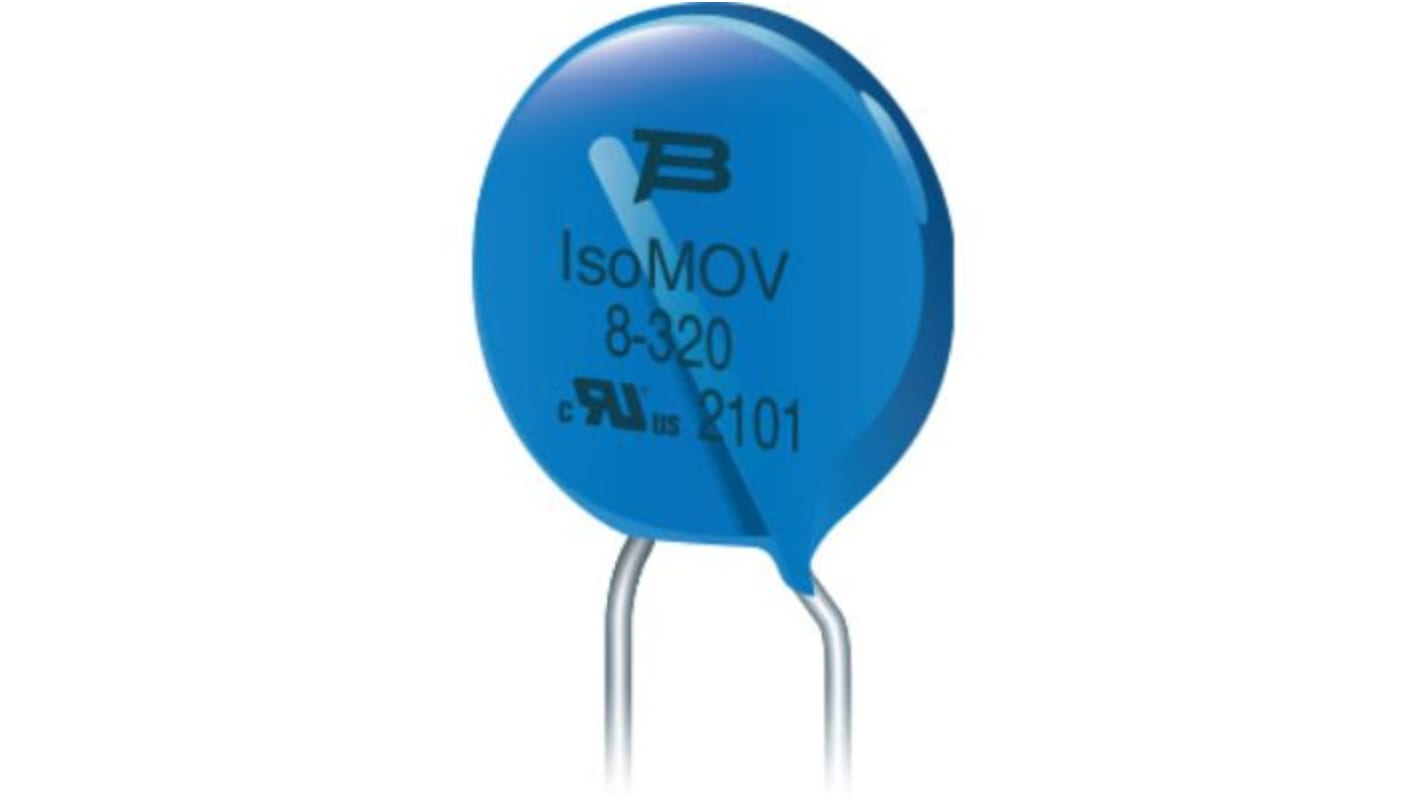

The Bourns IsoMOV series varistor introduces hybrid technology that combines the breakthrough surge performance of EdgMOV protection devices with an integrated Gas Discharge Tube (GDT) isolation structure to create the innovative hybrid protection component. By combining the best features of both MOV and GDT technologies into a single component, it achieves high performance as a long life protector with lower capacitance, very low leakage and superb energy handling density.
High energy handling density
Hybrid (MOV and GDT) design
Extended temperature range
Ring-wave tolerant
Low capacitance
UL recognized
RoHS compliant
